Three connectors of two different size and colour are used for the engine ECM.
Two connectors have 33 pins and one connector is coloured black and the other grey.
One connector has 39 pins and is coloured black.
Note the position of the three electrical connectors for installation.
3. Disconnect the two accessible electrical connectors (see Electrical Connectors) and
manoeuvre the engine ECU rearwards to access the third connector.
4. Disconnect the third grey connector and remove the engine ECU.

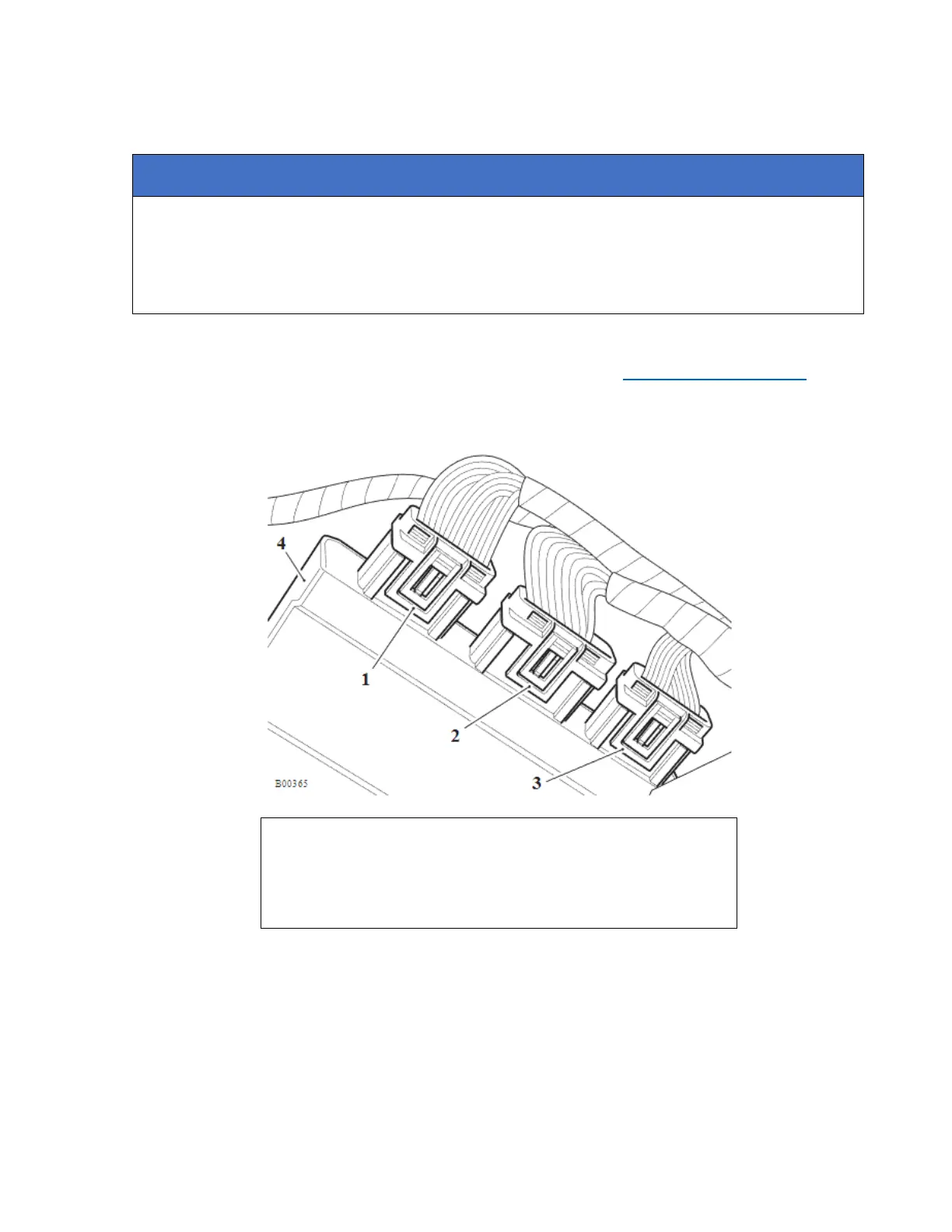

1. Connector B (33 pin connector)
2. Connector A (39 pin connector)
3. Connector C (33 pin connector Grey)
4. Engine ECM
