5. Remove and discard the two O-rings from the gear position sensor.
Gear Position Sensor – Installation
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
1. Fit two new O-rings to the gear position sensor.
2. Lubricate the new O-rings with a proprietary temporary rubber lubricant (at the
factory P-80 is used).
3. Route the gear position sensor as noted for removal and connect to the main
harness.

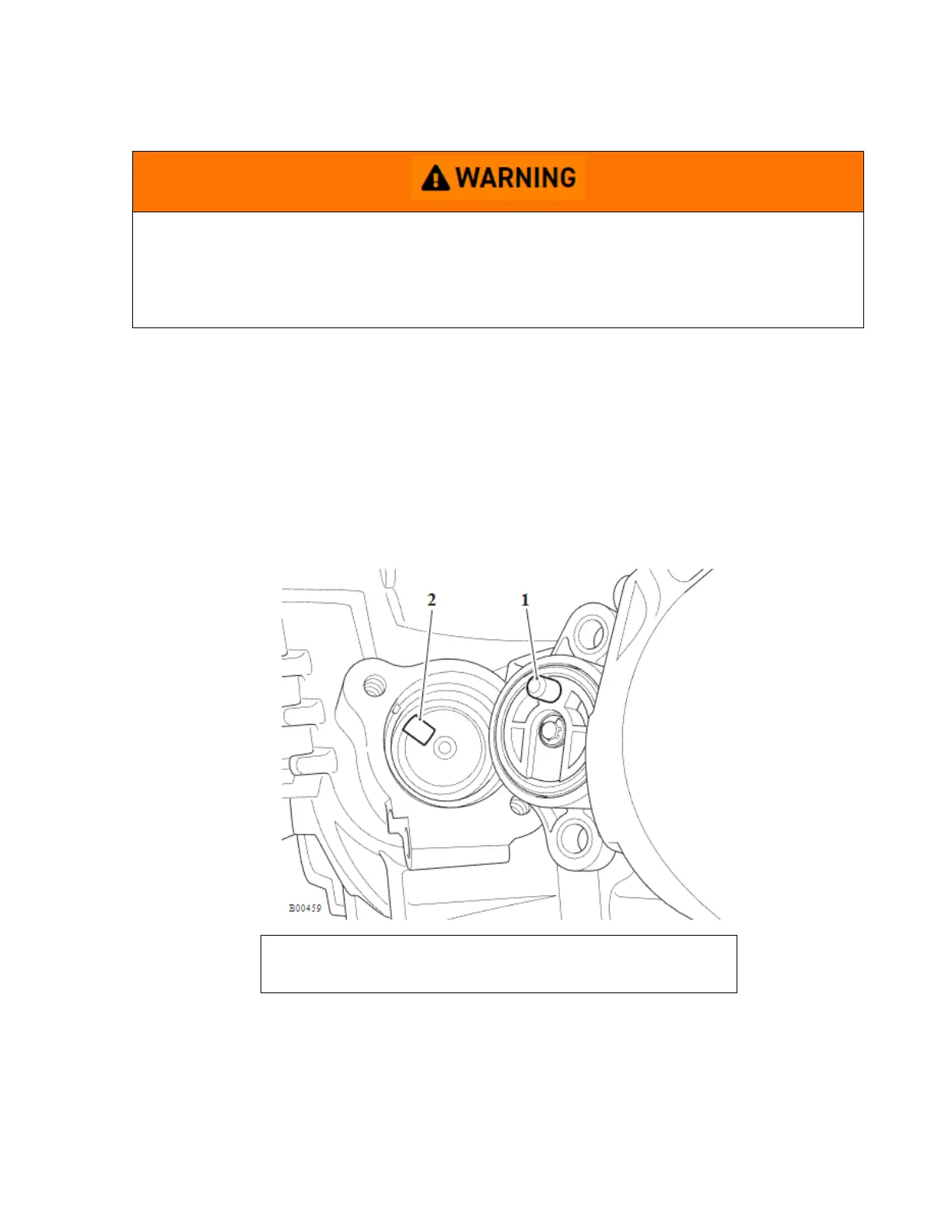

4. Fit the gear position sensor to the engine. Make sure that the locating pin on the
sensor fits into the hole in the end of the gear selector drum.
1. Locating pin
2. Hole
5. Fit the gear position sensor fixings and tighten to 10 Nm.
6. Fit the starter motor cover tighten the M6 x 20 mm fixings to 9 Nm.
