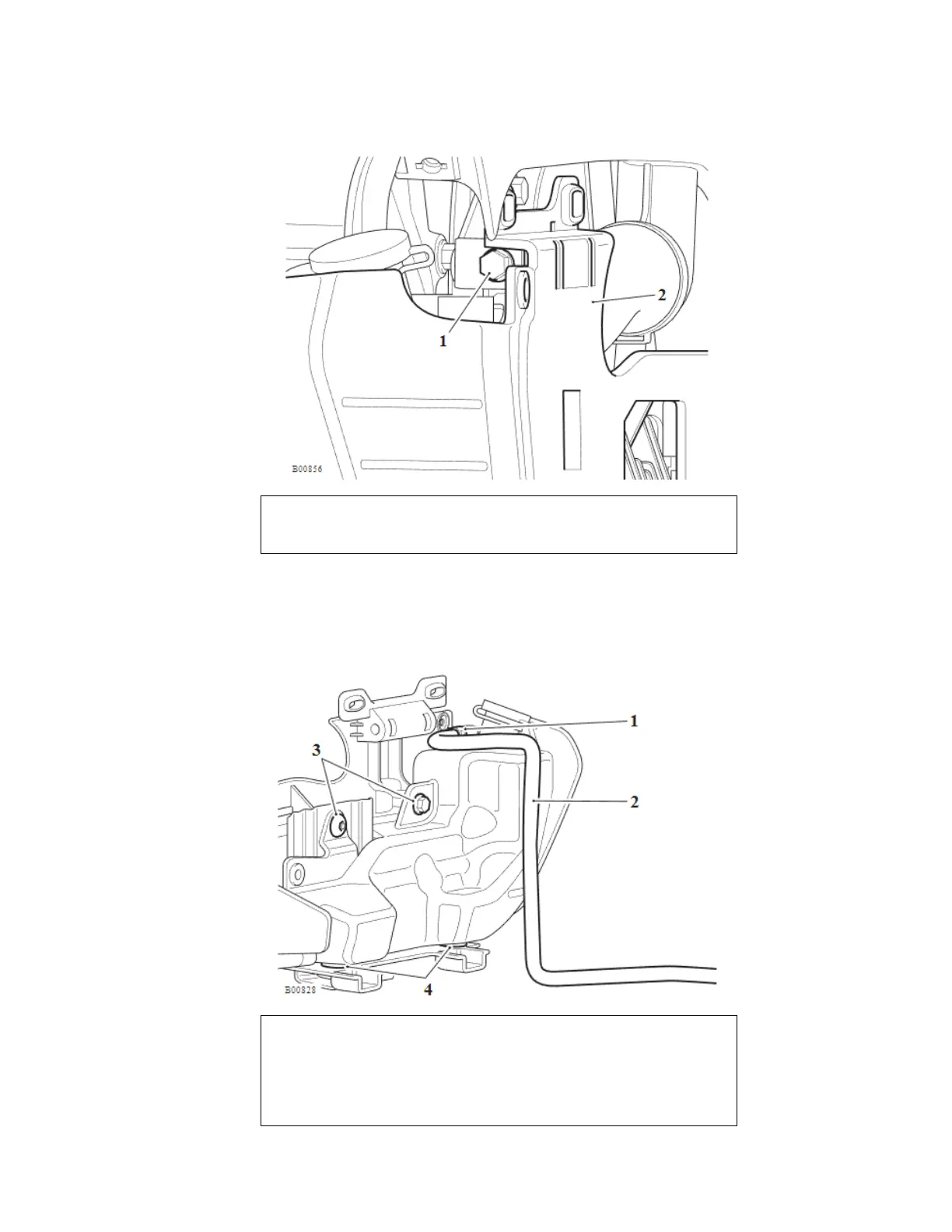

4. Release the lower cowl upper fixing and detach the lower cowl assembly from the
motorcycle.
1. Fixing
2. Lower cowl assembly
5. Release the clamp and detach the coolant expansion hose from the top of the
expansion tank.
6. Release the two fixings, lift the coolant expansion tank upwards to release the lower
locating lugs and remove.
1. Clamp
2. Hose
3. Fixings
4. Locating lugs position
