909

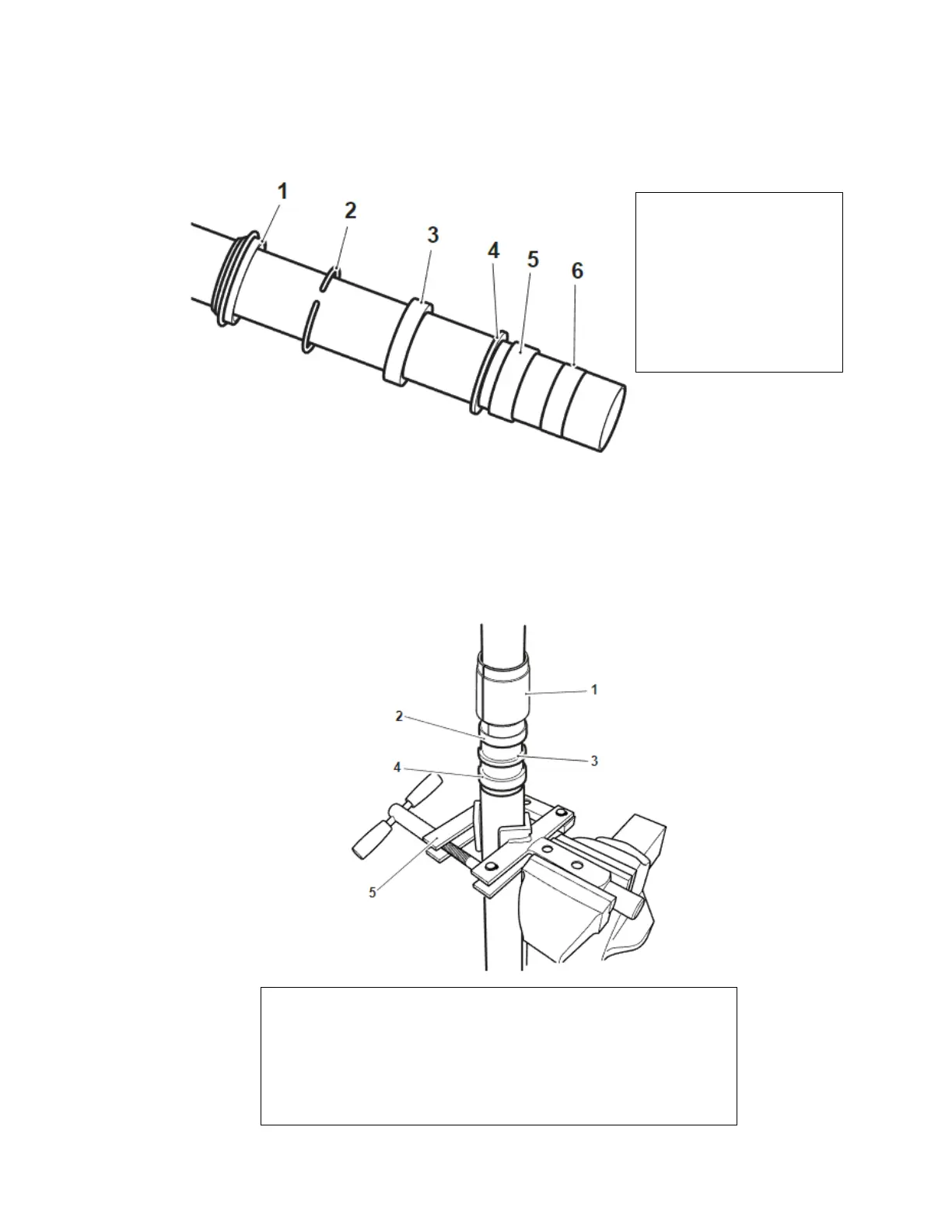

4. Position the seals and bushes to the inner tube as noted during removal. Make
sure the oil seal (item 3) is positioned with the text end facing the circlip (item 2).
Use a new circlip.
5. Using a suitable tool, fit the upper bush to the fork inner tube.
6. Position the inner tube assembly to the outer, ensuring that the oil and dust seal
lips do not become damaged.
7. Use the narrow end of service tool T3880183 to guide the lower bush, washer and
oil seal into position.
1. T3880183 - Fork Seal Tool, 47 mm
2. Oil seal
3. Washer
4. Lower bush
5. T3880171 - Fork Holding Tool
