The switch housing electrical connections are recessed into the switch housing body.
To aid orientation, there are coloured dots on each connector. The coloured dots
identify the bottom face of the connector.
When inserting the connectors, carefully locate the connectors into their sockets, then
use a suitable tool to push the connectors fully home. An audible click can be heard
when the connectors are fully inserted.
Do not use sharp tools, such as a flat bladed screw driver, to insert the connectors.
14. Fit the switch housing connectors.
15. Using a new cable tie, secure the switch housing wiring harness to the left hand
switch housing.

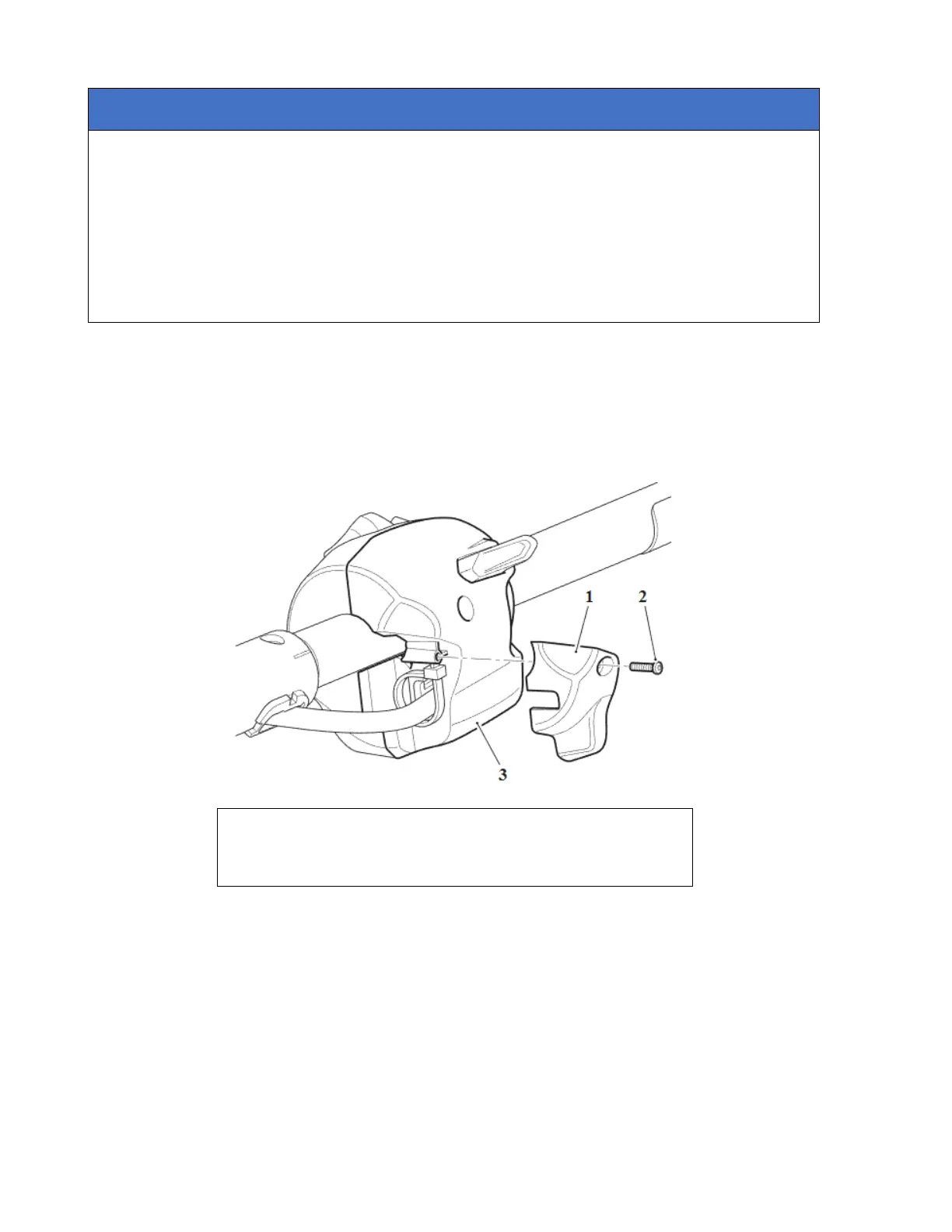

16. Fit the cover to the left hand switch housing and tighten its fixing to 1 Nm.
1. Fixing
2. Cover
3. Switch housing
17. Position a new retaining clip into the handlebar in the orientation noted during
removal and slide the left hand switch housing onto the handlebar.
