Triumph Street Triple R 2014 User Manual

Maintenance and Adjustment
105

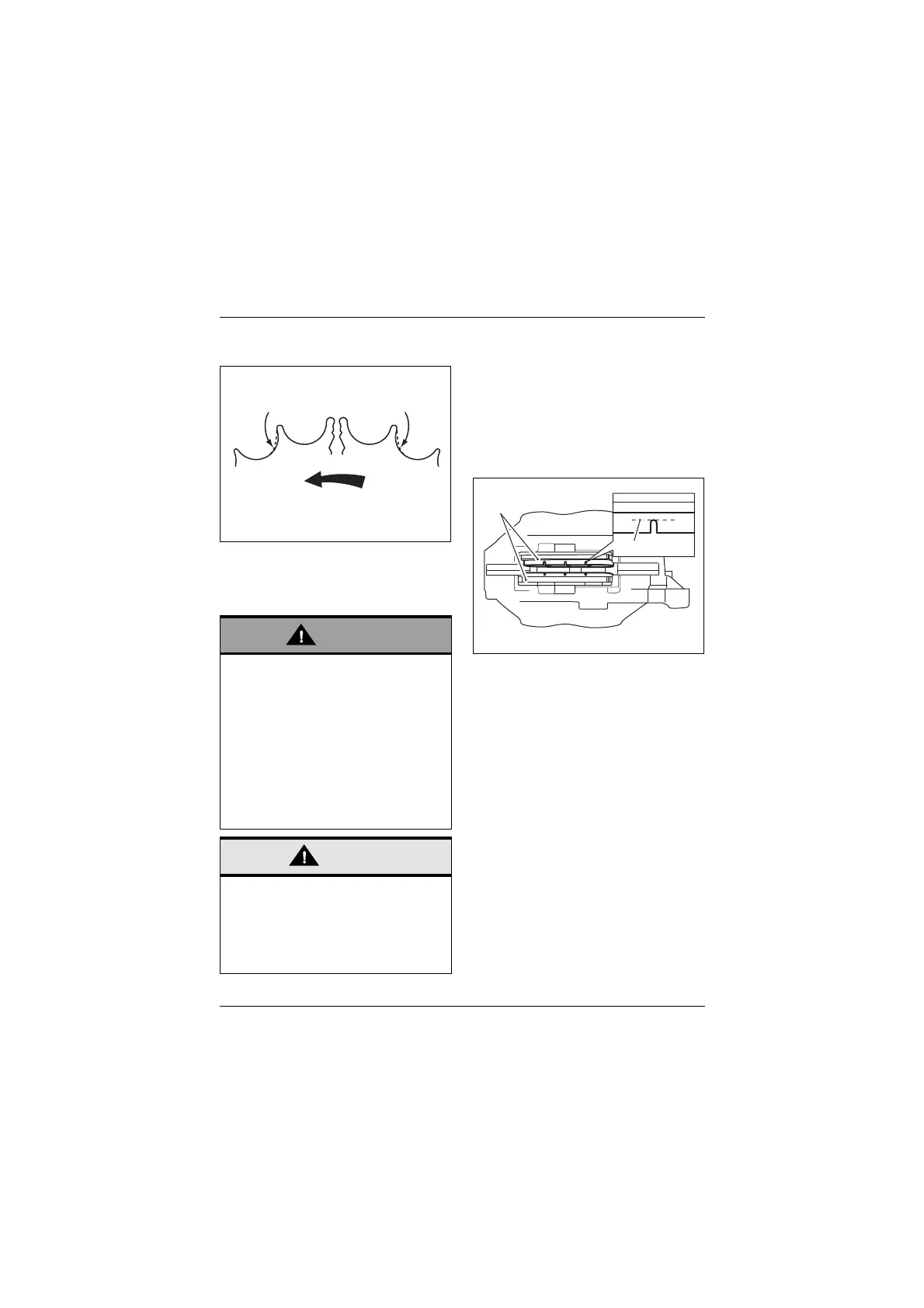

Also inspect the sprockets for unevenly
or excessively worn or damaged teeth.
If there is any irregularity, have the drive
chain and/or the sprockets replaced by
an authorized Triumph dealer.
Replace the chain guard.
Brakes
Brake Wear Inspection
Brake pads must be inspected in
accordance with scheduled requirements
and replaced if worn to, or beyond the
minimum service thickness.
Front Brake
1. Brake pads
2. Minimum thickness line
If the lining thickness of any front brake
pad is less than 0.06 in (1.5 mm), or if the
pad has worn down to the bottom of the
grooves, replace all the pads on the
wheel.
Warning
Never neglect chain maintenance and
always have chains installed by an
authorized Triumph dealer.
Use a genuine Triumph-supplied chain
as specified in the Triumph Parts
Catalog.
The use of non-approved chains may
result in a broken chain or may cause
the chain to jump off the sprockets
leading to loss of motorcycle control
or an accident.
Caution
If the sprockets are found to be worn,
always replace the sprockets and
drive chain together.
Replacing worn sprockets without also
replacing the chain will lead to
premature wear of the new sprockets.
WORN TOOTH
(ENGINE SPROCKET)
WORN TOOTH
(REAR SPROCKET)
(Sprocket wear exaggerated
for illustrative purposes)
ccol
cbmz_1
1
2

Triumph Street Triple R 2014 Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	675cc
Compression Ratio	12.65:1
Fuel System	Multipoint sequential electronic fuel injection with SAI
Final Drive	O-ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Frame	Aluminium beam twin spar
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Wheelbase	1, 410mm
Fuel Tank Capacity	17.4 litres
Max Power	106 PS (78 kW) @ 11, 850 rpm
Max Torque	68 Nm @ 9, 750 rpm
Exhaust	Stainless steel 3 into 1
Front Suspension	41mm upside down forks with adjustable preload, rebound and compression damping
Rear Suspension	adjustable rebound damping, and adjustable compression damping
Front Brakes	Twin 310mm floating discs, Nissin
Rear Brakes	Single 220mm disc
Dry Weight	168kg
Bore x Stroke	74.0mm x 52.3mm
