MAINTENANCE
155
Rear Brake Wear Inspection
Warning
If installing new proprietary brand
brake pads, check that the carrier
plate of the brake pad is the specified
thickness shown in the table.
Installing brake pads with the carrier
plate less than the specified thickness
may result in brake failure due to the
possible loss of the brake pad as it
wears.

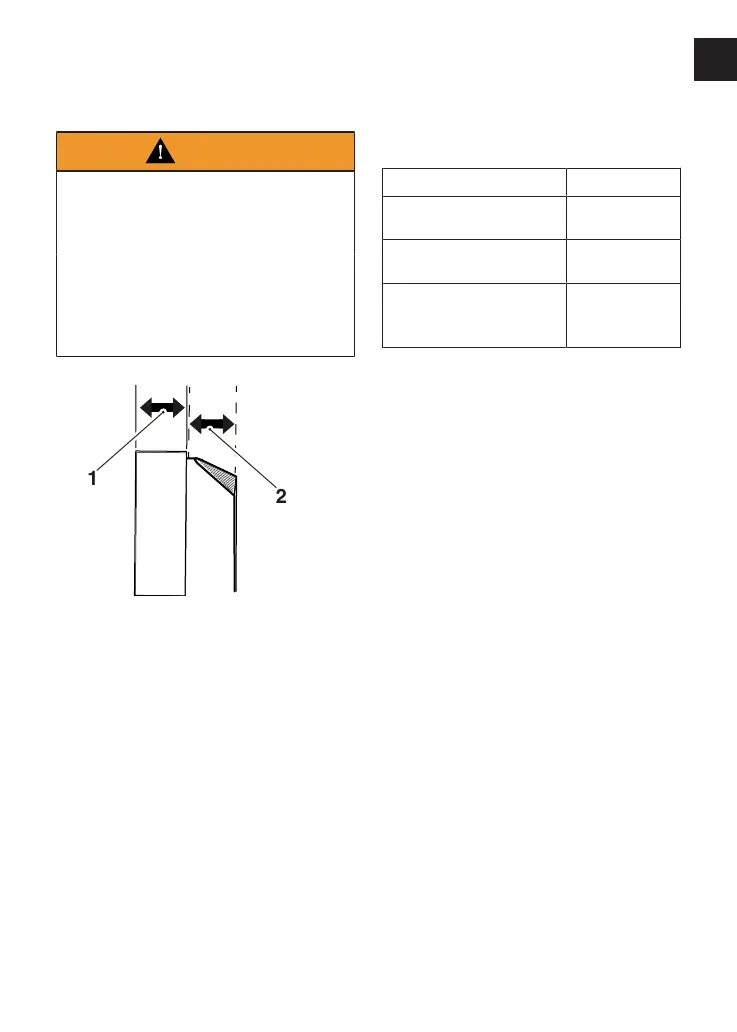

1. Carrier plate
2. Brake pad lining
Brake pads supplied by Triumph will
have the carrier plate at the
recommended thickness. Always have
replacement brake pads supplied and
installed by your Triumph dealer.
If the lining thickness of any brake pad
is less than that specified in the table,
replace all the brake pads on the wheel.
All Models
Carrier Plate Minimum
Thickness
0.12 in (3.0 mm)
Minimum Brake Pad Lining
Thickness
0.06 in (1.5 mm)
Minimum Service Thickness
(Brake Pad Lining and
Carrier Plate)
0.18 in (4.5 mm)
To Next Page
