Triumph Thruxton R User Manual

Maintenance And Adjustment
130

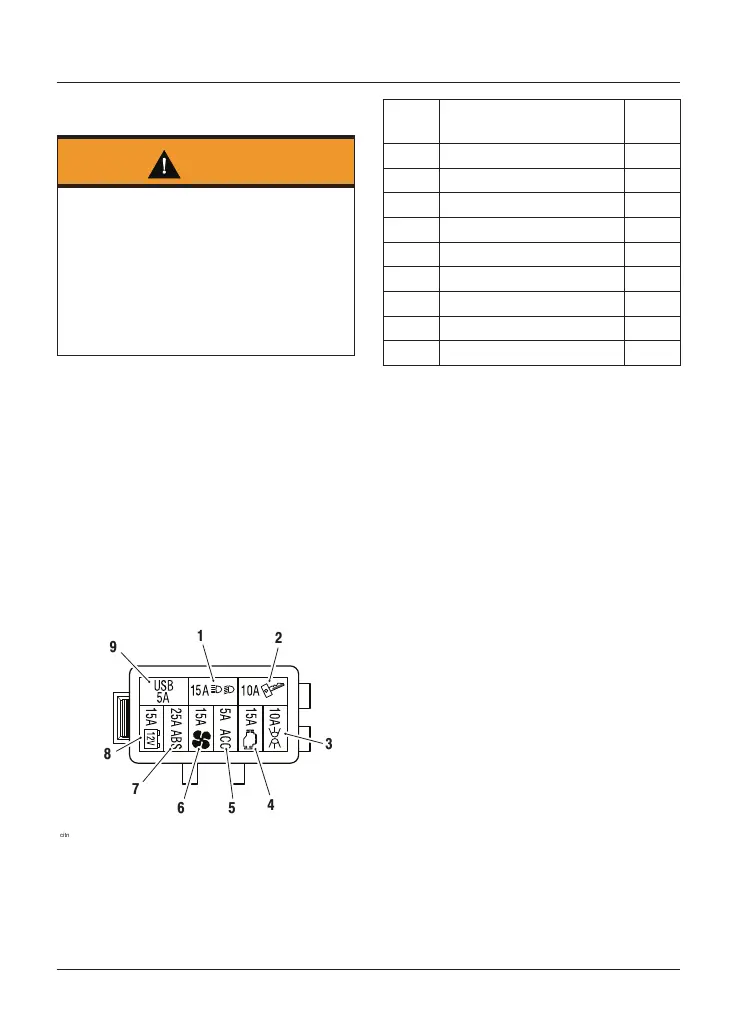

Fuse Box
Warning
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover) and never use a
fuse of higher rating.
Use of an incorrect fuse could lead to
an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
Note:
• A blown fuse is indicated when all
of the systems protected by that
fuse become inoperative. When
checking for a blown fuse, use the
table to establish which fuse has
blown.
The fuse box is located underneath the
seat.
To allow access to the fuse box, the seat
must be removed (see page 62).
c
i
t
n
9
1
2
3
4
5
6
7
8
Fuse Box
Position Circuit Protected Rating
(Amps)
1 Dip and high headlight beams 15
2 Ignition switch, starter circuit 10
3 Auxiliary lights 10
4 Engine management system 15
5 Accessory socket 5
6 Cooling fan 15
7 ABS 25
8 Instruments and alarm 15
9 USB port socket 5
