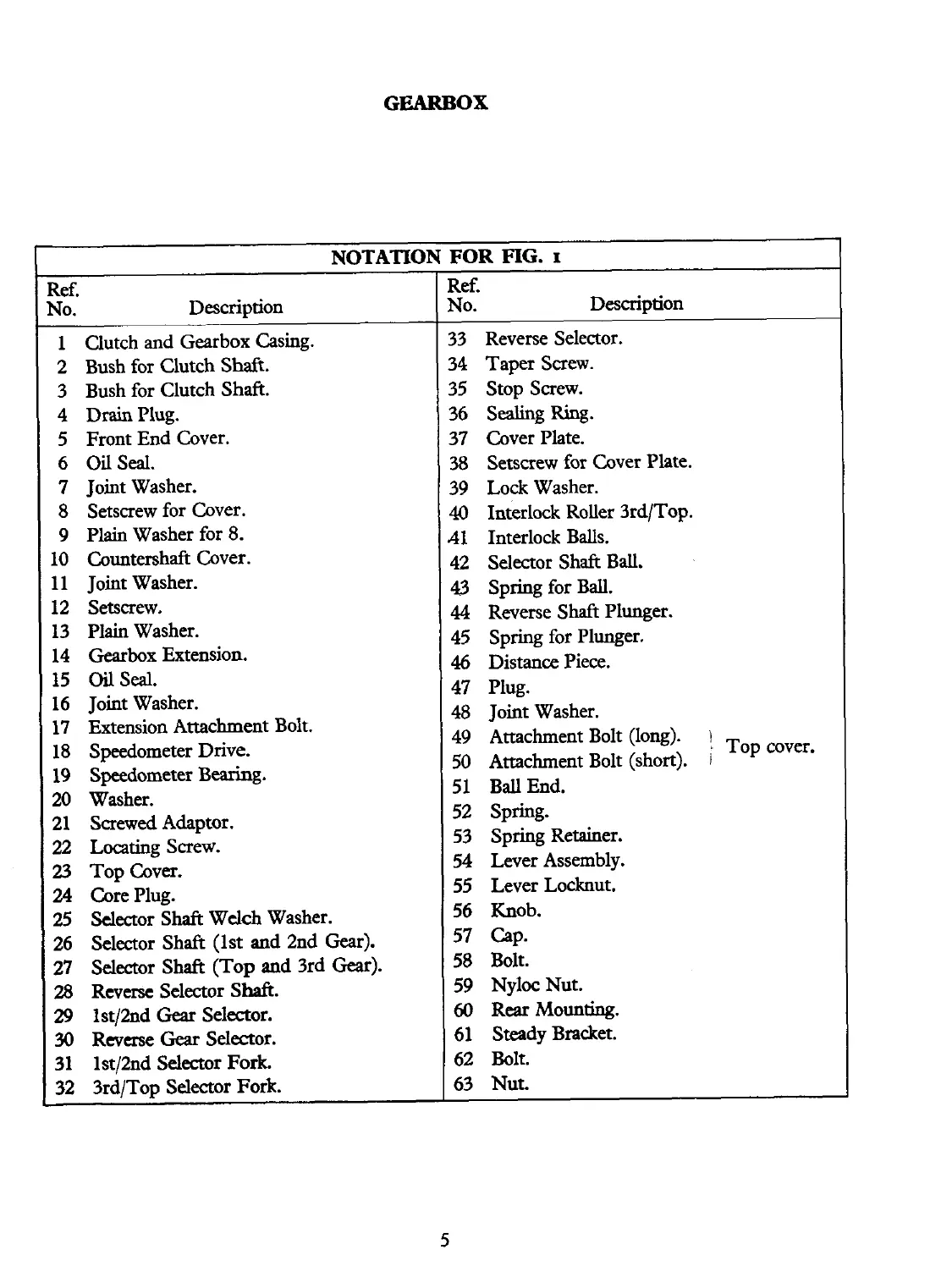

GEARBOX
tef.
go. Description
1 Clutch and Gearbox Casing.
2
Bush for Clutch Shaft.
3 Bush for Clutch Shaft.
4
Drain Plug.
5 Front End Cover.
6
Oil
Seal.
7 Joint Washer.
8
Setscrew for Cover.
9 Plain Washer for
8.
10 Countershaft Cover.
11 Joint Washer.
12 Setscrew.
13 Plain Washer.
14 Gearbox Extension.
15
Oil
Seal.
16 Joint Washer.
17
Extension Attachment Bolt.
18 Speedometer Drive.
19 Speedometer Bearing.
20 Washer.
21 Screwed Adaptor.
22 Locating Screw.
23
Top Cover.
24
Core Plug.
25 Selector Shaft Welch Washer.
26 Selector Shaft (1st and
2nd
Gear).
27 Selector Shaft (Top and 3rd
k).
28
Revmc Selector Shaft.
29
lst/2nd
Gear
Selector.
30
Reverse
Gear
Selector.
31
lst/2nd Selector Fork.
32 3rd/Top Selector Fork.
Ref.
No. Description
33 Reverse Selector.
34 Taper Screw.
35 Stop Screw.
36 Sealing
Ring.
37
Cover Plate.
38
Setscrew for Cover Plate.
39 Lock Washer.
40
Interlock Roller 3rd/Top.
41 Interlock Balls.
42
Selector Shaft Ball.
43
Spring for Ball.
44
Reverse Shaft Plunger.
45 Spring for Plunger.
46
Distance Piece.
47 Plug.
48 Joint Washer.
49 Attachment Bolt (long).
!
Top
mver.
50 Attachment Bolt (short).
I
51
Ball
End.
52 Spring.
53 Spring Retainer.
54 Lever Assembly.
55
Lever Locknut.
56 Knob.
57
Cap.
58 Bolt.
59 Nyloc Nut.
60
Rear Mounting.
61 Steady Bracket.
62 Bolt.
63 Nut.
