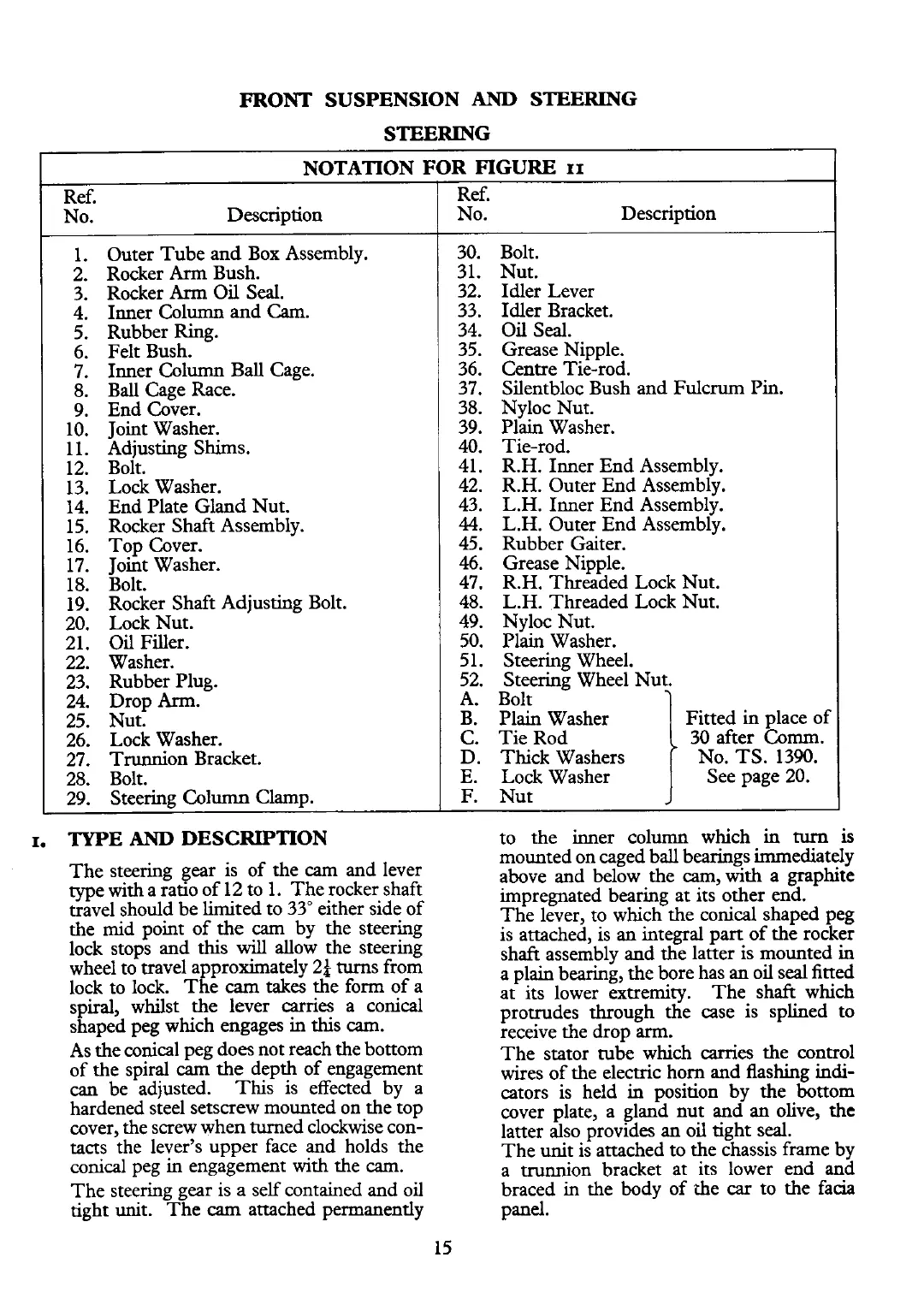

FRONT SUSPENSION AND STEERING
STEERING
NOTATION FOR FIGURE
11
Ref.
No. Description
No. Description
Outer Tube and Box Assembly.
Rocker
Arm Bush.
Rocker
Arm Oil Seal.
Inner Column and
Cam.
Rubber Ring.
Felt Bush.
Inner Column Ball Cage.
Ball Cage Race.
End Cover.
Joint Washer.
Adjusting Shims.
-
~oit.
Lock Washer.
End Plate Gland Nut.
Rocker Shaft Assembly.
Top Cover.
Joint Washer.
Bolt.
Rocker Shaft Adjusting Bolt.
Lock Nut.
Oil Filler.
Washer.
Rubber Plug.
Drop
Arm.
Nut.
Lock Washer.
Trunnion Bracket.
Bolt.
Steering Column
Clamp.
I. TYPE AND DESCRIPTION
The steering gear is of the cam and lever
type with a ran0 of
12 to 1. The rocker shaft
travel should be limited to 33" either side of
the mid point of the
cam by the steering
lock stops and this
will allow the steering
wheel to travel approximately
24 turns from
lock to lock. The
cam takes the form of a
spiral, whilst the lever carries a conical
shaped peg which engages in this
cam.
As the conical peg does not reach the bottom
of the spiral
cam the depth of engagement
can be adjusted. This is effected by a
hardened steel setscrew mounted on the top
cover, the screw when turned clockwise con-
tacts the lever's upper face and holds the
conical peg in engagement with the
cam.
The steering gear is a self contained and oil
tight unit. The
cam attached permanently
Bolt.
Nut.
Idler Lever
Idler Bracket.
Oil Seal.
Grease Nipple.
Centre Tie-rod.
Silentbloc Bush and Fulcrum Pin.
Nyloc Nut.
Plain Washer.
Tie-rod.
R.H. Inner End Assembly.
R.H. Outer End Assembly.
L.H. Inner End Assembly.
L.H. Outer End Assembly.
Rubber Gaiter.
Grease Nipple.
R.H. Threaded Lock Nut.
L.H. Threaded Lock Nut.
Nyloc Nut.
Plain Washer.
Steering Wheel.
Steering Wheel Nut.
Bolt
Plain Washer
Fitted in place of
Tie Rod
30 after Comm.
Thick Washers No. TS. 1390.
Lock Washer See page
20.
J
- -
F. Nut
to the inner column which in
turn is
mounted on caged ball bearings immediately
above and below the
cam, with a graphite
impregnated bearing at its other end.
The lever, to which the conical shaped peg
is attached, is an integral part of the rocker
shaft assembly and the latter is mounted in
a plain bearing, the bore has an oil seal fitted
at its lower extremity. The shaft which
protrudes through the case is
splined to
receive the drop
arm.
The stator tube which carries the control
wires of the electric horn and flashing indi-
cators is held in position by the bottom
cover plate, a gland nut and an olive, the
latter also provides an oil tight seal.
The unit is attached to the chassis frame by
a trunnion bracket at its lower end and
braced in the body of the
car to the facia
panel.
