ROAD SPRINGS AND SHOCK ABSORBERS

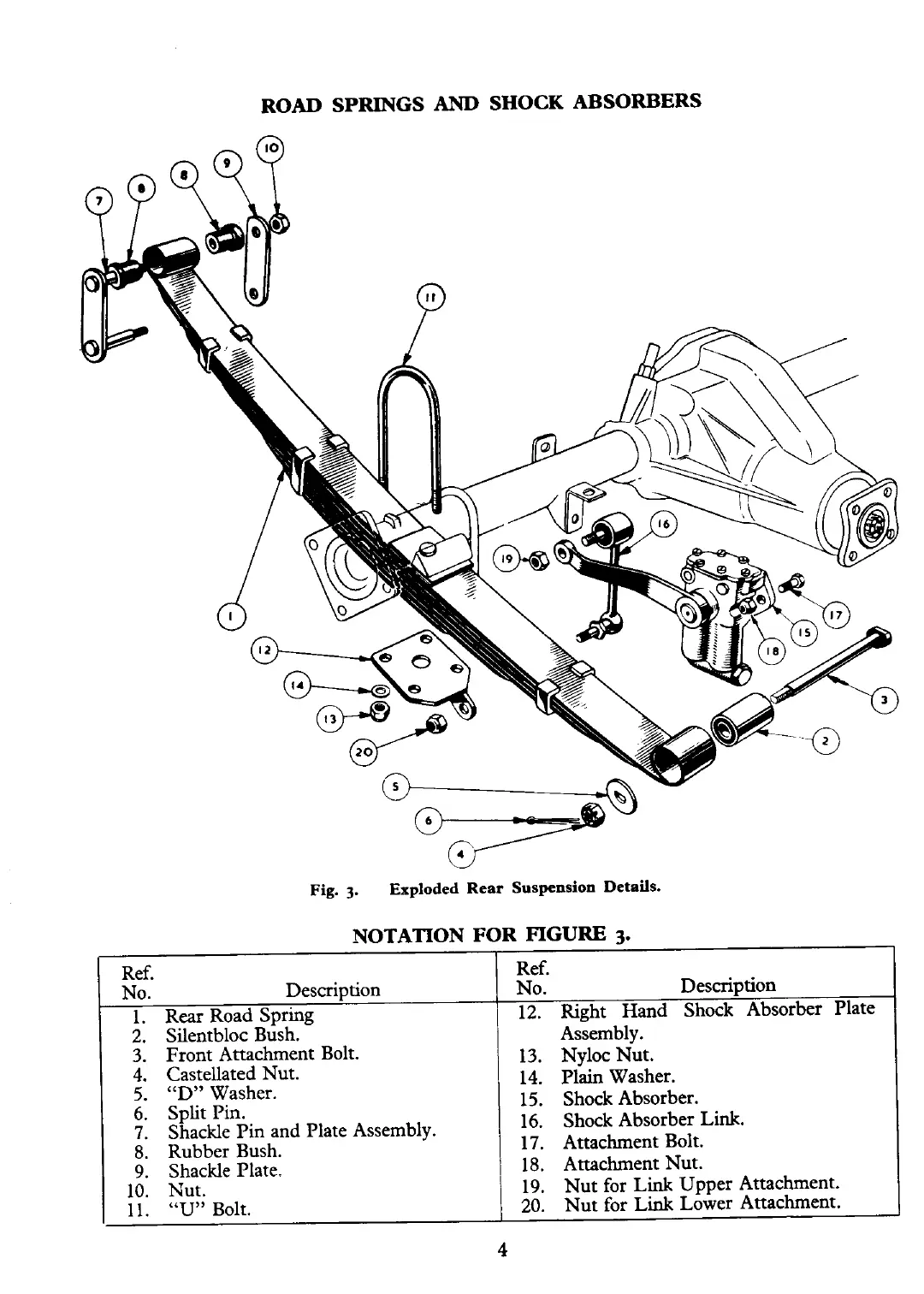

Fig. 3.
Exploded Rear Suspension Details.
NOTATION FOR FIGURE 3.
Ref.
No. Description
1. Rear Road Spring
2. Silentbloc Bush.
3. Front Attachment Bolt.
4. Castellated Nut.
5. "D" Washer.
6. Split Pin.
7.
Shackle Pin and Plate Assembly.
8. Rubber Bush.
9. Shackle Plate,
10. Nut.
l l. "U" Bolt.
Ref.
No. Description
12. Right Hand Shock Absorber Plate
Assembly.
13. Nyloc Nut.
14. Plain Washer.
15. Shock Absorber.
16. Shock Absorber Link.
17. Attachment Bolt.
18. Attachment Nut.
19. Nut for Link Upper Attachment.
20. Nut for Link Lower Attachment.
