FUEL
SYSTEM
Fig.
I

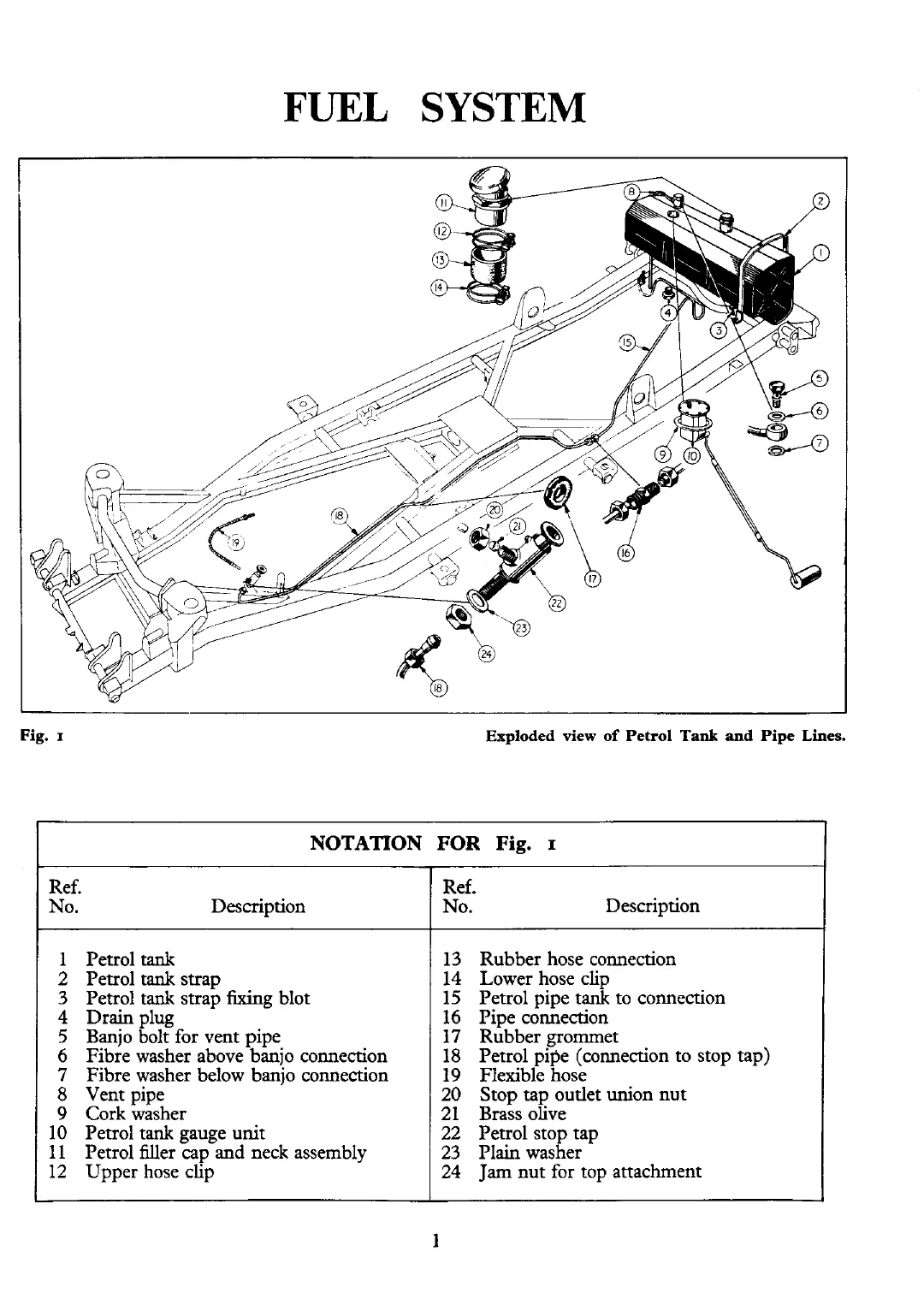

Exploded
view
of Petrol
Tank
and
Pipe Lines.
NOTATION FOR
Fig.
I
Ref.
No.
--
Description
1
Petrol tank
2
Petrol tank strap
3
Petrol tank strap fixing blot
4
Drain plug
5
Banjo bolt for vent pipe
6
Fibre washer above banjo connection
7
Fibre washer below banjo connection
8
Vent pipe
9
Cork washer
10
Petrol tank gauge unit
11
Petrol filler cap and neck assembly
12
Upper hose clip
Ref.
No.
Description
Rubber hose connection
Lower hose clip
Petrol pipe tank to connection
Pipe connection
Rubber grommet
Petrol pipe (connection to stop tap)
Flexible hose
Stop tap outlet union nut
Brass olive
Petrol stop tap
Plain washer
Jam
nut for top attachment
