BRAKES
Fig. I
NOTATION FOR Fig. I.

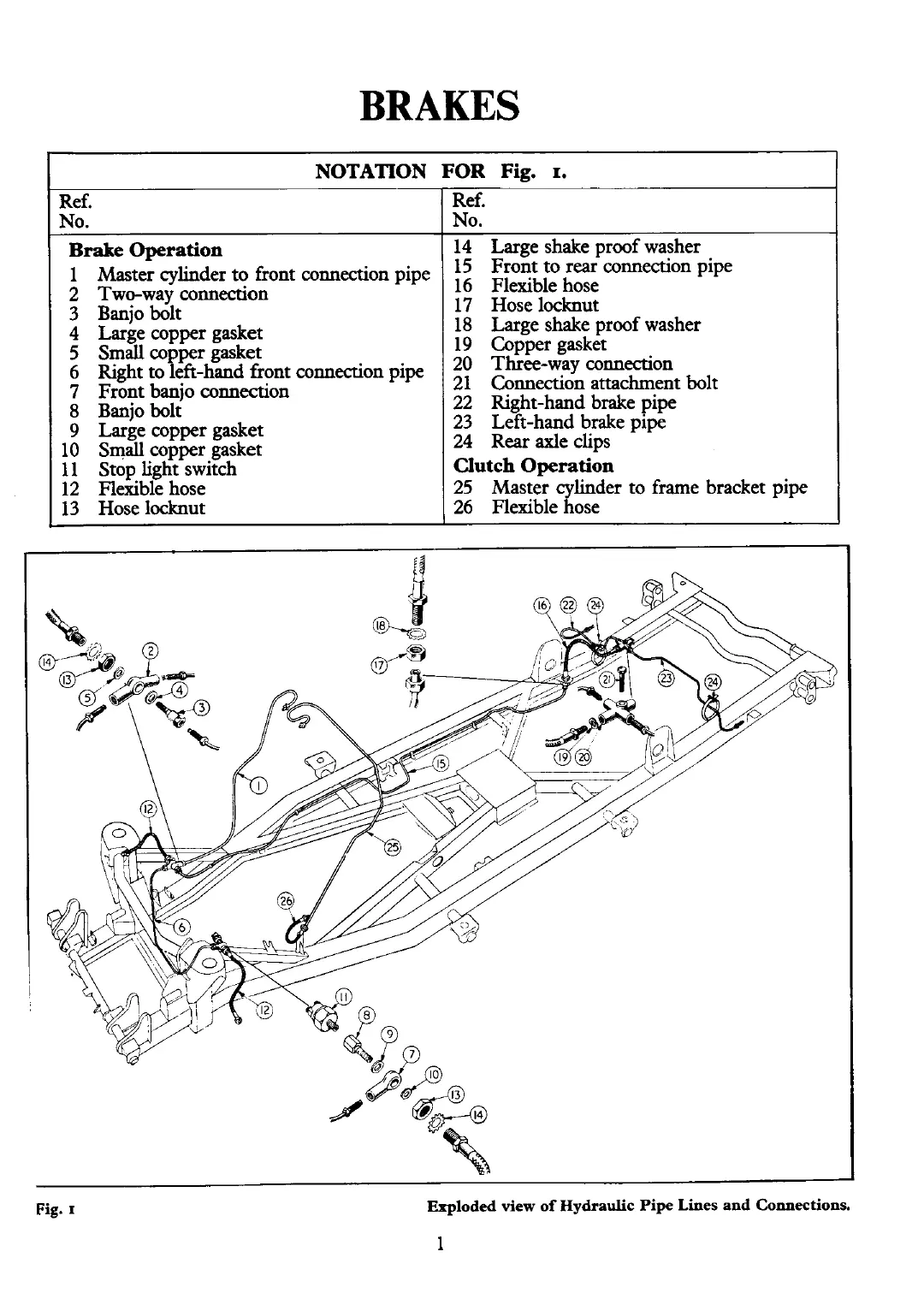

Exploded view of Hydraulic Pipe Lines and Connections.
1
Ref.
No.
Brake Operation
1 Master cylinder to front connection pipe
2 Two-way connection
3 Banjo bolt
4 Large copper gasket
5 Small copper gasket
6 Right to left-hand front connection pipe
7 Front banjo connection
8 Banjo bolt
9 Large copper gasket
10 Small copper gasket
11 Stop light switch
12 Flexible hose
13 Hose locknut
Ref.
No.
14 Large shake proof washer
:: ;:,":$;g pipe
17 Hose locknut
18 Large shake proof washer
19 Copper gasket
20
Three-way connection
21 Connection attachment bolt
22 Right-hand brake pipe
23 Left-hand brake pipe
24 Rear axle clips
Clutch Operation
25 Master cylinder to frame bracket pipe
26 Flexible hose
