EXHAUST SYSTEM

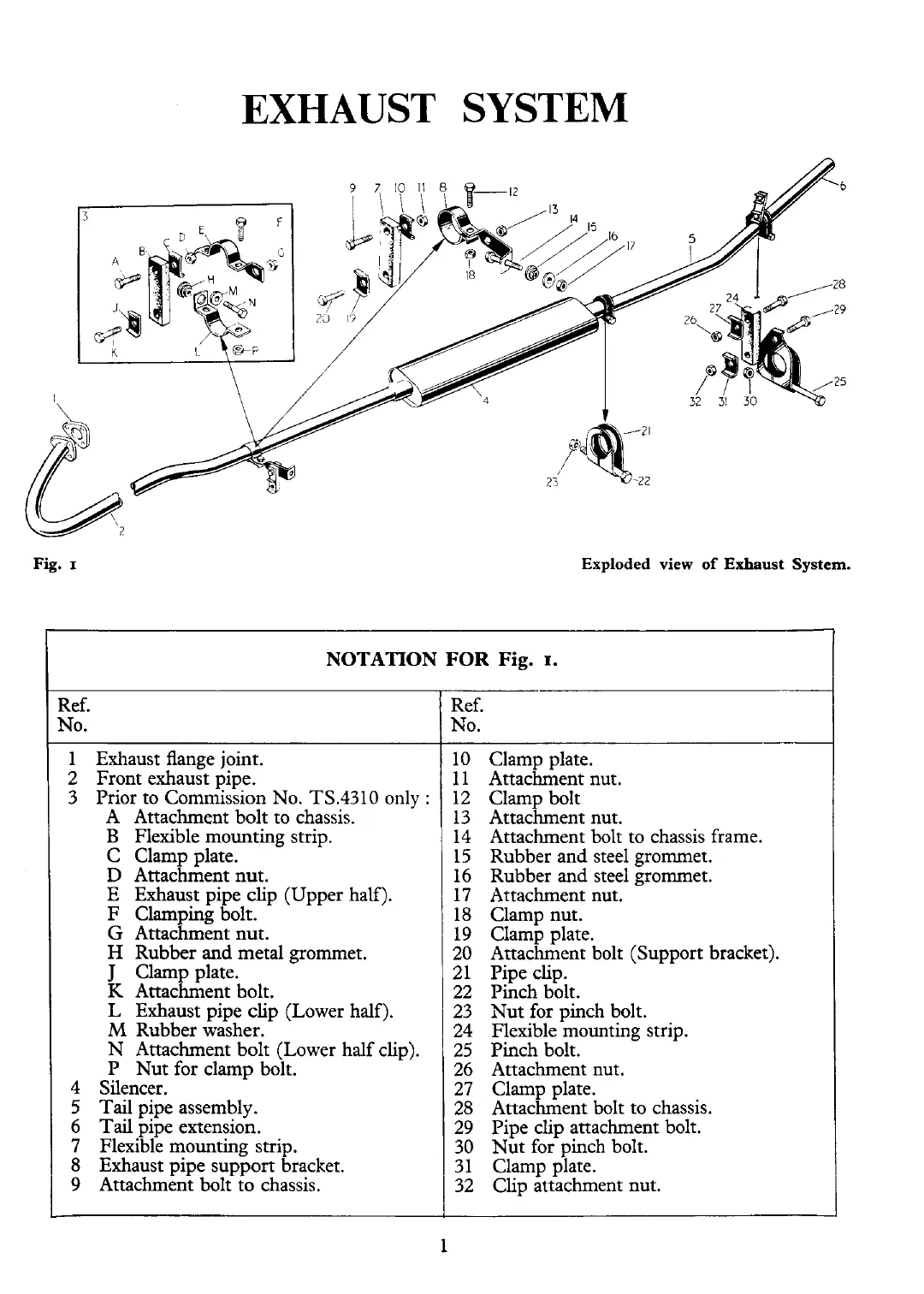

Fig. I
Exploded view of Exhaust System.
NOTATION FOR Fig. I.
Ref.
No.
1 Exhaust flange joint.
2 Front exhaust pipe.
3 Prior to Commission No. TS.4310 only
:
A Attachment bolt to chassis.
B Flexible mounting strip.
C Clamp plate.
D Attachment nut.
E Exhaust pipe clip (Upper half).
F Clamping bolt.
G Attachment nut.
H Rubber and metal grommet.
J Clamp plate.
K Attachment bolt.
L Exhaust pipe clip (Lower half).
M Rubber washer.
N Attachment bolt (Lower half clip).
P Nut for clamp bolt.
4 Silencer.
5
Tail pipe assembly.
6
Tail pipe extension.
7 Flexible mounting strip.
8 Exhaust pipe support bracket.
9 Attachment bolt to chassis.
Ref.
No.
10 Clamp plate.
11 Attachment nut.
12 Clamp bolt
13 Attachment nut.
14 Attachment bolt to chassis frame.
15 Rubber and steel grommet.
16 Rubber and steel grommet.
17 Attachment nut.
18 Clamp nut.
19 Clamp plate.
20 Attachment bolt (Support bracket).
21 Pipe clip.
22 Pinch bolt.
23 Nut for pinch bolt.
24 Flexible mounting strip.
25 Pinch bolt.
26 Attachment nut.
27 Clamp plate.
28 Attachment bolt to chassis.
29 Pipe clip attachment bolt.
30 Nut for pinch bolt.
31 Clamp plate.
32 Clip attachment nut.
