EXHAUST SYSTEM

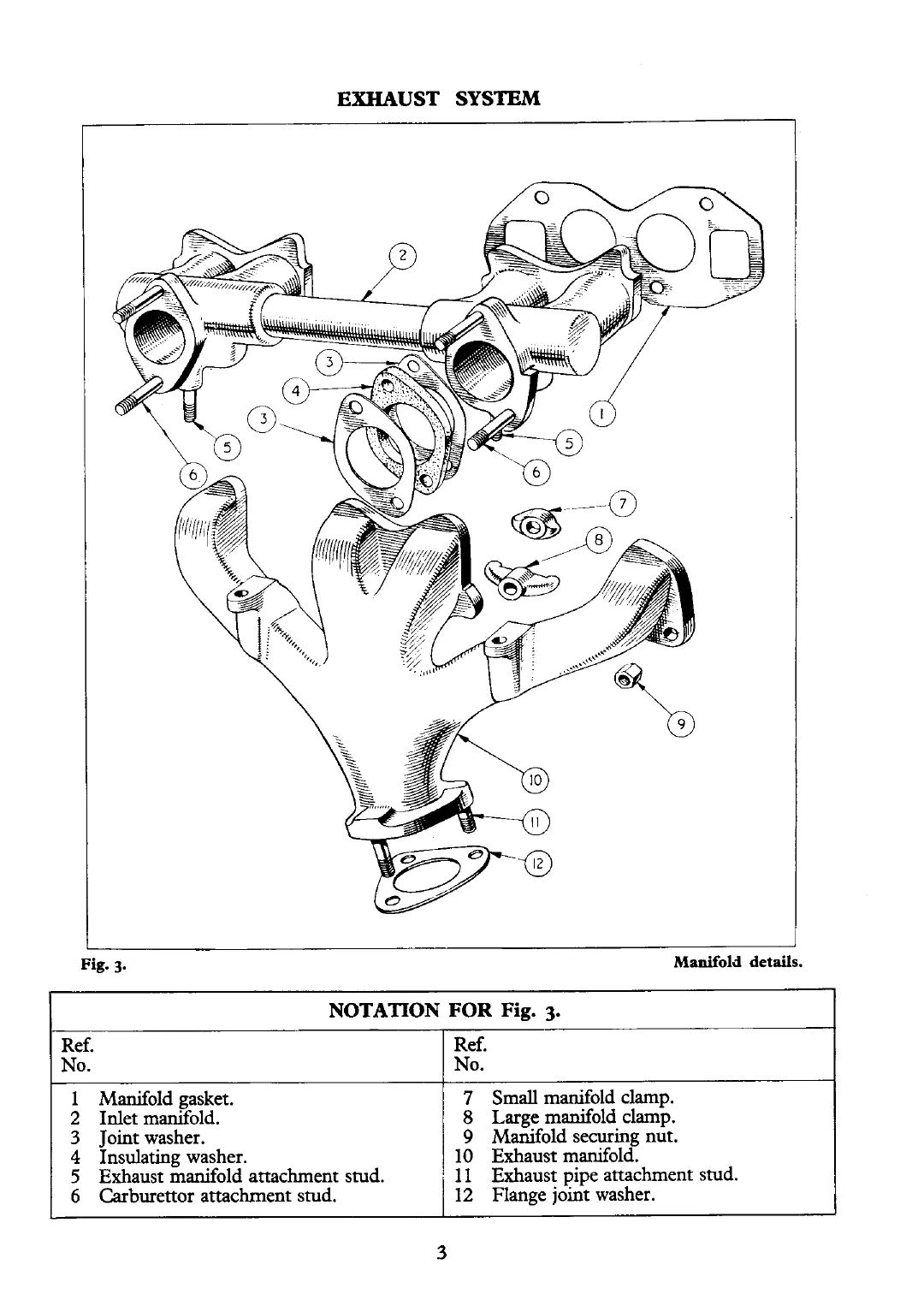

NOTATION FOR Fig. 3.
Ref.
No.
1 Manifold gasket.
2 Inlet manifold.
Ref.
No.
7 Small manifold clamp.
8 Large manifold clamp.
3 Joint washer. 9 Manifold securing nut.
4 Insulating washer.
1 10 Exhaust manifold.
5 Exhaust manifold attachment stud. I 11 Exhaust pipe attachment stud.
6 Carburettor attachment stud.
12 Flange joint washer.
