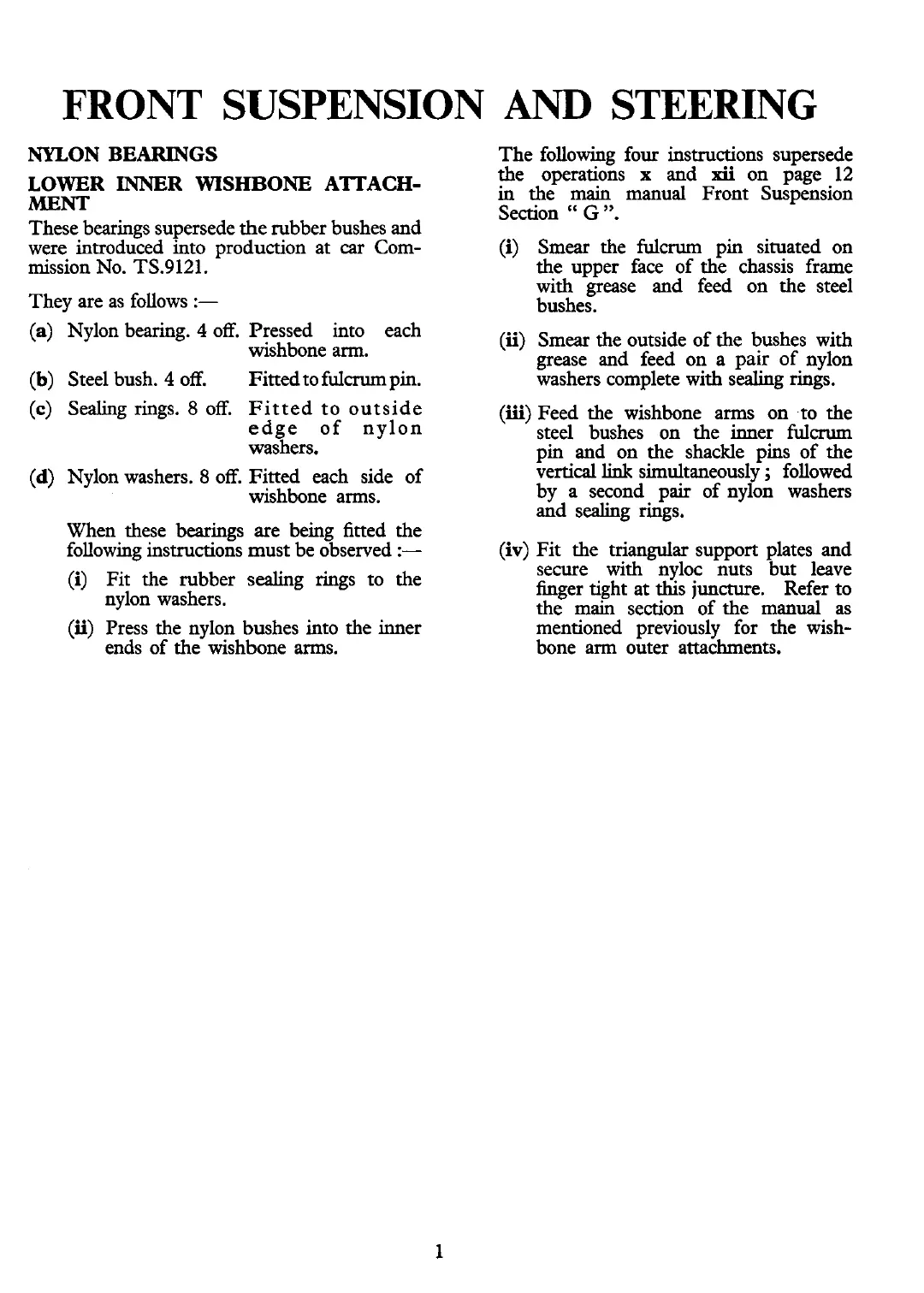

FRONT SUSPENSION
NYLON
BEARINGS
LOWER INNER WISHBONE
ATI'ACH-
MENT
These bearings supersede the rubber bushes and
were introduced into production at car Com-
mission No. TS.9121.
They are as follows
:-
(a)
Nylon bearing.
4
off. Pressed into each
wishbone arm.
(b)
Steel bush.
4
off. Fitted to fulcrum pin.
(c)
Sealing rings.
8
off. Fitted to outside
edge of nylon
washers.
(d)
Nylon washers.
8
off. Fitted each side of
wishbone arms.
When these bearings are being fitted the
following instructions must be observed
:-
(i)
Fit the rubber sealing rings to the
nylon washers.
(ii)
Press the nylon bushes into the inner
ends of the wishbone arms.
AND
STEERING
The following four instructions supersede
the operations
X
and
xii
on page 12
in
the
main
manual Front Suspension
Section
cc
G
".
(i)
Smear the fulcrum pin situated on
the upper face of the chassis frame
with grease and feed on the steel
bushes.
(ii)
Smear the outside of the bushes with
grease and feed on a pair
of
nylon
washers complete with sealing rings.
(M)
Feed the wishbone arms on -to the
steel bushes on the inner
fulcrum
pin and on the shackle pins of the
vertical
link
simultaneously
;
followed
by a second pair of nylon washers
and sealing rings.
(iv)
Fit the triangular support plates and
secure with nyloc nuts but leave
finger tight at this juncture. Refer to
the main section of the manual as
mentioned previously for the wish-
bone arm outer attachments.
