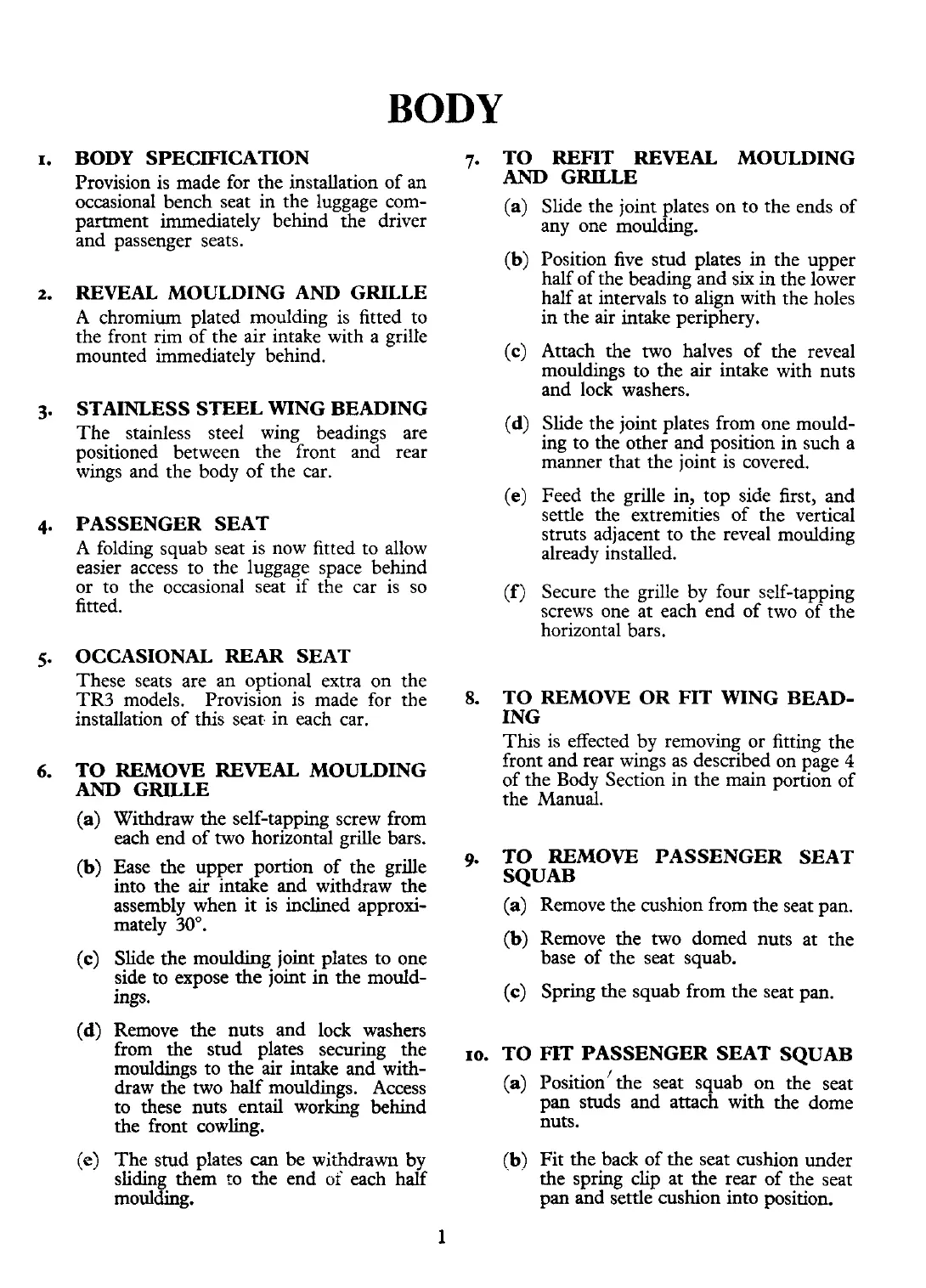

BODY
BODY SPECIFICATION
Provision is made for the installation of an
occasional bench seat in the luggage com-
partment immediately behind the driver
and passenger seats.
REVEAL MOULDING AND GRILLE
A
chromium plated moulding is fitted to
the front rim of the air intake with a grille
mounted immediately behind.
STAINLESS STEEL WING BEADING
The stainless steel wing beadings are
positioned between the front and rear
wings and the body of the car.
PASSENGER SEAT
A folding squab seat is now fitted to allow
easier access to the luggage space behind
or to the occasional seat if the car is so
fitted.
OCCASIONAL REAR SEAT
These seats are an optional extra on the
TR3 models. Provision is made for the
installation of this seat in each car.
TO REMOVE REVEAL MOULDING
AND
GRILLE
Withdraw the self-tapping screw from
each end of two horizontal grille bars.
7.
TO REFIT
REVEAL
MOULDING
AND
GRILLE
(a)
Slide the joint plates on to the ends of
any one moulding.
(b)
Position five stud plates in the upper
half of the beading and six in the lower
half at intervals to align with the holes
in the air intake periphery.
(c)
Attach the two halves of the reveal
mouldings to the air intake with nuts
and lock washers.
(d)
Slide the joint plates from one mould-
ing to the other and position in such a
manner that the joint is covered.
Ease the upper portion of the grille
9'
into the
air
intake and withdraw the
assembly when it is inclined approxi-
mately
30".
Slide the moulding joint plates to one
side to expose the joint in the mould-
ings.
(e)
Feed the grille in, top side first, and
settle the extremities of the vertical
struts adjacent to the reveal moulding
already installed.
(f)
Secure the grille by four self-tapping
screws one at each end of two of the
horizontal bars.
8.
TO REMOVE OR FIT WING BEAD-
ING
This is effected by removing or fitting the
front and rear wings as described on page
4
of the Body Section in the main portion of
the Manual.
Remove the nuts and lock washers
from the stud plates securing the
mouldings to the air intake and with-
draw the two half mouldings. Access
to these nuts entail working behind
the front cowling.
The stud plates
can
be withdrawn by
sliding them to the end
of
each half
moulding.
TO REMOVE PASSENGER SEAT
SQUAB
(a)
Remove the cushion from the seat pan.
(b)
Remove the two domed nuts at the
base of the seat squab.
(c)
Spring the squab from the seat pan.
TO
FJT
PASSENGER SEAT SQUAB
(a)
Position'the seat squab on the seat
pan studs and attach with the dome
nuts.
(b)
Fit the back of the seat cushion under
the spring clip at the rear of the seat
pan and settle cushion into position.
