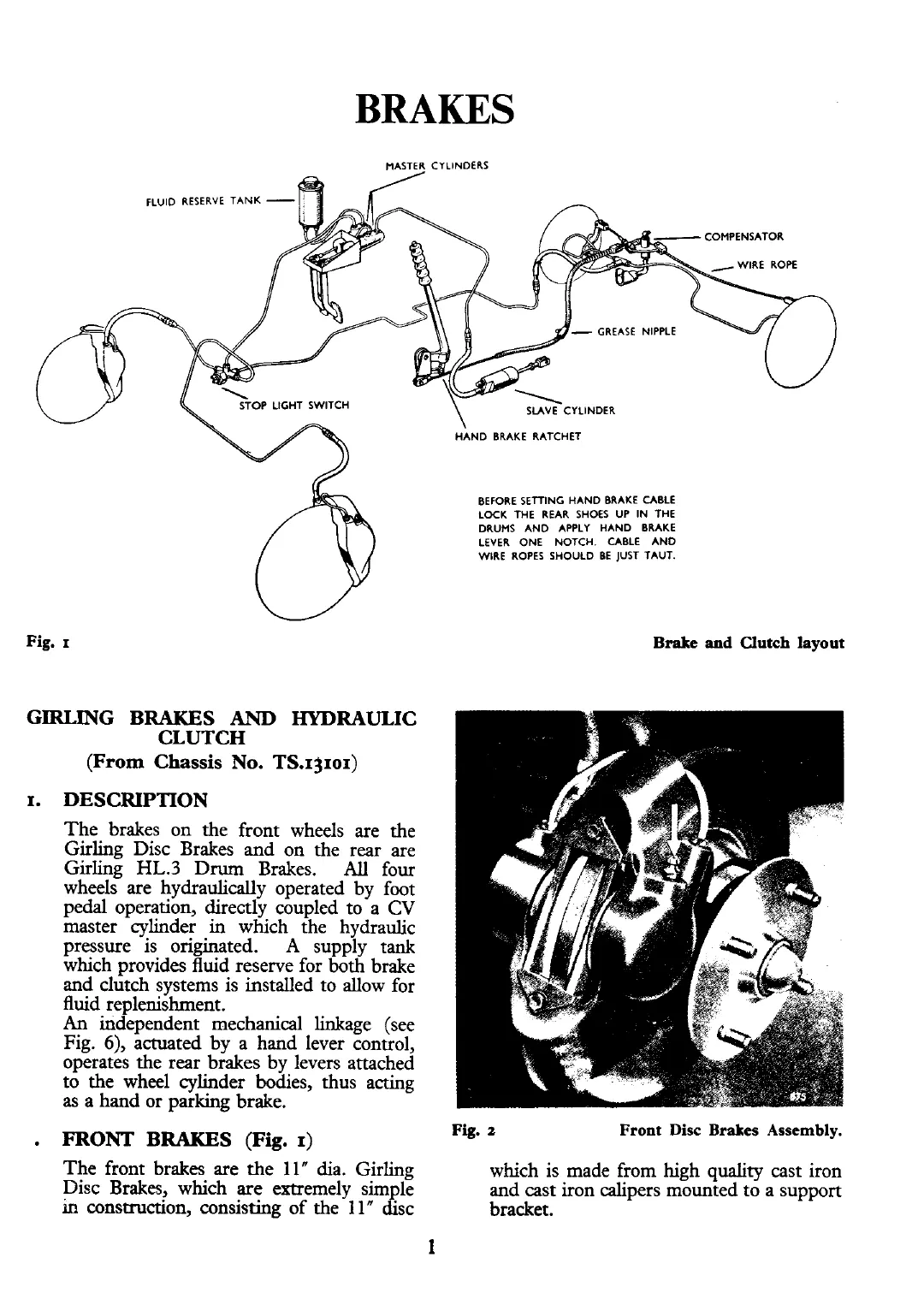

BRAKES
MASTER CYLINDERS
STOP LIGHT SWITCH
CYLINDER
HAND BRAKE RATCHET
BEFORE SETTING HAND BRAKE CABLE
LOCK THE REAR SHOES UP IN THE
DRUMS AND APPLY HAND BRAKE
LEVER ONE NOTCH. CABLE AND
WIRE ROPES SHOULD BE JUST TAUT.
Fig.
I
Brake
and
Clutch layout
GIRLING
BRAKES
AND
HYDRAULIC
CLUTCH
(From
Chassis
No.
TS.I~OI)
I.
DESCRIPTION
The brakes on the front wheels are the
Girling Disc Brakes and on the rear are
Girling
HL.3
Drum Brakes.
All
four
wheels are hydraulically operated by foot
pedal operation, directly coupled to a
CV
master cylinder
in
which the hydraulic
pressure is originated.
A
supply tank
which provides fluid reserve for both brake
and clutch systems is installed to allow for
fluid replenishment.
An
independent mechanical linkage (see
Fig.
6),
actuated by a hand lever control,
operates the rear brakes by levers attached
to the wheel cylinder bodies, thus
acting
as a hand or parking brake.
.
FRONT BRAKES
(Fig.
I)
Fig.
2
Front Disc Brakes Assembly.
The front brakes are the
11"
dia. Girling
which is made from high
quality
cast iron
Disc Brakes, which are extremely simple
and cast iron calipers mounted to a support
m
construction, consisting of the
11"
disc
bracket.
