ENGINE

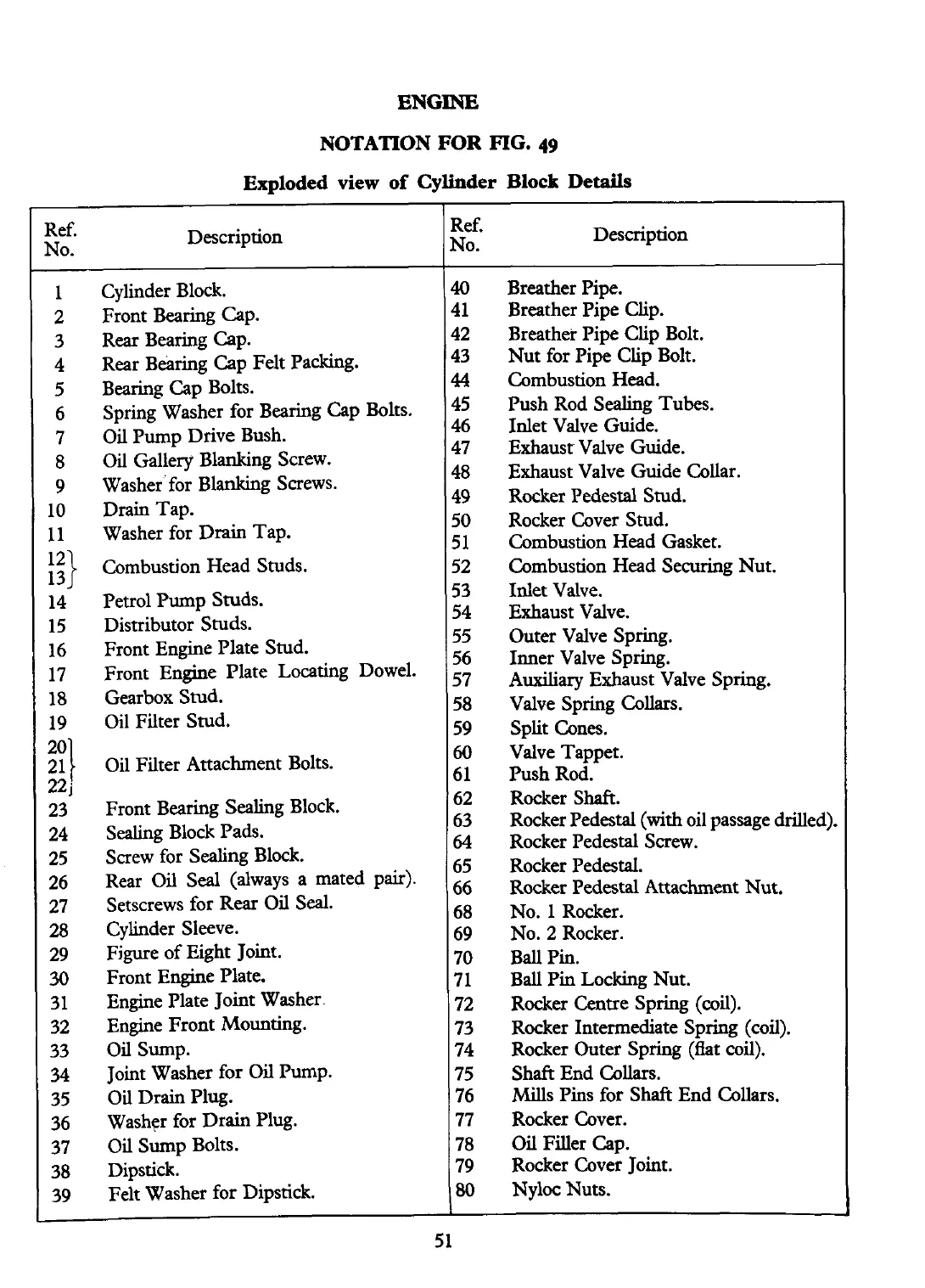

NOTATION FOR FIG. 49
Exploded view of Cylinder Block Details
ief.
qo.
Description
Cylinder Block.
Front Bearing Cap.
Rear Bearing Cap.
Rear Bearing Cap Felt Packing.
Bearing Cap Bolts.
Spring Washer for Bearing Cap Bolts.
Oil Pump Drive Bush.
Oil Gallery Blanking Screw.
Washer for Blanking Screws.
Drain Tap.
Washer for Drain Tap.
Combustion Head Studs.
Petrol Pump Studs.
Distributor Studs.
Front Engine Plate Stud.
Front Engine Plate Locating Dowel.
Gearbox Stud.
Oil Filter Stud.
Oil Filter Attachment Bolts.
Front Bearing Sealing Block.
Sealing Block Pads.
Screw for Sealing Block.
Rear Oil Seal (always
a mated pair).
Setscrews for
Rear Oil Seal.
Cylinder Sleeve.
Figure of Eight Joint.
Front Engine Plate.
Engine Plate Joint Washer.
Engine Front Mounting.
Oil Sump.
Joint Washer for Oil Pump.
Oil Drain Plug.
Wash~r for Drain Plug.
Oil Sump Bolts.
Dipstick.
Felt Washer for Dipstick.
Ref.
No.
Description
Breather Pipe.
Breather Pipe Clip.
Breather Pipe Clip Bolt.
Nut for Pipe Clip Bolt.
Combustion Head.
Push Rod Sealing Tubes.
Inlet Valve Guide.
Exhaust Valve Guide.
Exhaust Valve Guide Collar.
Rocker Pedestal Stud.
Rocker Cover Stud.
Combustion Head Gasket.
Combustion Head Securing Nut.
Inlet Valve.
Exhaust Valve.
Outer Valve Spring.
Inner Valve Spring.
Auxiliary Exhaust Valve Spring.
Valve Spring Collars.
Split Cones.
Valve Tappet.
Push Rod.
Rocker Shaft.
Rocker Pedestal
(with oil passage drilled)
Rocker Pedestal Screw.
Rocker Pedestal.
Rocker Pedestal Attachment Nut.
No. 1 Rocker.
No.
2 Rocker.
Ball Pin.
Ball Pin Locking Nut.
Rocker Centre Spring (coil).
Rocker Intermediate Spring (coil).
Rocker Outer Spring
(flat coil).
Shaft End Collars.
Mills Pins for
Shaft End Collars.
Rocker Cover.
Oil Filler Cap.
Rocker Cover Joint.
Nyloc Nuts.
