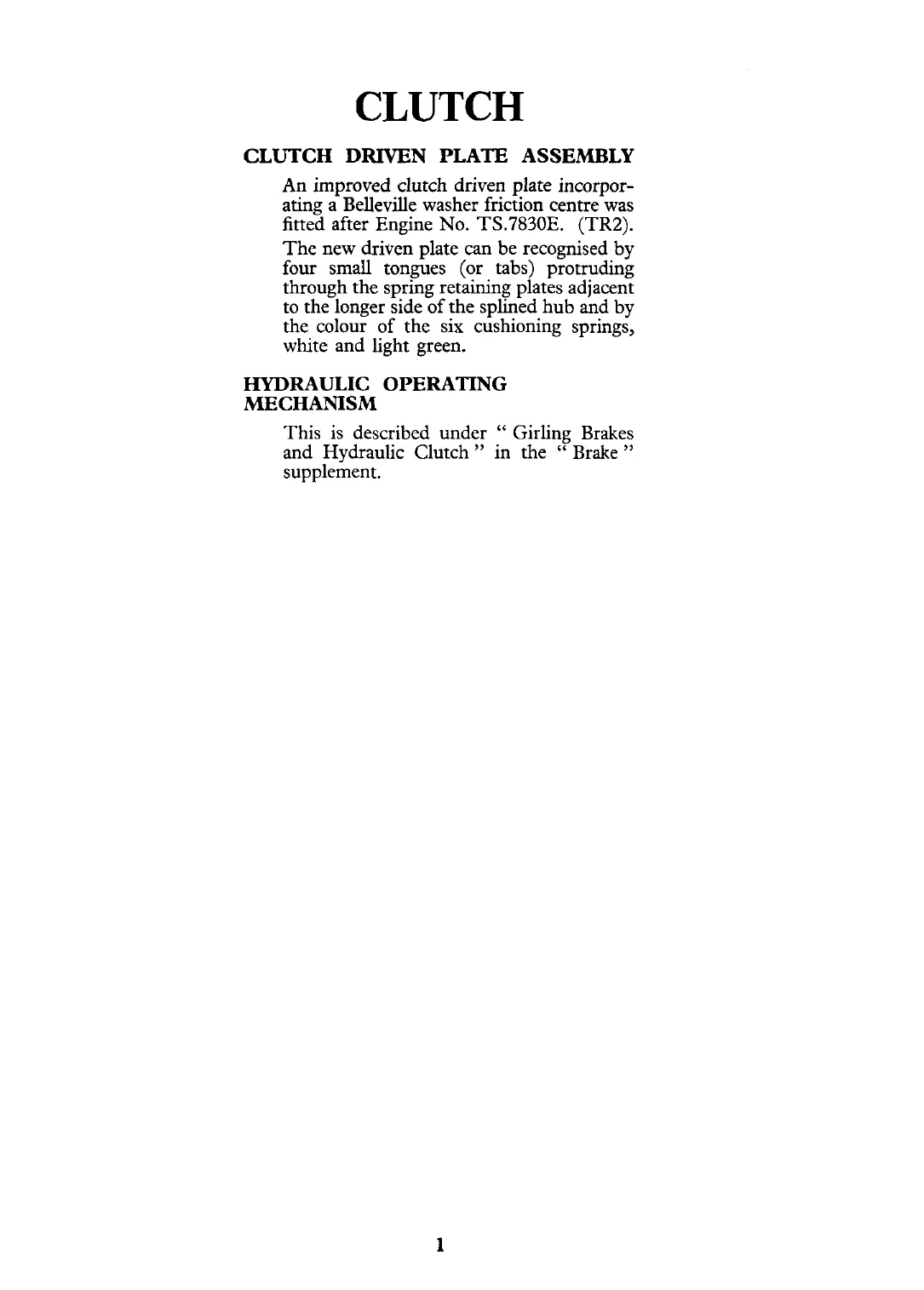

CLUTCH
CLUTCH
DRIVEN
PLATE
ASSEMBLY
An improved clutch driven plate incorpor-
ating a Belleville washer friction centre was
fitted after Engine No.
TS.7830E.
(TR2).
The new driven plate can be recognised by
four small tongues (or tabs) protruding
through the spring retaining plates adjacent
to the longer side of the
splined hub and by
the colour of the six cushioning springs,
white and light green.
HYDRAULIC
OPERATING
MECHANISM
This is described under
"
Girling Brakes
and Hydraulic Clutch
"
in the
"
Brake
"
supplement.
