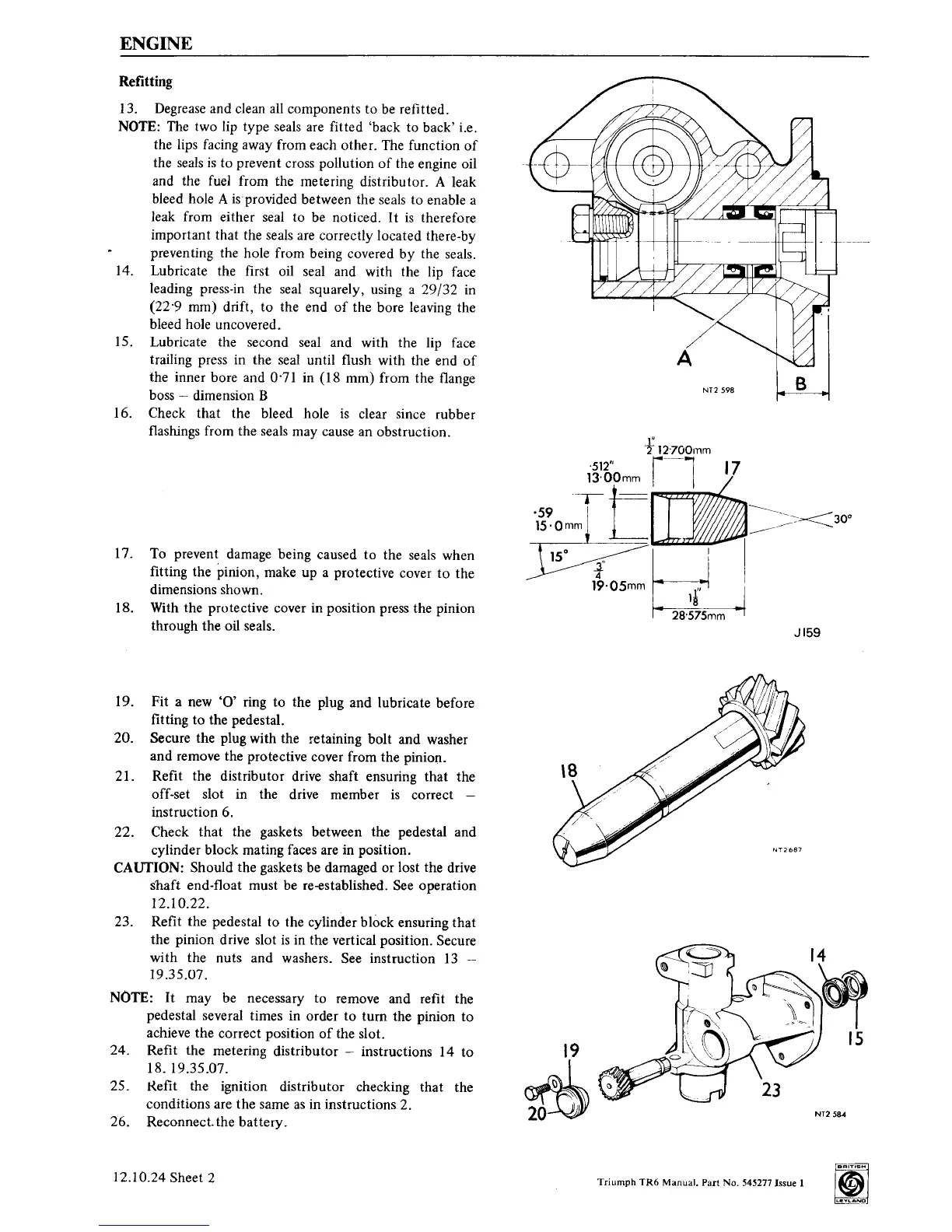

ENGINE
Refitting
13. Degrease and clean
all
components to
be
refitted.
NOTE: The two lip type seals are fitted 'back to back'
Le.
the lips facing away from each other. The function
of
the seals
is
to prevent cross pollution
of
the engine oil
and the fuel from the metering distributor. A leak
bleed hole A
is
provided between the seals to enable a
leak from either seal to be noticed.
It
is
therefore
important that the seals are correctly located there-by
preventing the hole from being covered by the seals.
14. Lubricate the first oil seal and with the lip face
leading press-in the seal squarely, using a 29/32 in
(22'9 mm) drift, to the end
of
the bore leaving the
bleed hole uncovered.
15. Lubricate the second seal and with the lip face
trailing press in the seal until flush with the end
of
the inner bore and 0'71 in (18 mm) from the flange
boss
- dimension B
16. Check that the bleed hole
is
clear since rubber
flashings from the seals may cause an obstruction.
17. To prevent damage being caused to the seals when
fitting the pinion, make up a protective cover
to
the
dimensions shown.
18. With the protective cover in position press the pinion
through the oil seals.
19. Fit a new
'0'
ring to the plug and lubricate before
fitting to the pedestal.
20. Secure the plug with the retaining bolt and washer
and remove the protective cover from the pinion.
21. Refit the distributor drive shaft ensuring that the
off-set slot in the drive member
is
correct -
instruction 6.
22.
Check that the gaskets between the pedestal and
cylinder block mating faces are in position.
CAUTION: Should the gaskets be damaged or lost the drive
shaft end-float must
be
re-established. See operation
12.10.22.
23. Refit the pedestal to the cylinder
block ensuring that
the pinion drive slot
is
in the vertical position. Secure
with the nuts and washers. See instruction
13
-
19.35.07.
NOTE:
It
may be necessary to remove and refit the
pedestal several times in order
to
turn the pinion to
achieve the correct position
of
the slot.
24. Refit the metering distributor
- instructions 14 to
18.19.35.07.
25. I{efit the ignition distributor checking that the
conditions are the same
as
in instructions 2.
26. Reconnect.the battery.
12.10.24 Sheet 2
1"
212'7001'111'11
i3'(;Omm
~l
17
-,--t
.
59
------.~-~~
300
15·01'111'11
............
~-~-><::::::
~'
l,~:1
I
4 I
19·051'111'11
lr~
28'5751'111'11
JI59
Triumph
TR6
Manual. Part No. 545277 Issue 1
