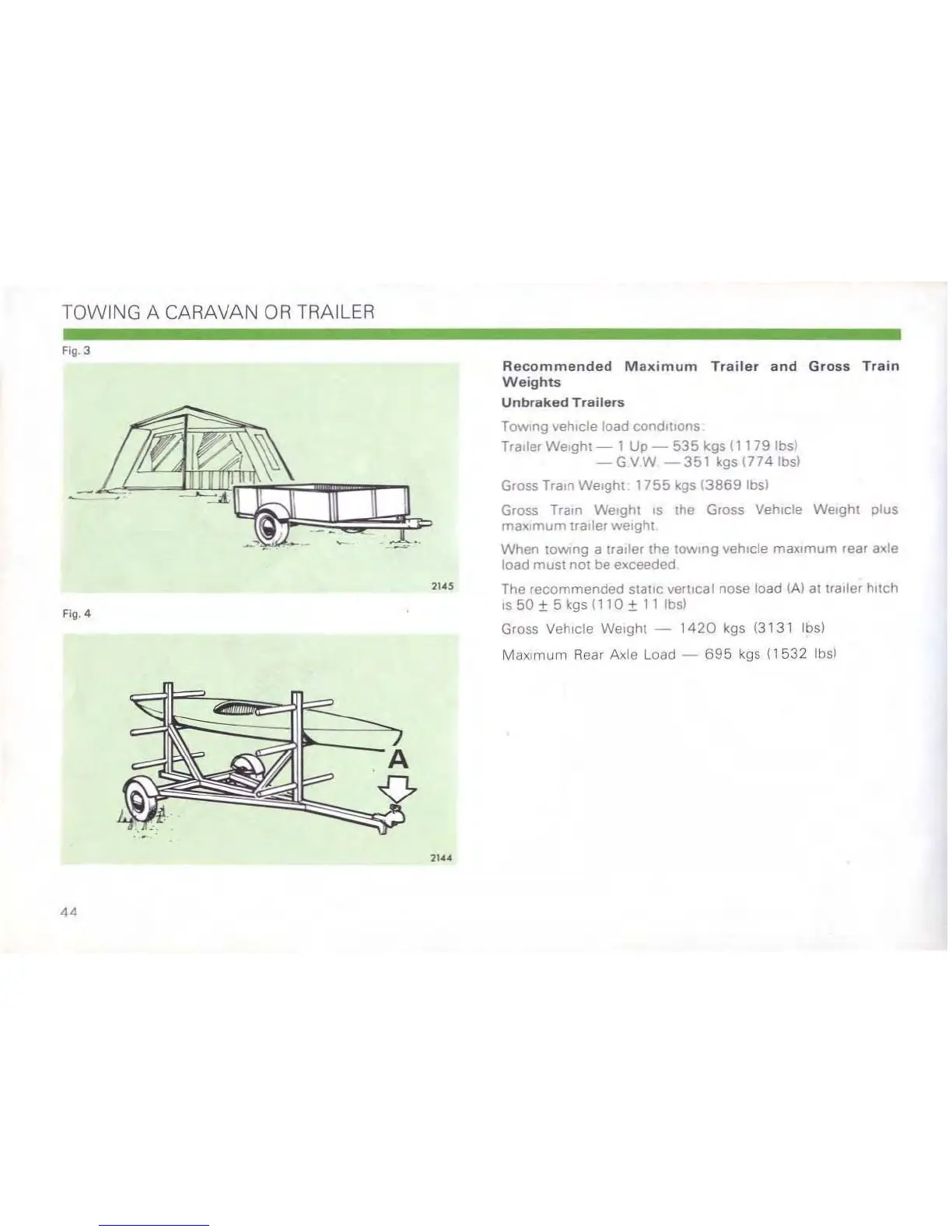

TOWING A CARAVAN OR TRAILER
Fig.3
Fig. 4
44
Recommended Maximum Trailer and Gross Train
Weights
Unbraked Trailers
Towing vehicle load conditions
Trailer Welghl- 1 Up - 535 kgs t 1179 Ibsl
-GVW -351 kgs(774Ibs)
Gross Train Welghl 1755 kgs (3869 lbsl
Gross Tram Weight IS the Gross Vehicle Weight plus
maxImum uailer weight
When towing a trailer the lowrng vehicle maxImum fear axle
load
must nO! be exceeded
The
recommended stallC vertical nose load (AI al trailer hitch
IsSO±5kgs(110± l1lbs)
Gross Vehicle Weight - '420 kgs (3131 Ibsl
Maximum Rear Axle Load - 695 kgs (1532 Ibsl
