No. Description
Trojan 30+ No.
Description
Trojan 30+
1 Hopper Assembly 14610-2 17 Impeller Shaft Bearing* 14312-1
1A Hopper* 14604 18 Drive Wheel 15032
2 Discharge Chute* 14623 19 Leg 15189
3 Discharge Chute Knob (2)* 14001 20 Impeller Shaft 15036
4A Shutoff Plate Guide-RH.* 14622 21 Pinion Gear 14833
4B Shutoff Plate Guide-LH.* 14621 22 Axle Gear 15027
5 Shutoff Plate* 13353 23 Gear Cover (2) 15012
6 Handle Lever Ass’y w/ Chain 14047 24 Gear Cover Clamps (3) 14868
7 Handle Grip (2) 14870 25 Gear Support 15028
8 Upper Handle 14907 26 Axle Collar w/ Set Scr. 14063
9 Control Tube 14916 27 Axle 15037
10 Screen Clips (2) 14022 28 Axle Bearing (4) 14933
11 Hopper Screen 14603 29 Frame Assembly 15184
12 Handle Brace 15188 30 Impeller 14625
13 Rate Plate* 15191 31 Free Wheel 15033
14 Rate Control Knob* 12704 32 Agitator 14510
15 Pointer* 12708 33 Fastener Package 15035-1
16 Spring Housing Assembly* 12702-2 34 Hopper Cover 14606-1

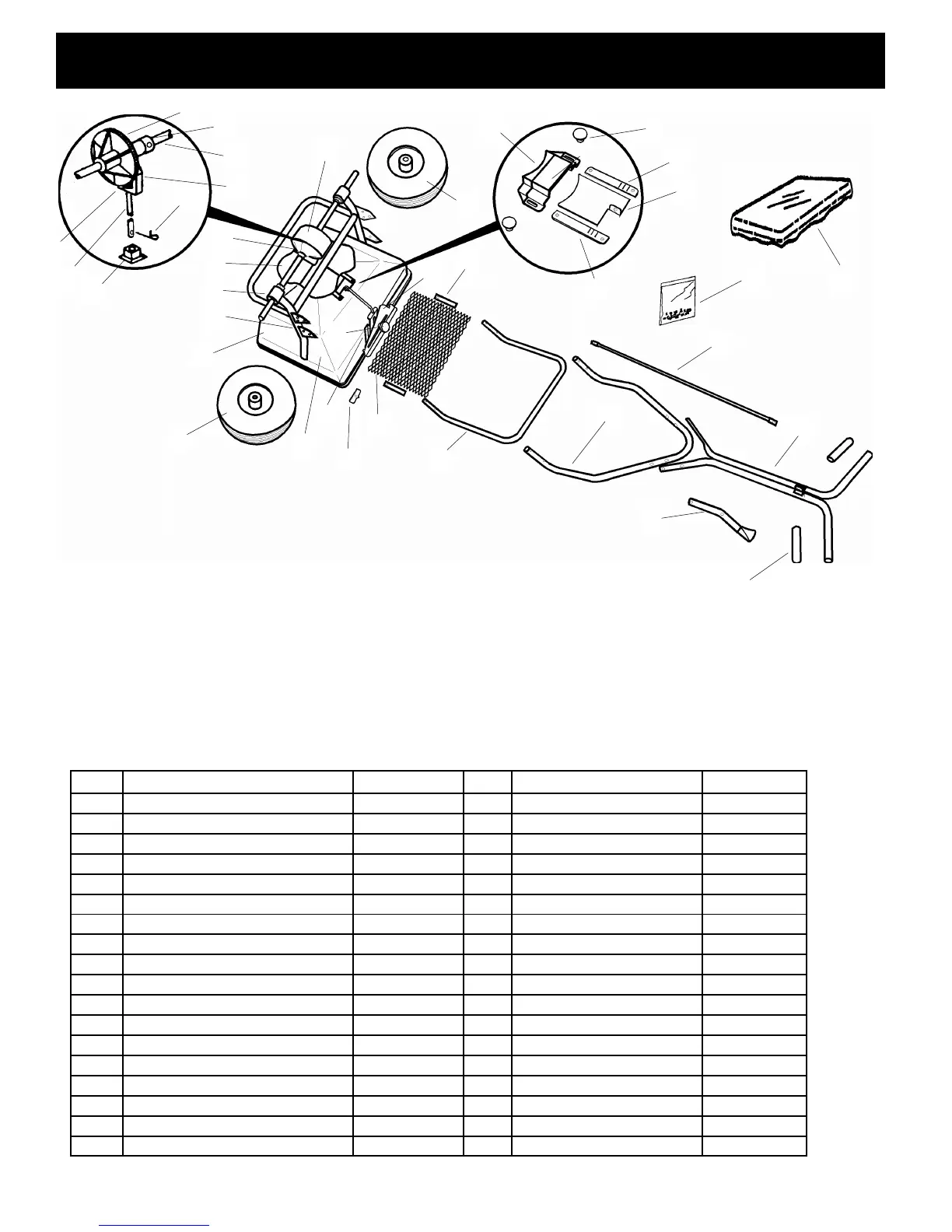

Parts List
1. SPREADER MODEL NUMBER
2. SPREADER NAME
3. PART NUMBER
4. NAME OF PART AS SHOWN
IF YOUR LOCAL
DISTRIBUTOR CANNOT
SUPPLY PARTS,
CONTACT:
*Parts included in hopper assembly
PART OF OUR SERVICE IS
PROVIDING REPLACEMENT PARTS.
Parts may be obtained through your
local distributor. Be sure to give:
23
22
21
18
25
26
27
31
20
30
28
29
17
32
14
3
4
6
33
4
13
10
8
9
7
15
12
11
16
19
1
1
5
2
24
34
