INSTALLATION (Cont.)
Cable Sizing:
Battery cables should be sized to handle the
expected load. Refer to Trojan
®
GC2 48V Lithium-Ion
User’s Guide for the maximum amperage based
on the cable gauge size.
Parallel Connection:
System Voltage: 48V
System Capacity: 60Ah
System Voltage: 48V
System Capacity: 90Ah
Do NOT install
batteries in re-
verse polarity.
This may per-
manently
damage the bat-
tery.
Do NOT install
batteries in
Series. This may
permanently
damage the bat-
tery.
SAFETY
·
Turn batteries off during installation.
·
Wear proper personal protective
equipment (eye protection and gloves).
·
Use insulated tools.
·
Do not wear jewelry or other metallic
objects when handling batteries.
·
Keep sparks and flames away from
batteries. This includes sources of
static electricity.
·
Use battery lifting strap
·
Use cables of appropriate length and gauge.
(See Trojan
®
GC2 48V Lithium-Ion
User’s Guide for specific cable sizes)
·
Ensure the charger is set as recommended.
(See Trojan
®
GC2 48V Lithium-Ion User’s
Guide for charger recommendations)
·
Prior to connecting, make sure the charger
is off or disconnected.
·
Do not attempt to open the battery case.
·
Review product warning labels and
Trojan
®
GC2 48V Lithium-Ion User’s Guide
For more detailed installation instructions,
refer to Trojan
®
GC2 48V Lithium-Ion User’s Guide

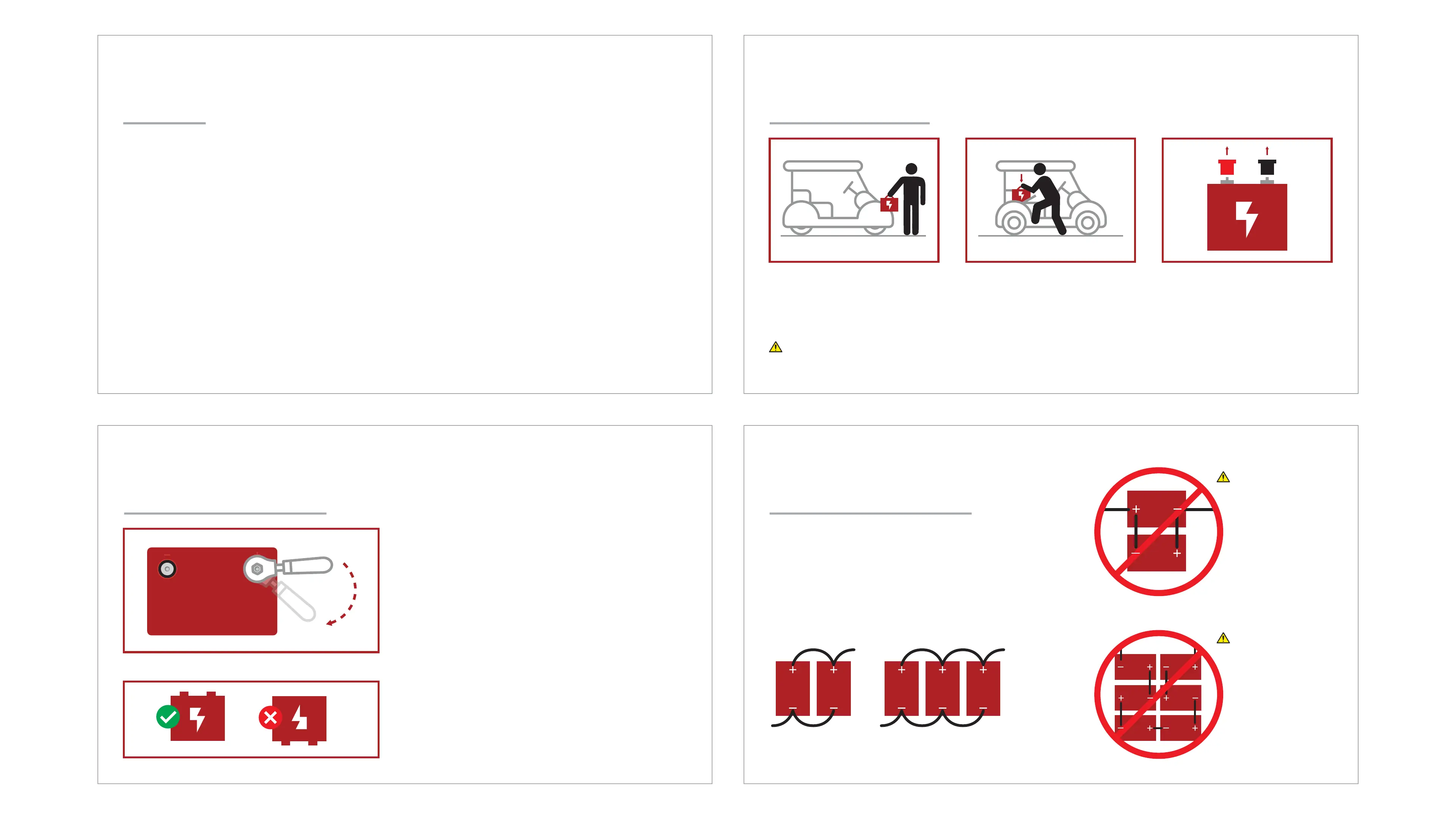

INSTALLATION
·
Use a lifting strap to attach to
lifting brackets on battery for
easy handling.
·
Place GC2 48V Lithium-Ion in
golf vehicle battery compartment.
·
Remove protective terminal
caps before installing.
INSTALLATION
Cable Connections:
·
Tighten all cable connections to the proper
specification to make sure there is good contact
with the terminals. Over-tightening can result in
terminal breakage.
Terminal Torque:
·
80-90 in-lbs (9-10 Nm)
Orientation:
·
Batteries should only be installed in a vertical
orientation with the terminals pointing up.
TOP
