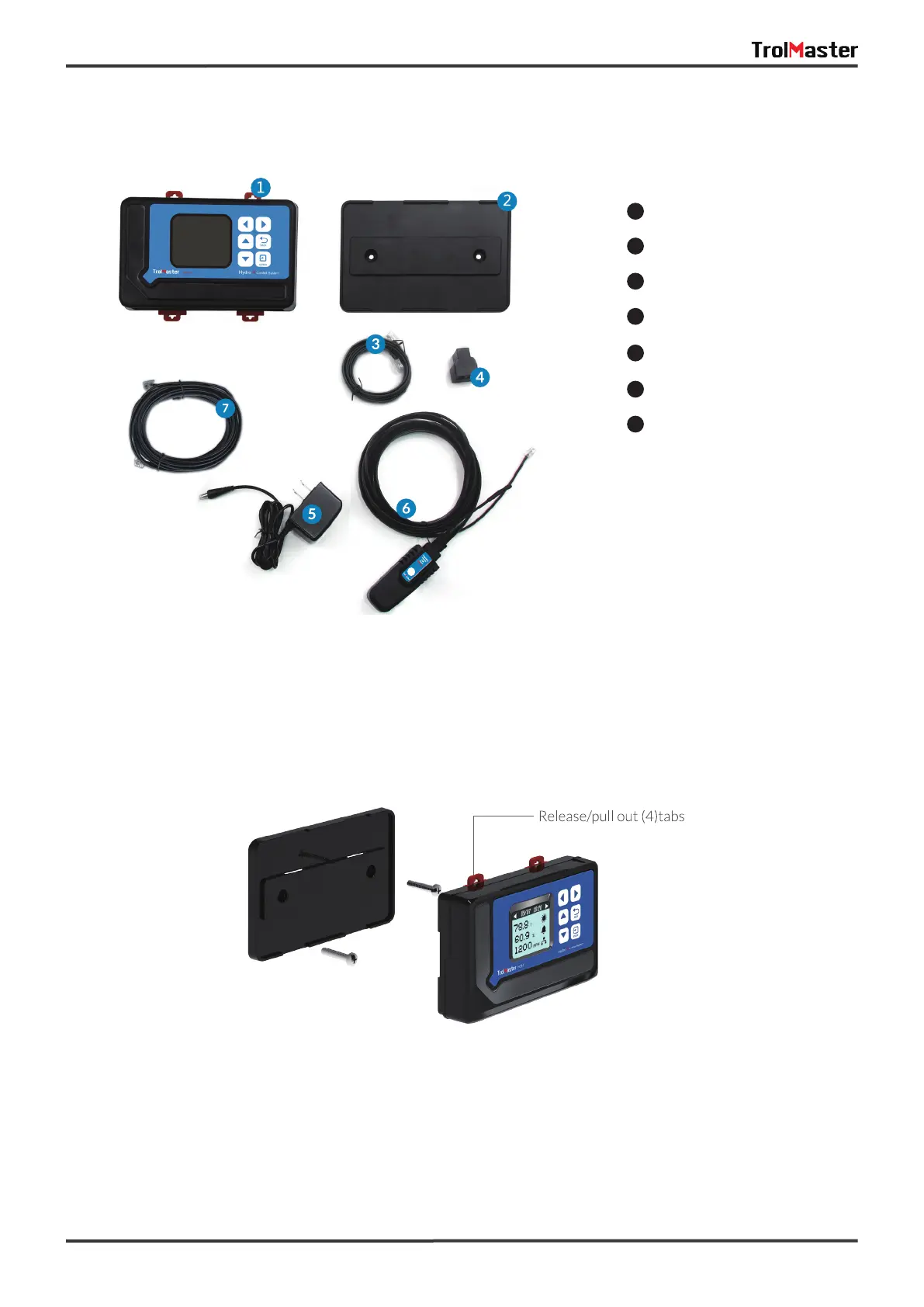

Determine where to locate the main controller. The controller comes with a simple to use DlN type bracket.
Pull the 4 tabs outward to release the bracket from the unit, mount the bracket to a wall or surface, place the
unit back on the bracket and press the 4 tabs back in to lock the unit in place. The interconnecting RJ12
communication cables are available in different lengths, select the correct length for your application. The
HCS-1 Hydro-X Control System is supplied with a 4ft and 16ft cable. These interconnecting RJ12 cables are
also available in lengths of 25ft and 50ft. Select the correct length for your application.
INSTALLATION
COMPONENTS
03
Controller
Back Plate (Bracket)
4 ft RJ12 Cable
T-Shape Splitter
12VDC Power Supply
3-in-1 Sensor
16 ft RJ12 Cable
4
1
5
2
6
3
7
