1. Power Connection:
Connect the plug-in power supply to the power (DC) connector.
2. Sensor connection:
Connect the RJ12 cable to the SENSORS connector and connect to a splitter on the other end. Plug the
3-in-1 sensor to the splitter for connection. The other connector on the splitter can be used to continuously
connect to the next splitter. Connect a CO2 sensor to the 2nd splitter. Repeat the procedure and connect one
or more smoke detector(s) if needed. Press the small button on the smoke detector, the Hydro-X will
automatically assign an address to the unit sequentially.
3. Device Station Connection (main controller needs to be powered on)
Connect the cable going from the DEVlCES connector to the first Device Station to be connected. Use the
T-shape splitter and short RJ cable so that the first cable can continue on to be connected to the next
T-shape splitter (Device Station) to be connected. Plug the Device Station to the wall outlet for power supply.
Press the small button on the device station, the system will automatically assign an address to the device
station in sequence. Repeat this process until all device stations are connected to the main controller.

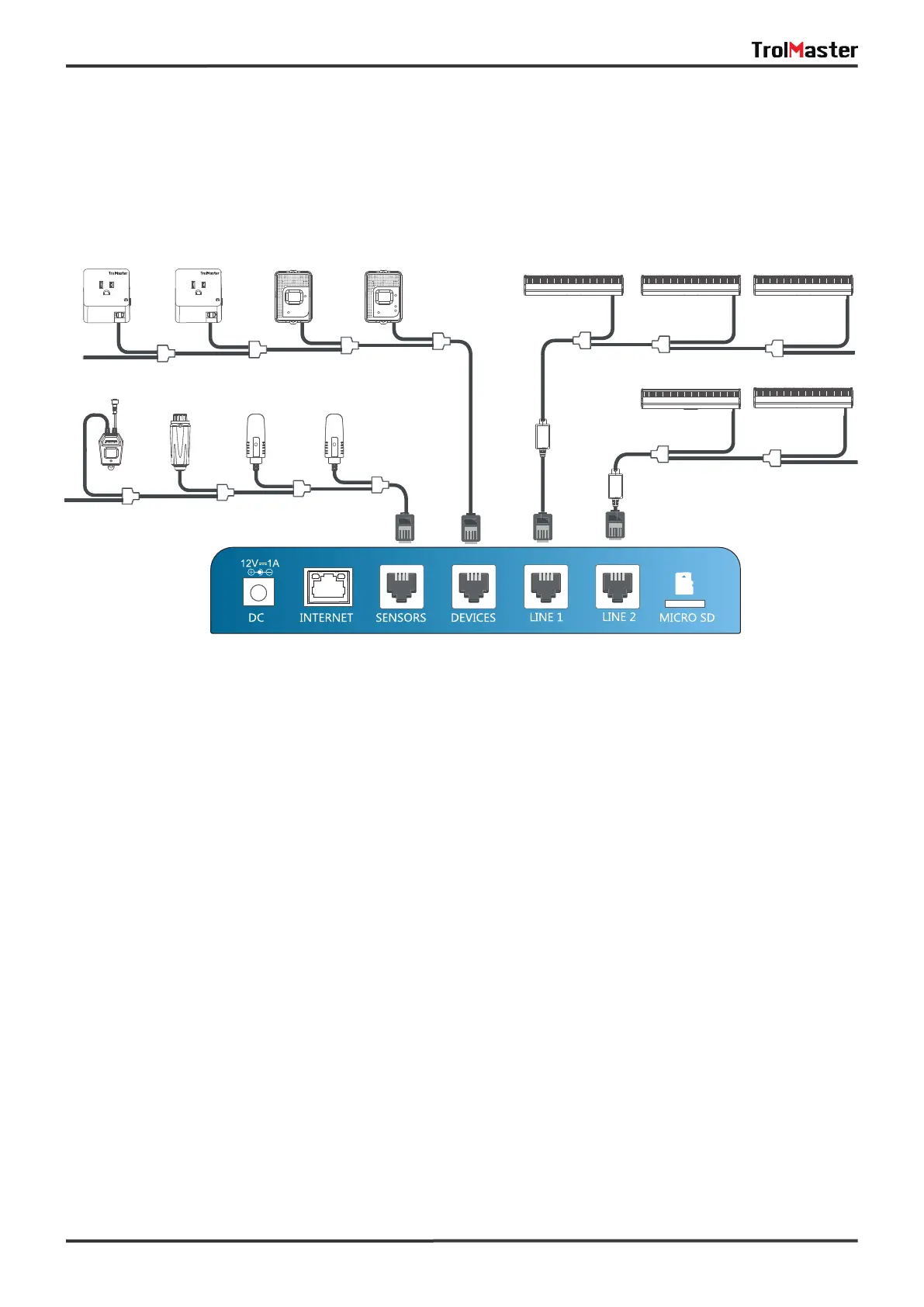

CONNECTIONS
04
Program Device
Stations
Water Device
(WD-2)
Somke Detector
(MBS-SD)
CO2 Sensor
(MBS-S8)
3-in-1 Sensor
(MBS-TH)
Lighting Adapter
Line 1
Line 2
Lighting Adapter
CO2 Device
Stations
Humid Device
Stations
Temp Device
Stations
To Next Page
