R9T15FIRE
Page 11 of 16
Rev. D 04JAN19

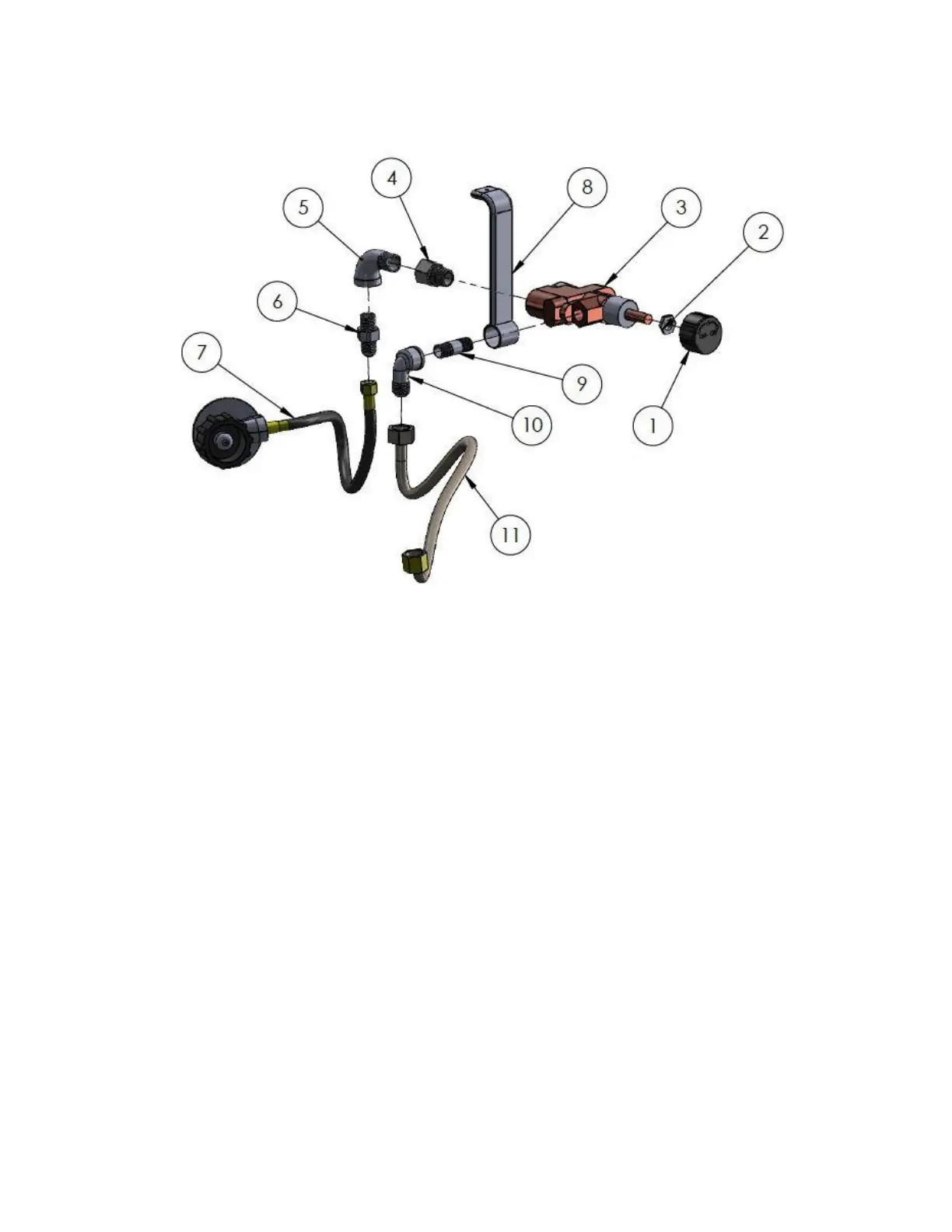

INTERNAL CONTROLS
(401601RD, 401601SQ, 401801SQ, AND 401801RCT BASE)
PARTS LIST
Item No.
Description
Part No.
1
Knob, Black, for Gas Valve
R01MS102
2
Nut, Retaining, M1 for Gas Valve
R02NU501
3
Gas Valve
R18VL100
4
Brass Adapter, 3/8”
R15CO111
5
Elbow, 3/8” M x 3/8” F
R15CO100
6
3/8” Flare x 3/8” MIPT
R18CO108
7
Gas Hose with Regulator, 3/8” x 12” Long
Gas Hose with Regulator, 3/8” x 36” Long
R18FH100
R18FH103
8
Gas Plumbing Support Weldment
W401442FPSGV
Gas Plumbing Support Weldment
Gas Plumbing Support
W401443FPSGV
R15MS310
9
Nipple, 3/8” x 1.5”
R15SP101
10
1/2” x 1/2" FIP 90
R15CO101
11
Gas Flex Line, 24” x 1/2"
R15SP100
