tropitone 401601RD - Page 12

R9T15FIRE
Page 12 of 16
Rev. D 04JAN19

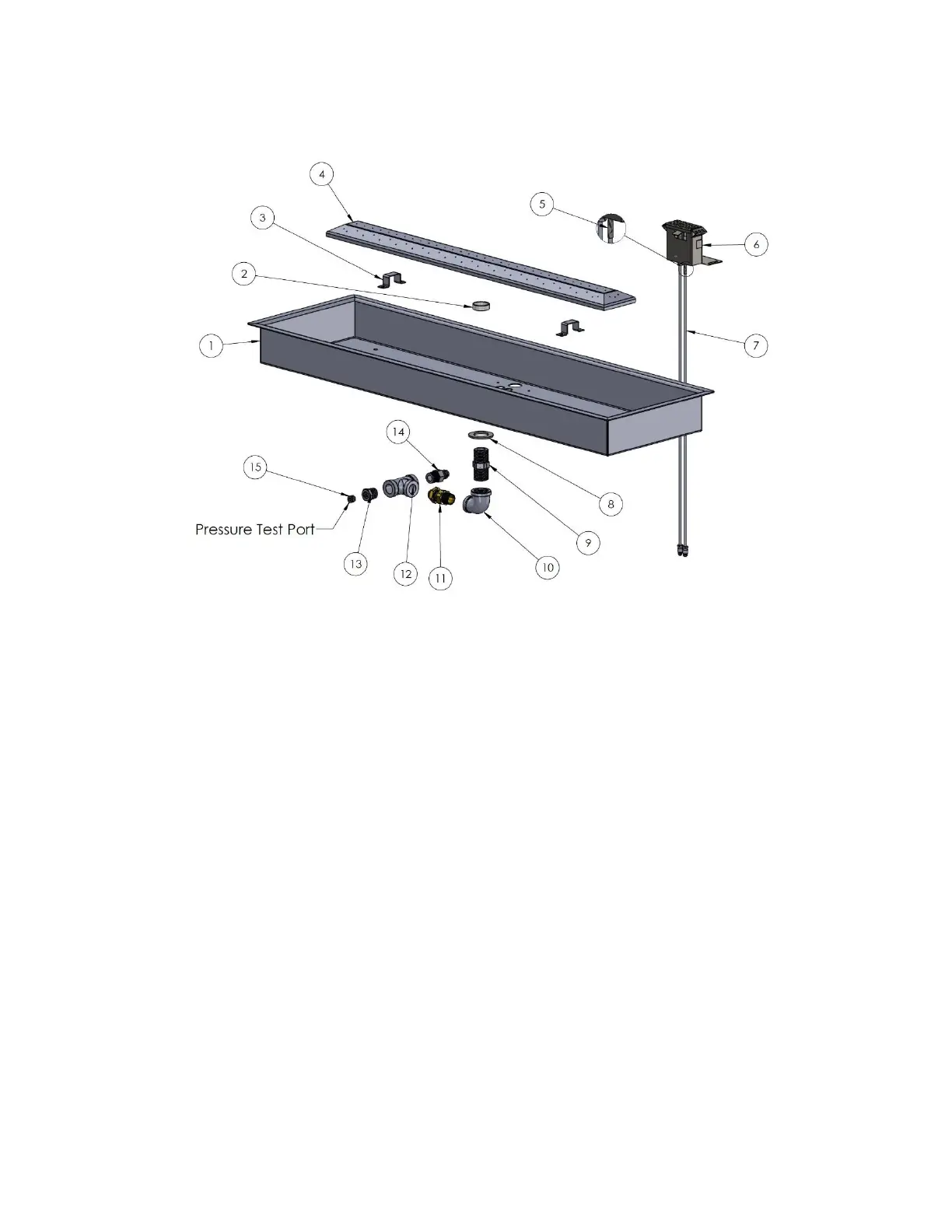

BURNER TRAY AND CONTROLS
(401600RCT AND 401701RCT BASE)
PARTS LIST
Item No.
Description
Part No.
1
Burner Tray, 30” x 8” Rectangular
R15MS308
2
Spacer
M401767FPS
3
Rectangular Burner Support
R15MS309
4
Rectangular Stamped Burner
STMPBA243
5
Electrical Insulation, Silicone/Fiberglass
R19NS100
6
Blow Out Box Assembly
R19NT107
7
Pilot & Thermocouple Assembly
R19TC101
8
Washer, 1.500 OD x .890 ID x .090
R02WA880
9
Nipple, 1/2" Stainless Steel
R15CO106
10
Elbow, 1/2" FPT x 3/8” FPT
R18CO120
11
3/8” LP Gas/Air Mixer
R18VL101
12
3/8” FPT – “TEE”
R15CO109
13
3/8" MPT x 1/8” FPT Reducing Bushing
R15CO110
14
1/2" Flare x 3/8” MIP Flare, Half Union
R18CO107
15
Solid Hex Socket Plug with Thread Sealant
R02SC443
