Operating manual – laser distance measuring device BD21 / BD26

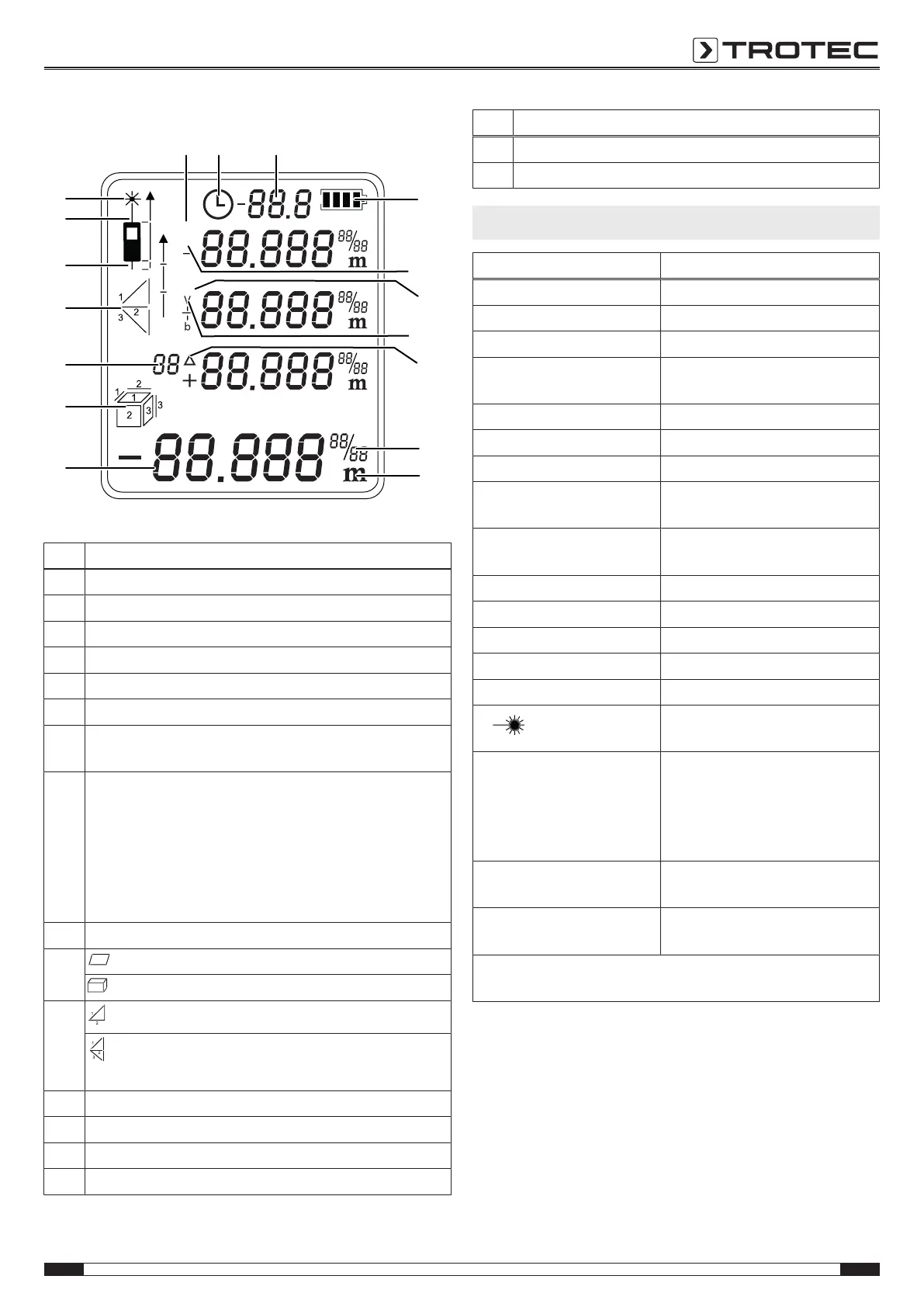

Display
max
min
H
a
a
b
b
18
19
20
21
22
23
24
25
27
26
28
29
30
31
32
33
34
No. Display element
18 Battery status
19 Horizontal measuring distance
20 Measured minimum value
21 Vertical measuring distance
22 Delta = maximum minus minimum
23 Complementary display when using imperial units
24 Display of the selected unit. Possible units are:
ft
3
, ft
2
, in, m, m
3
, m
2
25 Measurement value display:
The lower measurement value display indicates the last
measured value or the result of a calculation.
The three upper measurement value displays contain the
past three measured values, the minimum and
maximum value or the measured values to be added or
subtracted.
26 History and timer indication
27 Area measurement
Volume measurement
28
Indirect measurement (two auxiliary measurements)
Indirect measurement (three auxiliary
measurements)
29 Reference value rear
30 Reference value front
31 Laser active
32 Measured maximum value
No. Display element
33 Timer indication
34 Inclination angle indication
Technical data
Parameter Value
Model: BD21 / BD26
Weight: 150 g
Dimensions (H x W x D): 118 x 49 x 27 mm
Measuring range: BD21: 0.05 to 70 m
BD26: 0.05 to 120 m
Accuracy: ±2 mm*
Measuring range resolution: 1 mm
Horizontal measuring range: ±90°
Horizontal measuring range
accuracy:
±0.3°
Number of recordings
logged in the history:
10
Type of protection: IP54
Operating temperature: 0 °C to 40 °C
Storage temperature: -20 °C to 70 °C
Laser output: < 1 mW (620-690 nm)
Laser class: II
Ø | m
6 mm / 30 mm / 60 mm |
10 m / 50 m / 100 m
Power supply: 2x Alkaline LR6 AAA batteries,
1.5 V or NiMH 1.2V to 1.5V
(rechargeable batteries)
Battery life approx. 5000 to
8000 measurements
Automatic switch-off of the
device:
After approx. 3 minutes of
non-use
Automatic switch-off of the
laser:
After approx. 30 seconds of
non-use
*under favourable conditions (good target surface, room
temperature) up to 10 m
Scope of delivery
• 1 x Laser distance measuring device
• 2x Alkaline LR6 AAA, 1.5 V batteries
• 1x Device bag
• 1 x Wrist strap
• 1 x Quick guide
