Trotec PCSS 05-20V User Manual

8 EN
mini cordless portable circular saw PCSS 05-20V
Information about the device
Device description
The battery-powered device PCSS 05-20V is suited for
producing longitudinal and cross cuts in wood, chipboards,
plastic and lightweight construction materials while using a
suitable saw blade and keeping base plate contact.
The cutting depth can be steplessly adjusted from0mm and
28.5mm.
The device operates at an idle speed of 3,150rpm.
The spindle lock allows for a simple exchange of the saw blade.
The device is equipped with a start lock preventing unintentional
switch-on of the device.
For an improved guidance, a rip fence can be mounted.
The battery comes with its own battery level indication. As a
result you can check the current charging status without having
to connect it to the device.

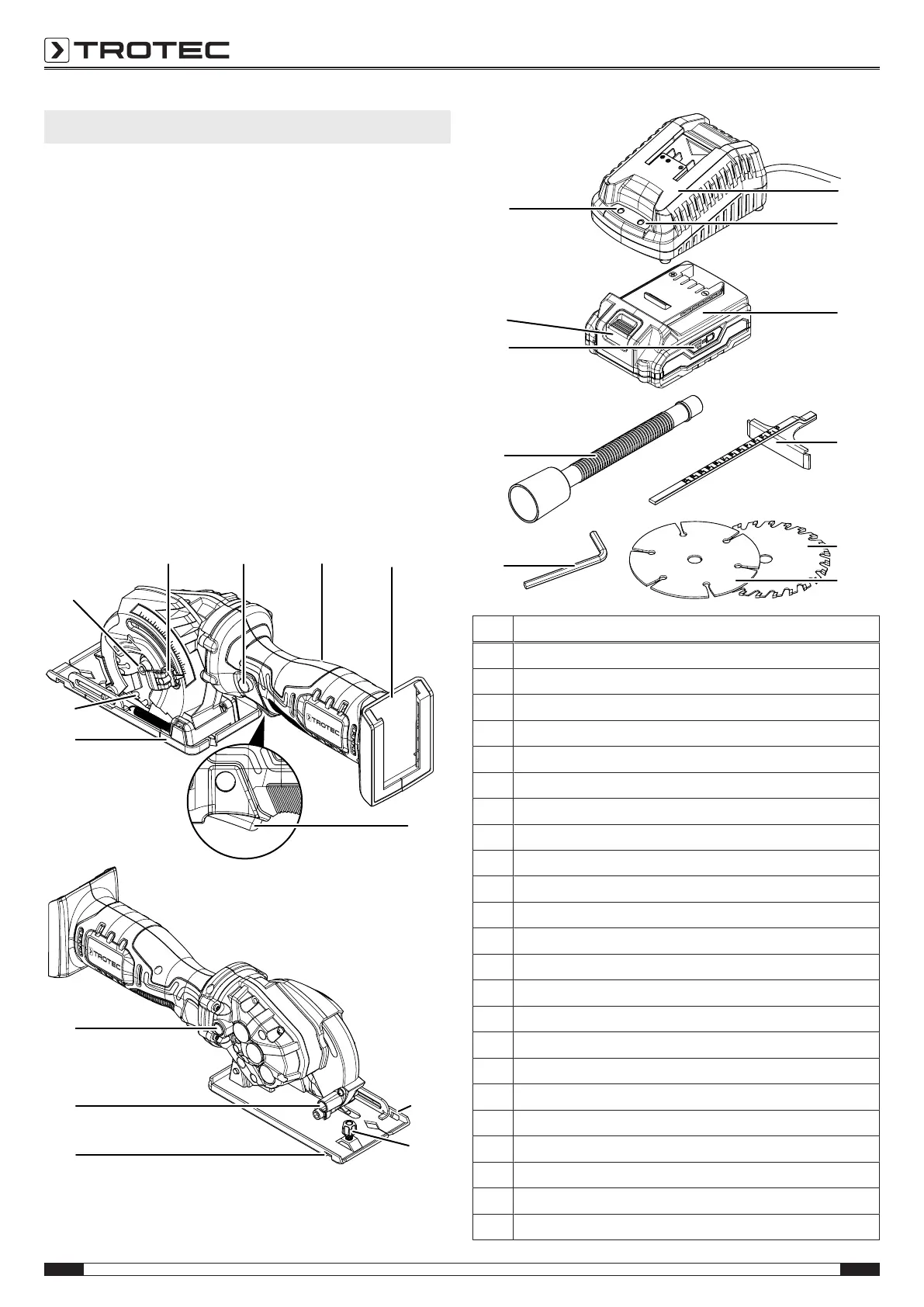

Device depiction
23
2
3
21
5
1
4
22
7
19
20
6
6
8
9
18
10
17
16
15
5
11
14
12
13
No. Designation
1 Locking lever for the cutting depth
2 Start lock
3 Handle
4 Battery holder
5 On/off switch
6 Rip fence holder
7 Wing screw for rip fence
8 Quick charger
9 Red battery LED (battery charging)
10 Battery
11 Rip fence
12 HSS saw blade
13 Diamond saw blade
14 Allen wrench
15 Adapter for dust extraction
16 3-stage battery level indication
17 Release button
18 Green battery LED (quick charger ready for operation)
19 Chip ejector
20 Spindle lock
21 Base plate
22 TCT saw blade
23 Clamping screw
