9 EN
cordless screwdriver with bit magazine PSCS 11-3,6V
Checking the battery status
The battery status is displayed as follows by the three LEDs of
the battery level indication(4):
LED colour Meaning
Green – Orange – Red maximum charge/ power
Orange – Red medium charge/ power
Red weak charge – Recharge the
battery.
1. Press the on/ off switch(11).
ð You can read the battery status from the battery level
indication(4).

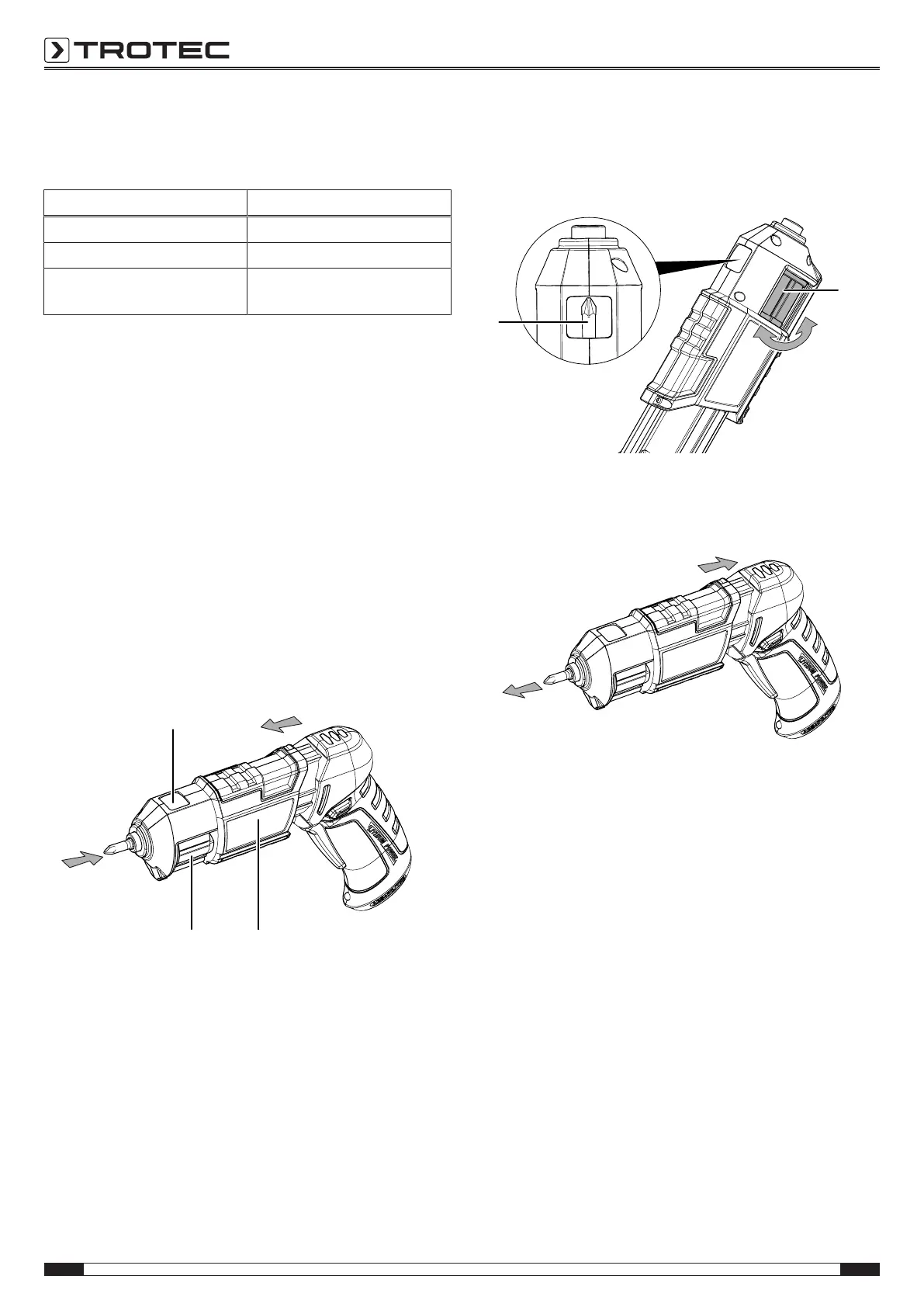

Changing tools
Note
To avoid damaging the gear, set the switch for
clockwise/ counter-clockwise rotation(5) to centre
position(lock). The on/ off switch(11) can also be
operated when the slide switch for bit exchange(3) is
pushed out.
The device is equipped with a bit magazine with locking
mechanism for hexagon bits. Please proceed as follows to
remove or insert tools:
1. Set the switch for clockwise/counter-clockwise rotation(5)
to centre position(lock).
2. Pull the slide switch for bit exchange(3) forward.
ð The current bit is pushed into the bit magazine(12).
3. Select the desired bit by rotating the bit magazine(12) to
the left or right.
ð The currently selected bit can be seen in the window(2)
in an enlarged view.
4. Pull the slide switch for bit exchange(3) back.
ð The current bit is pushed out of the bit magazine(12)
into the magnetic bit holder(1).
