Fire dampers
Dimensions and weight – FKR-EU/.../Z4* FKR-EU
1
K4 – 1.1 – 28
Dimensions
FKR-EU
with spring return actuator
Dimensions [mm] / Weight [kg]
Nominal size DN 315 355 400 450 500 560 630 710 800
ØD 314 354 399 449 499 559 629 709 799
Weight 8.2 8.7 9.9 16.7 19 20.6 23.9 28.3 31.3

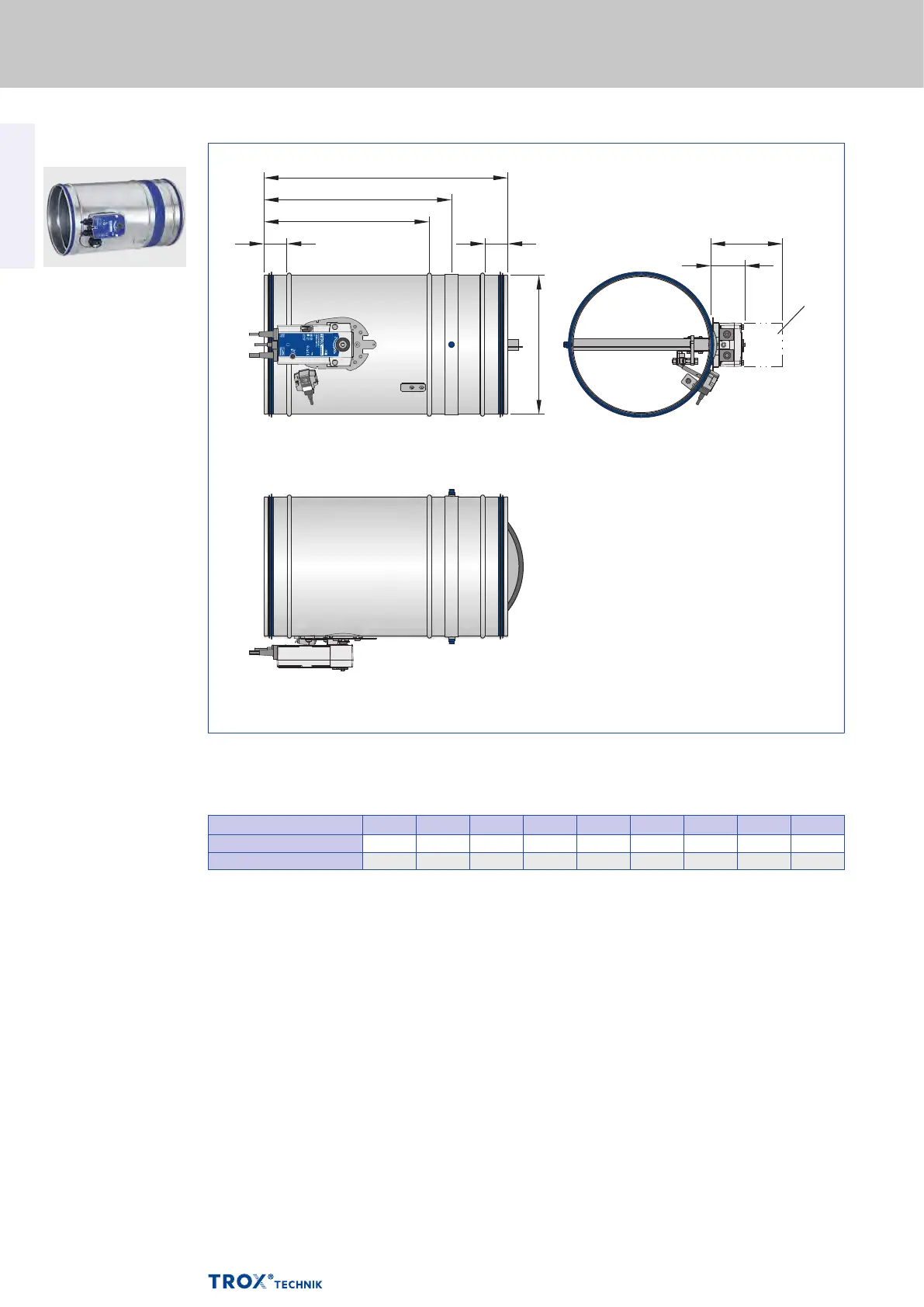

FKR-EU with spigot and spring return actuator
550
420
370
50 50
ØD
70
150
①
Illustration shows nominal sizes 315 - 400 mm ①Keepcleartoprovideaccessto
the spring return actuator
