Fire dampers
Dimensions and weight – FKR-EU-FL/.../ZEX* FKR-EU
1
K4 – 1.1 – 32
Dimensions
FKR-EU-FL with
explosion-proof spring
return actuator
Dimensions [mm] / Weight [kg]
Nominal size DN 315 355 400 450 500 560 630 710 800
ØD 314 354 399 449 499 559 629 709 799
Weight 12 12 14 19 21 23 26 31 34

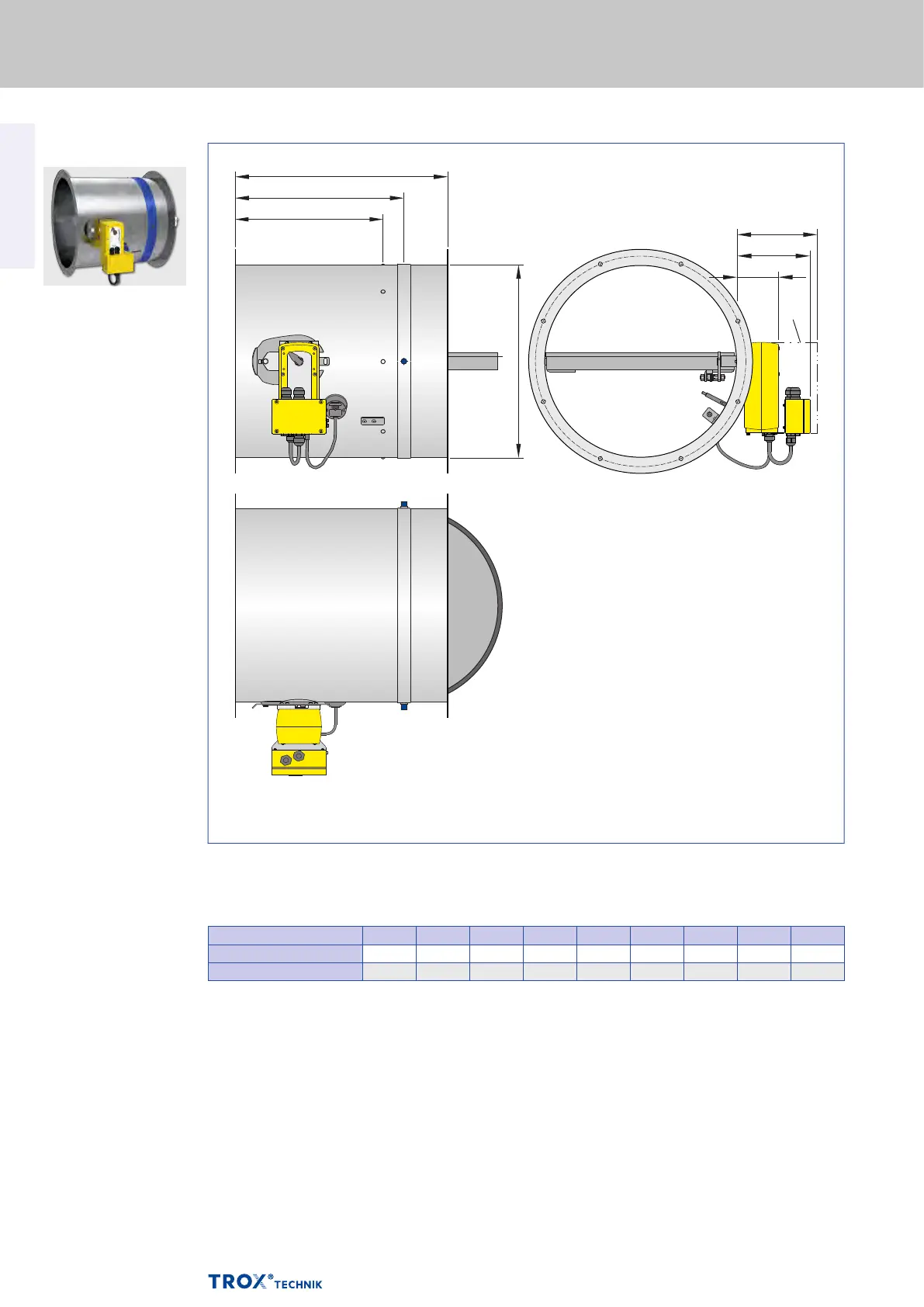

FKR-EU with flange and explosion-proof spring return actuator
Illustration shows nominal sizes 450 - 800 mm
93
166
~ 200
495
395
Ø D
342
①
①Keepcleartoprovideaccessto
the spring return actuator
