14 Section 6— Maintenance & adjuStMentS
5. Remove self tapping screw on right side of unit that
attaches to the flail screen. It may be necessary to remove
the hose bracket hanger to get access to the screw. See
Figure 6-3.

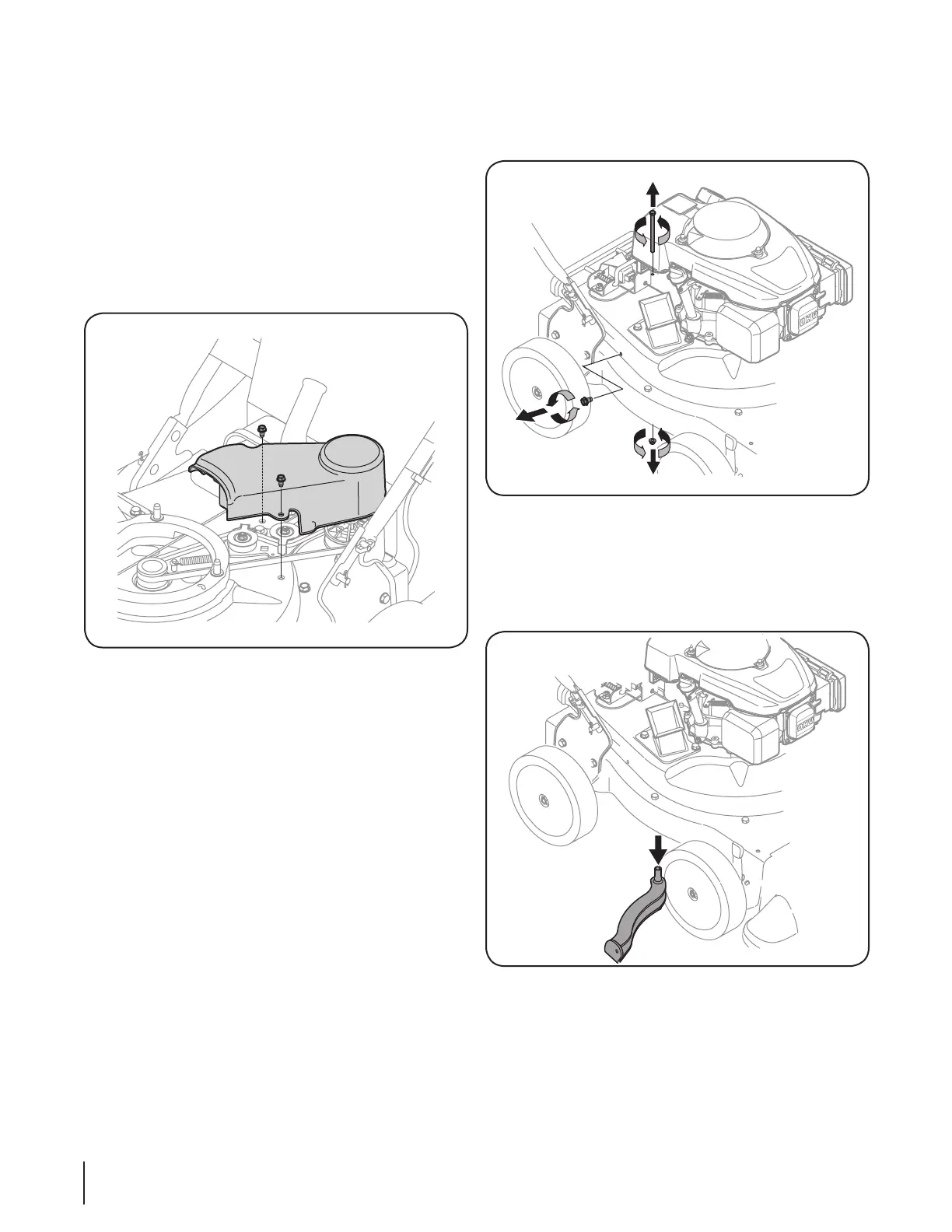

Figure 6-3
6. Remove hex screw on top of rear housing near mounting
bracket and the flange lock nut that secures flail screen.
See Figure 6-3.
7. Remove and clean the screen by scraping or washing with
water. See Figure 6-4.
Figure 6-4
8. Reinstall the screen.
Removing the Flail Screen
If the discharge area becomes clogged, remove the flail screen
and clean area as follows:
1. Stop the engine. Make certain the chipper/shredder
vacuum has come to a complete stop.
2. Before unclogging the discharge chute, disconnect and
ground the spark plug wire to retaining post.
3. Remove the vacuum bag from the unit as instructed in the
OPERATION section to obtain access to flail screen.
4. Remove the three self tapping screws securing the belt
cover, and remove belt cover. See Figure 6-2.
Figure 6-2
To Next Page
