8 Section 3 — ASSembly & Set-Up
2. Pull spring loaded pin out on the base and align pin with
the first hole (closest to the end of the tube) in the hose
adapter. See Figure 3-4B.
3. Release the pin to lock the hose in place.
4. Lay hose tubing in curved end of hose handle next to
chipper chute and into hose cradle. See Figure 3-5A & B.
B
A
C

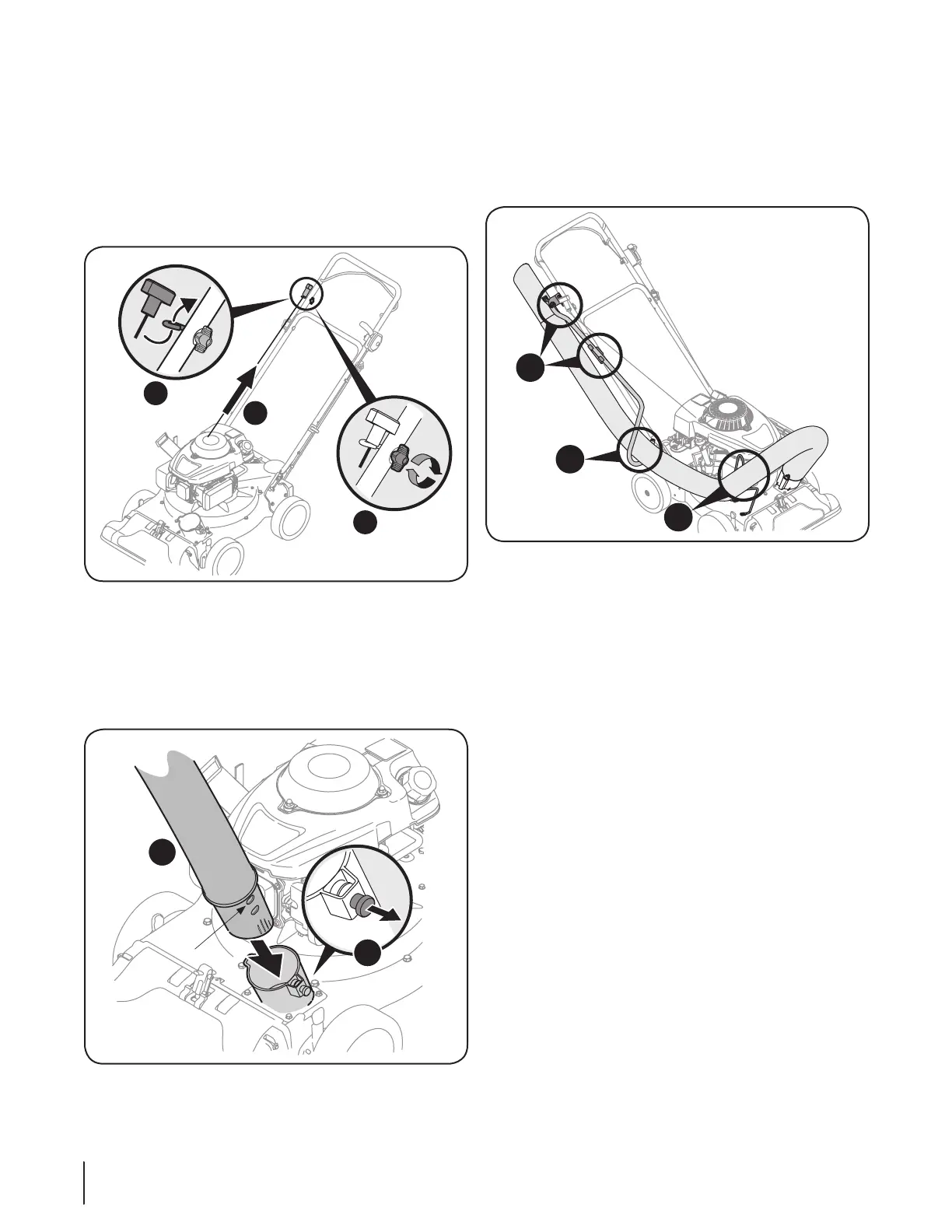

Figure 3-5
5. Snap the hose handle first into the upper hose handle
bracket and then into the lower hose handle bracket. See
Figure 3-5C.
4. Pull the two cable ties attached to the cables tight
approximately 8 inches from each cable end and place the
cables into the cable guide.
5. Loosen the wing nut that secures the rope guide to the
right side of upper handle.
a. Slowly pull starter rope out of engine.
b. Slip the starter rope into the rope guide. See Figure
3-3.
a
b
c
Figure 3-3
c. Tighten the wing nut.
Hose Assembly
1. Slide hose adapter of hose assembly into the base adapter
located on the left front of the chipper shredder vacuum.
See Figure 3-4A.
A
B
Align Pin
with this
Hole
Figure 3-4
