Remove the cotter pin from the end of the stabilizer rod
and slide the stabilizer out of the hanger bracket on the
deck. See Fig. 7-5.
Gently slide the cutting deck (from the right side) out from
underneath the tractor.
Changing the Deck Belt
WARNING! The V-belts found on your tractor are
specially designed to engage and disengage safely.
not disengaging completely. For a proper working
machine, use factory approved belts.
All belts on your tractor are subject to wear and should be
replaced if any signs of wear are present. To change or replace
the deck belt on your tractor, proceed as follows:
Remove the belt covers by removing the hex washer 2.
the deck lift arm. See Fig. 7-3.
7.
Move the deck lift lever into the top notch to raise the deck 8.
lift arms up and out of the way.
Carefully remove the deck engage cable from the rear of
the cutting deck by removing the bow-tie cotter clip that
secures it. Remove the spring from the deck idler bracket.
Deck Lift
Arm
Deck Support
Pin

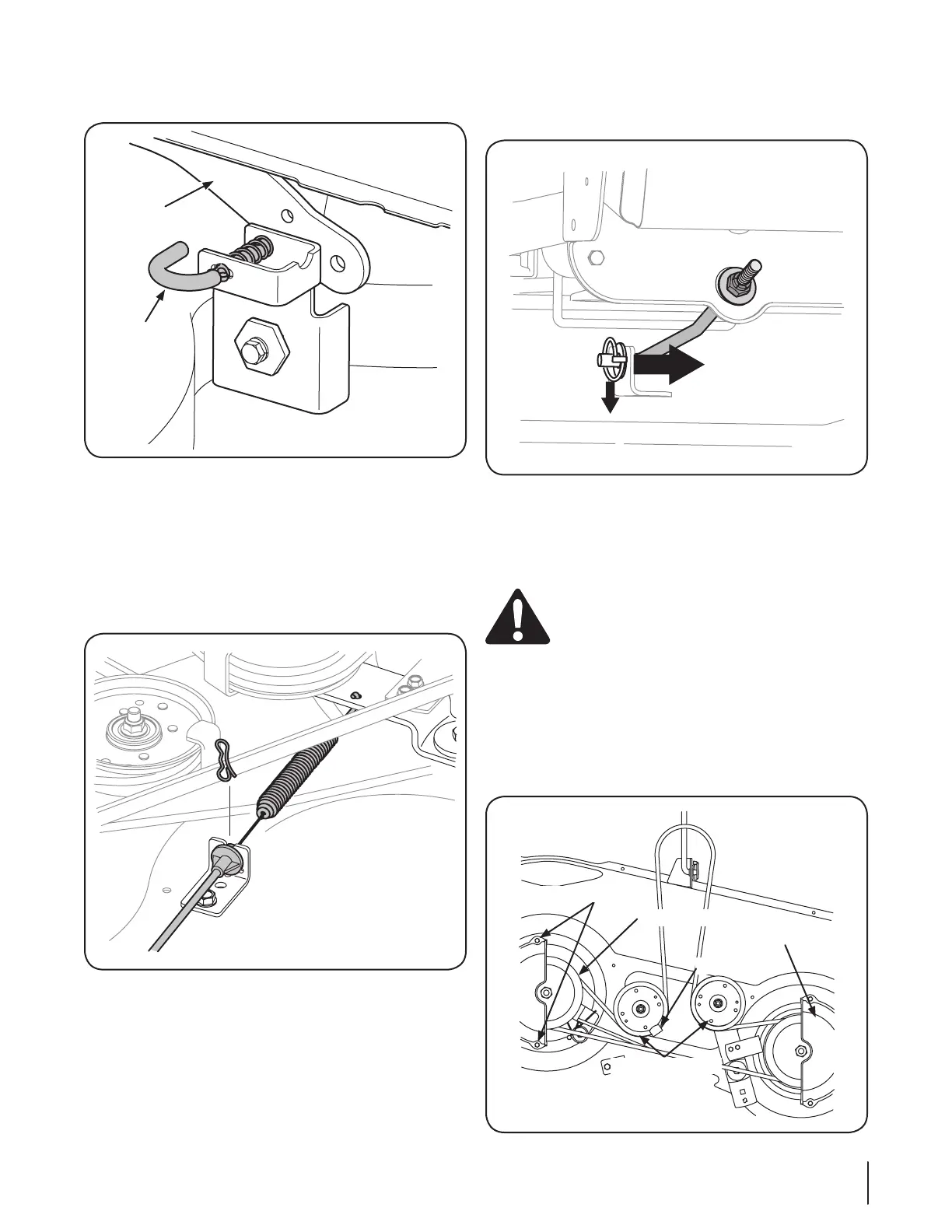

Figure 7-3
Figure 7-5
Figure 7-4
Hex Washer Screws
Belt Cover
Deck Idler Pulley
Spindle Pulley
Belt Guard
Figure 7-6
