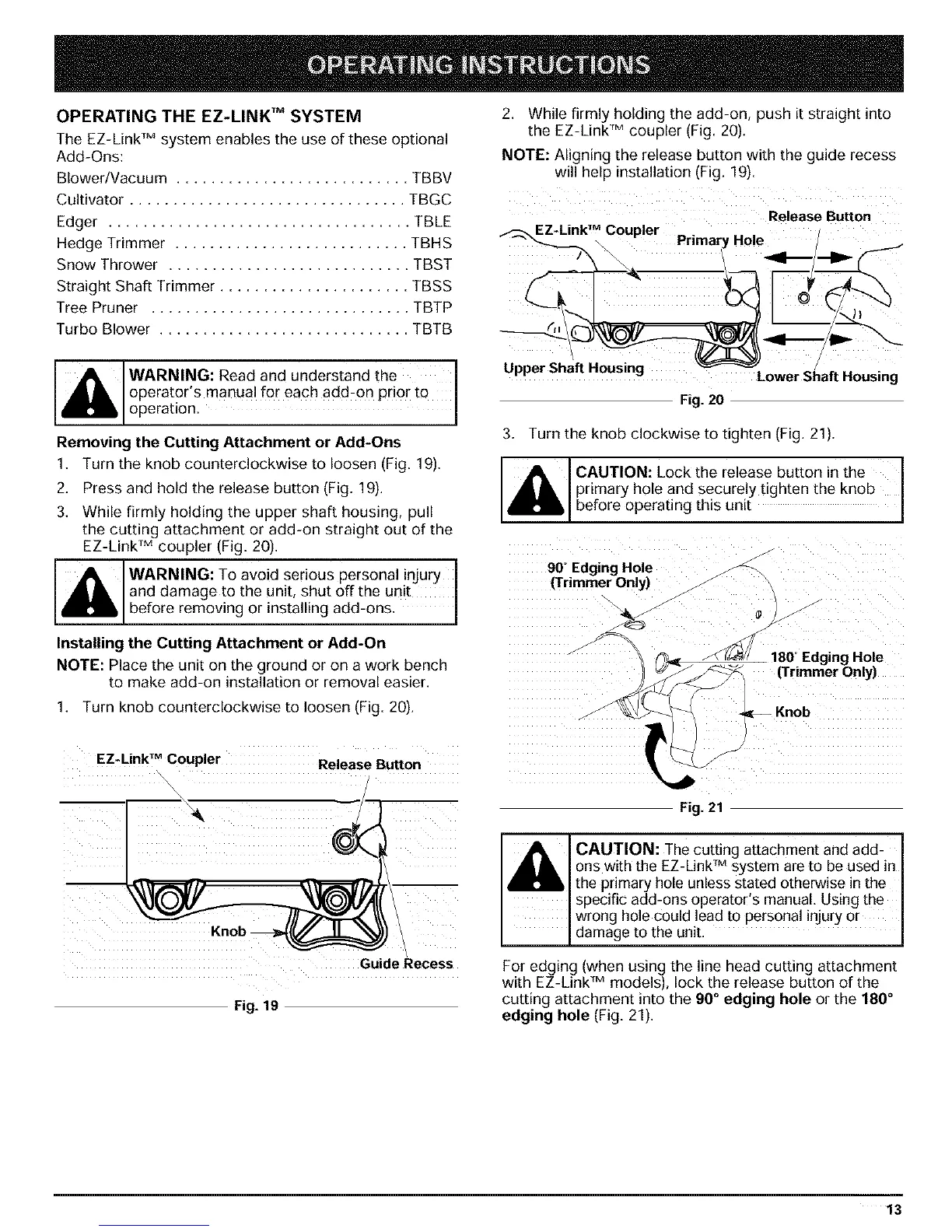

OPERATING THE EZ-LINK TM SYSTEM
The EZ-Link TM system enables the use of these optional
Add-Ons:
Blower/Vacuum ........................... TBBV
Cultivator ................................ TBGC
Edger ................................... TBLE
Hedge Trimmer ........................... TBHS
Snow Thrower ............................ TBST
Straight Shaft Trimmer ...................... TBSS
Tree Pruner .............................. TBTP
Turbo Blower ............................. TBTB
_IWARNING: Read and understand the I
operator s manual rOt eac h add:0n prior to
operation.
Removing the Cutting Attachment or Add-Ons
1. Turn the knob counterclockwise to loosen (Fig. 19).
2. Press and hold the release button (Fig. 19).
3. While firmly holding the upper shaft housing, pull
the cutting attachment or add-on straight out of the
EZ-Link TM coupler (Fig. 20).
_IWARNING: T° avoid serious pers°nal injury I
and damage to the unit, shut offthe unit
before remov ng or nsta ng add-ons.
Installing the Cutting Attachment or Add-On
NOTE: Place the unit on the ground or on a work bench
to make add-on installation or removal easier.
1. Turn knob counterclockwise to loosen (Fig. 20).
EZ'LinkTMC°upler Release Button
\
GuideRecess
Fig. 19
2. While firmly holding the add-on, push it straight into
the EZ-Link TM coupler (Fig. 20).
NOTE: Aligning the release button with the guide recess
will help installation (Fig. 19).
Release Button
EZ-LinkTMCoupler Hole
Upper Shaft Hous ng Lower Shaft Housing
Fig. 20
3. Turn the knob clockwise to tighten (Fig. 21).
CAUTION: Lock the release button in the
primary hole and securely tighten the knob
before operat ng th sun t
90" Edging Hole _-
(Trimmer Only)
180"EdgingHole
(Trimmer Only)
Fig. 21
CAUTION: The cutting attachment and add-
ons with the EZ-LinkTM system are to be used i_
[he primary hole unless stated otherwise in the
specific add-ons operator's manual. Using the
wrong hole could lead to personal injury or
damage to the unit.
For edging (when using the line head cutting attachment
wtth EZ-Link TM models_ ock the release button of the
cuttmg attachment into the 90 ° edging hole or the 180°
edging hole (Fig. 21).
13
