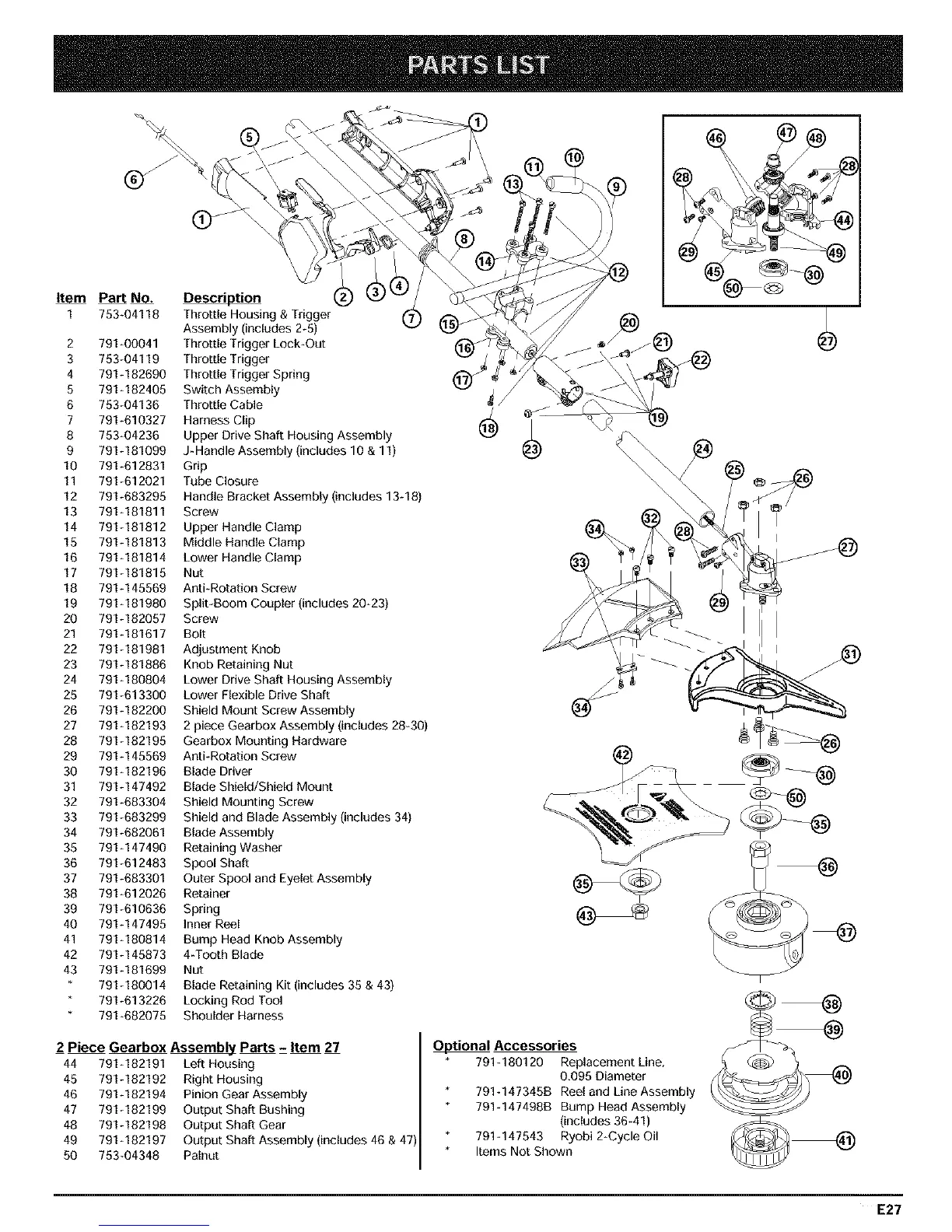

Troy-Bilt TB90BC - Page 27

®
Item Part NO. Descri#tion
1 753*04118 Throttle Housing & Trigger
Assembly (includes 2*5)
2 791-00041 Throttle Trigger Lock*Out
3 753*04119 ThrotBe Trigger
4 791-182690 Throttle Trigger Spring
5 791-182405 Switch Assembly
6 753*04136 ThrotBe Cable
7 791-610327 Harness Clip
8 753*04236 Upper Drive Shaft Housing Assembly
9 791-181099 J-Handle Assembly (includes 10 & 11)
10 791-612831 Grip
11 791-612021 Tube Closure
12 791-683295 Handle Bracket Assembly (includes 13-18)
13 791-181811 Screw
14 791-181812 Upper Handle Clamp
15 791-181813 Middle Handle Clamp
16 791-181814 Lower Handle Clamp
17 791-181815 Nut
18 791-145569 AntFRotation Screw
19 791-181980 Split-Boom Coupler (includes 20*23)
20 791-182057 Screw
21 791-181617 Bolt
22 791-181981 Adjustment Knob
23 791-181886 Knob Retaining Nut
24 791-180804 Lower Drive Shaft Housing Assembly
25 791-613300 Lower Flexible Drive Shaft
26 791 *182200 Shield Mount Screw Assembly
27 791-182193 2 piece Gearbox Assembly (includes 28-30)
28 791-182195 Gearbox Mounting Hardware
29 791-145569 AntFRotation Screw
30 791-182196 Blade Driver
31 791-147492 Blade Shield/Shield Mount
32 791 *683304 Shield Mounting Screw
33 791 *683299 Shield and Blade Assembly (includes 34)
34 791 *682061 Blade Assembly
35 791-147490 Retaining Washer
36 791-612483 Spool Shaft
37 791 *683301 Outer Spool and Eyelet Assembly
38 791-612026 Retainer
39 791-610636 Spring
40 791-147495 Inner Reel
41 791-180814 Bump Head Knob Assembly
42 791-145873 4-Tooth Blade
43 791-181699 Nut
791-180014 Blade Retaining Kit (includes 35 & 43)
791-613226 Locking Rod Tool
791 *682075 Shoulder Harness
2 Piece Gearbox Assembl_ Parts - Item 27
44 791-182191 Left Housing
45 791-182192 Right Housing
46 791-182194 Pinion Gear Assembly
47 791-182199 Output Shaft Bushing
48 791-182198 Output Shaft Gear
49 791-182197 Output Shaft Assembly (includes 46 & 47)
50 753*04348 Palnut
®
Optional Accessories __
791-180120 Replacement Line,
0.095 Diameter
791-147345B Reel and Line Assembly
791q47498B Bump Head Assembly
(includes 36_41)
791q47543 Ryobi 2*Cycle Oil
Items Not Shown
