TRS D Series User Manual

As it has been said before, for installing discrepancy switch on the panel, there is no need to separate the On-Off knob.
However, in case of checking the LED pilot lamp, the On-Off knob should be removed. For this purpose, take the upper and lower part of
the knob tightly, put pressure on the upper part, and pull out the knob toward yourself with 45°angle to the bottom, and separate the knob
from the switch.
For putting back the On-Off knob to the discrepancy switch, rst it is necessary to notice the two grooves with two sizes in front of each
other on the steel ring around the plastic plate. Also, there are two bumps with two sizes on knob's surface body. To put the on-off knob
back in its place, the grooves and bumps should be aligned together and respectively put into each other.
In case of need for changing the LED pilot lamp,
the switch operating mechanism should be opened
compeletly and lamp would be replaced.

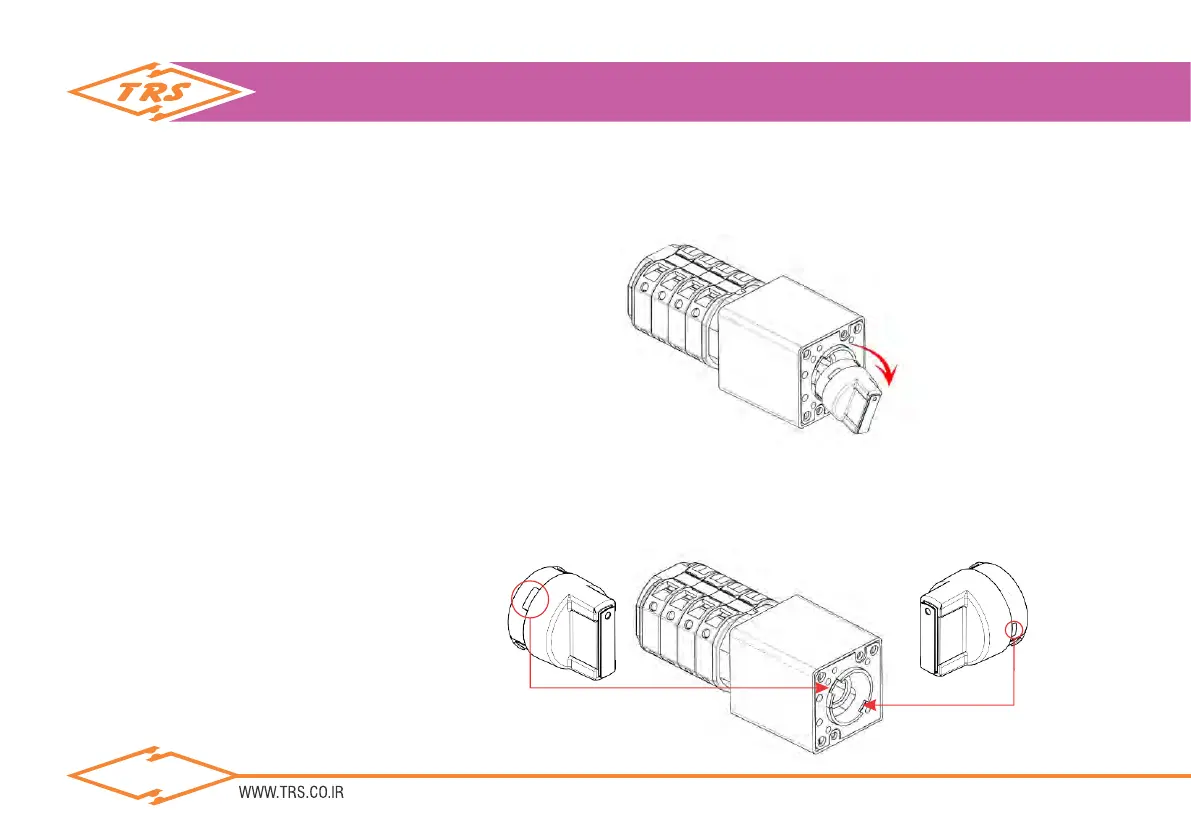

How to remove the discerpancy switch knob and put it back?
