6
II. Cooktop Installation Continued...
Clearance Needed for Air Circulation

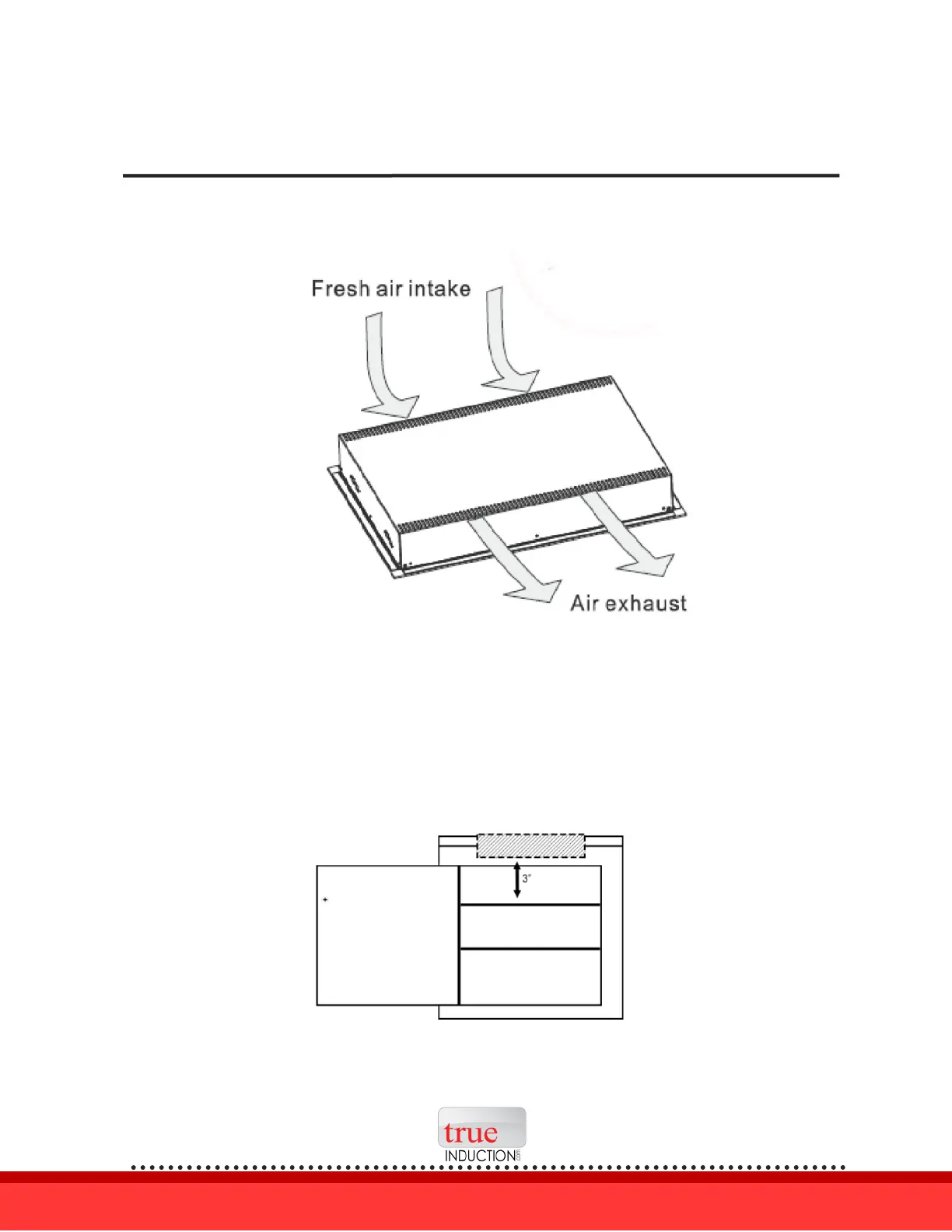

Below you will see a diagram of the air ow. Be sure not to block either the intake or exhaust
For proper air circulation, allow at least 3" of clearance from the bottom of the induction
cooker to any shelving or storage. The underside of the countertop should not be closed o
from the cabinetry underneath for better air ow.
TRIPLE BURNER INDUCTION COOKTOP MANUAL P.4
