Item number: 9534
Back Support Plate Assembly:
A. Remove all parts from carton and separate them into part number groups as indicated in the Parts List.
B. To begin assembly, place the 5 star base (2) upside down and insert the casters (1) into bottom of the base (2).
C. Turn the base (2) right side up on the floor and insert the gas lift (4) into center hole on the base (2).
D. Place the telescoping cover (3) over the gas lift (4) and rest it on the base (2).
E. Tighten the arms (6A & 6B) onto the bottom of seat cushion (7) by using 1” screws (12) and tighten the screws.
F. Attach the seat plate (5) to the bottom of the seat cushion (7) (with front of seat plate facing front of seat cushion) by
using 7/8" screws (11) and tighten screws.

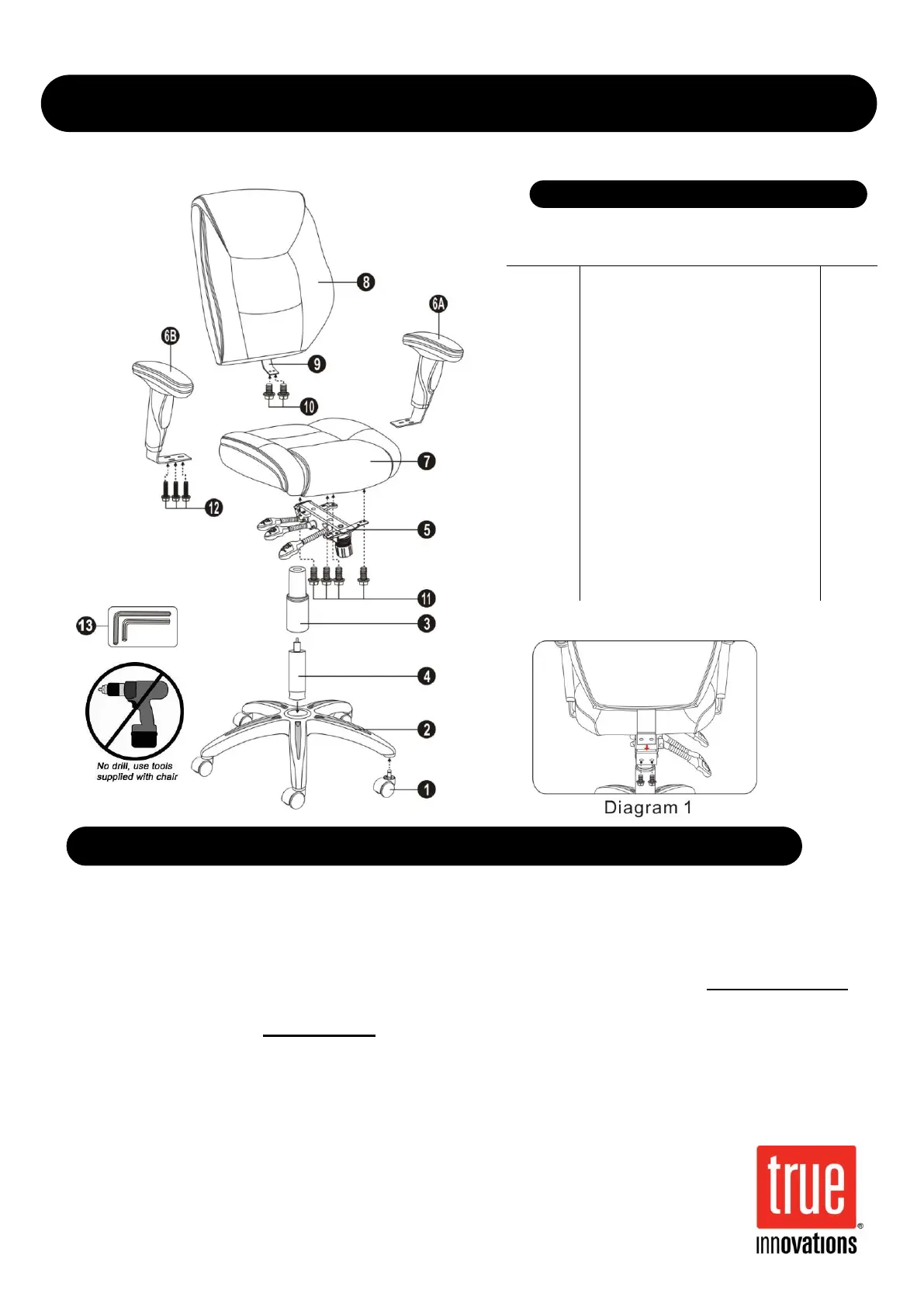

G. Align back cushion (8) with seat cushion (7) by inserting back support plate (9) into the rear hole of the seat plate (5)
as shown in Diagram 1 and tighten by using 5/8” screws (10).
H. Place the assembled chair on top of gas lift (4) and press down until fully engaged.
I. Periodically (every 90 days) tighten all screws in the chair.
ATTENTION: Make certain all screws are fully tightened before using chair.
1.
2.
3.
4.
5.
6A.
6B.
7.
8.
9.
10.
11.
12.
13.
Casters
5 Star Base
Telescoping Cover
Gas Lift
Seat Plate
Left Arm
Right Arm
Seat Cushion
Back Cushion
Back Support Plate (already
attached to the back cushion
5/8” Screws
7/8” Screws
1” Screws
Wrenches
5
1
1
1
1
1
1
1
1
1
2
4
6
2
A S S E M B L Y I N S T R U C T I O N S
