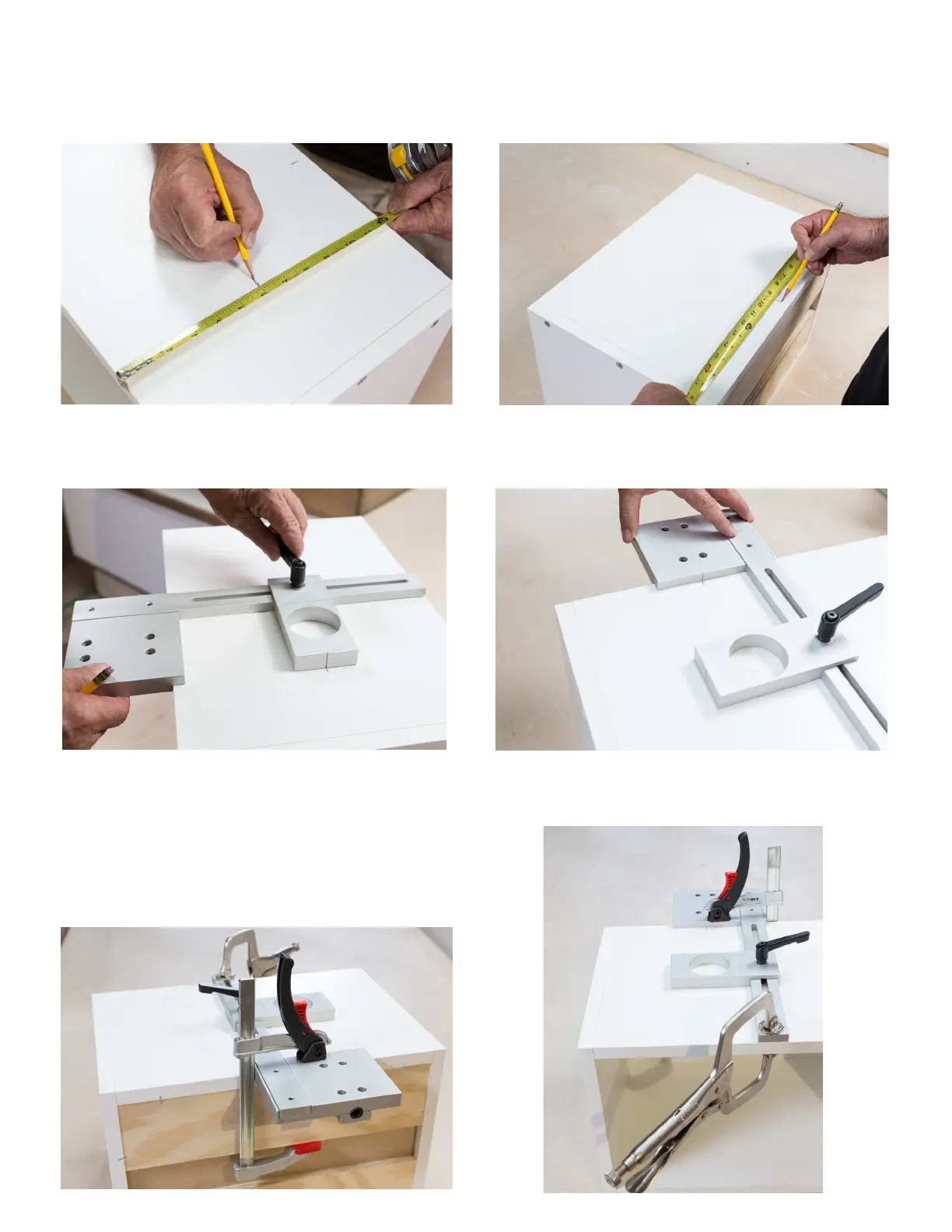

Locate & mark desired side to side location
of puck light at the back of cabinet. Make the mark
long enough to reach index on the lip of drill jig.
Locate & mark desired front to back location
of puck light.
(i.e. centered on depth of cabinet)
Place jig on cabinet and adjust forstner guide
to align with pencil mark of desired puck light location.
Tighten and secure the lever lock.
Slide jig along width of cabinet to align with
pencil mark of desired puck light location.
Clamp drill guide securely to back of cabinet on your pencil mark.
Use a clamp that will not allow jig to move during drilling operations.
Clamp to nailer (cabinet cleat) or from top to bottom of cabinet.
Clamp the front of jig (rail or Forstner guide) with a clamp
that will not allow jig to move during drilling operations.
Place your cabinet with bottom facing up.
