19
ITEM PART DESCRIPTION QTY
1 SPL-02-UPR200X UPRIGHT ASSEMBLY 1
2 SPL-02-MFR300X MAIN FRAME ASSEMBLY 1
3 SPL-02-BKT001 BRACKET 1
4 SPL-02-BKT002 SPACER 1
5 D2196A PIN, CLEVIS 8MM DIA 1
6 D2183 RETAINING RING 2
7 SD0183 PULLEY 114MM 3
8 SPL-02-CAM001 CAM 1
9 SPL-01-CAP201 CAP, CAM 1
10 SPL-02-CBL000 SUBASSEMBLY, CABLE SPL0200 1
11 SPL-00-CBL001 CABLE BLOCK 1
12 C1258 LPSHCS, 3/8”-16 X 1-3/4” E-COAT 2
13 C 766A LOCK NUT, 3/8”-16 X 17/64”, NYLON 2
14 C 754B WASHER, FLAT, 3/8” SAE, BLK 4
15 C 629A LPSHCS, 3/8”-16 X 2” E-COAT 1
16 C 749B LOCK WASHER, 3/8”, BLK ZP 6
17 C1259 LPSHCS, 3/8”-16 X 1-1/2” E-COAT 4
18 C1256 LPSHCS, 3/8”-16 X 1” E-COAT 1

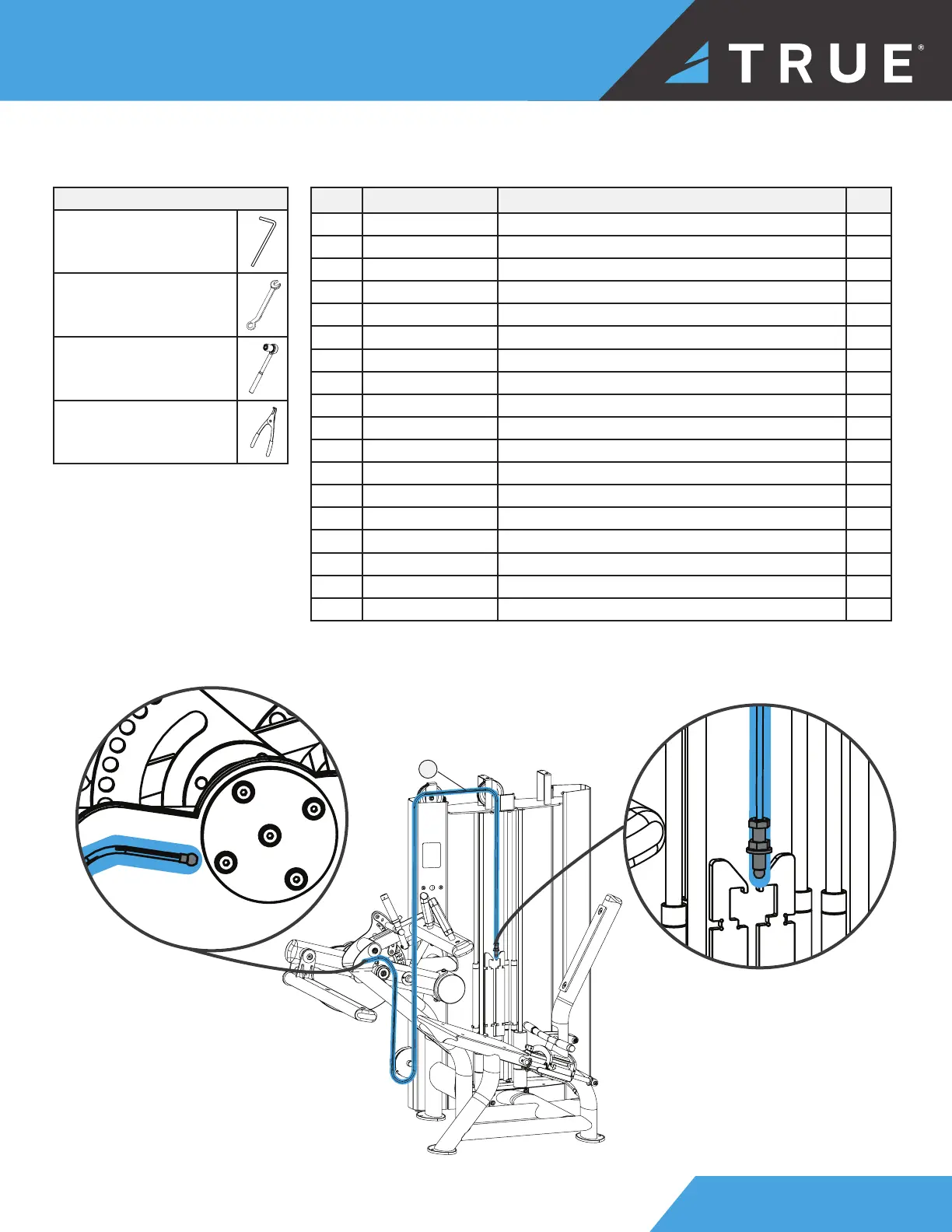

STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES
TOOLS NEEDED
Allen Wrench
Wrench
Socket Wrench
Retaining Ring Pliers
NOTE: The cable is routed through the upright assembly to the cam assembly. The left end of the cable goes to the cam
side while the right end goes to the weight stack side.
10
