STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED
15
16
3

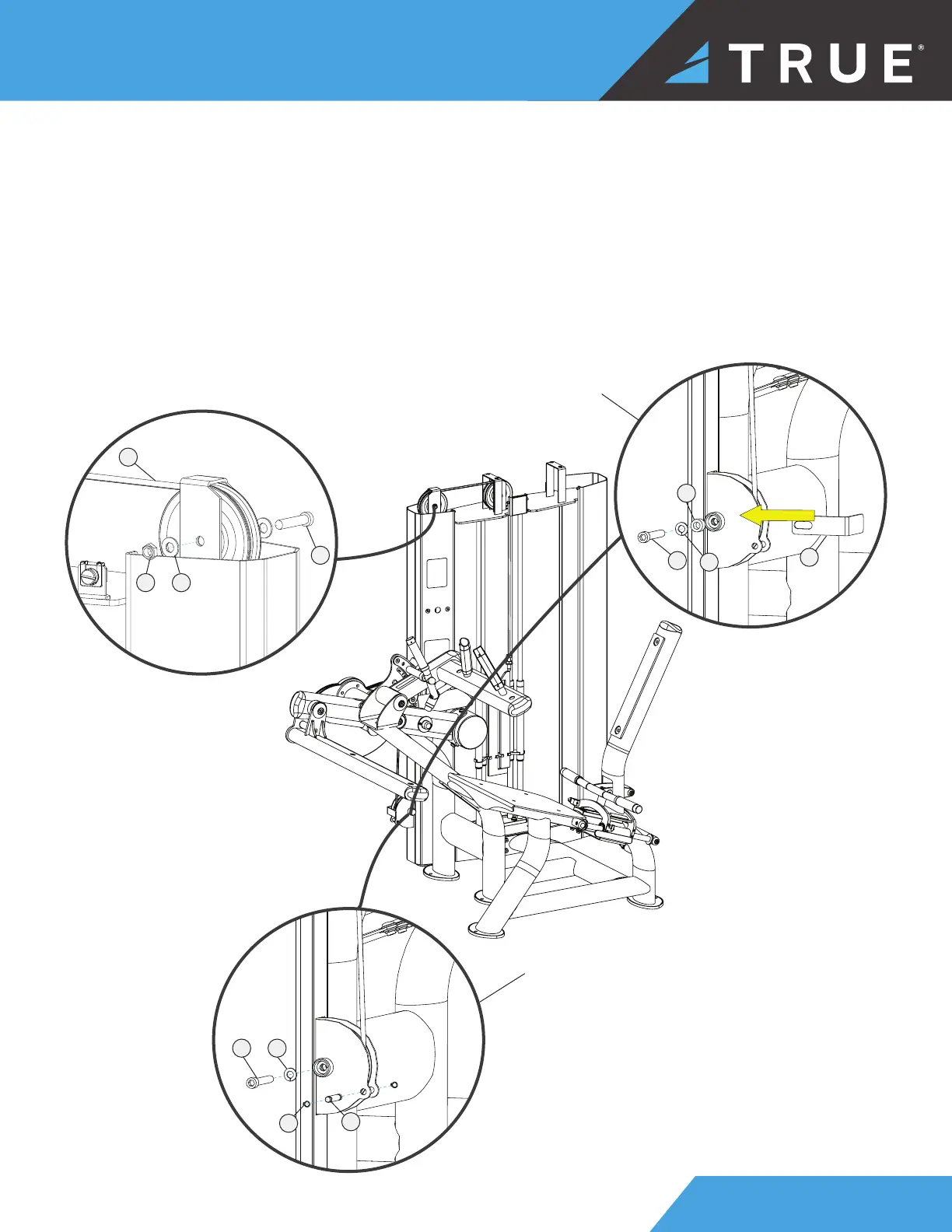

c. Route the cable through the top of the upright assembly and around the pulleys.
d. Using an allen wrench and a socket wrench or open end wrench, reattach the top upright pulleys using 2 hex screws,
4 fl at washers, and 2 lock nuts.
e. Route the cable through the lower opening of the upright assembly and around the pulley.
f. Using an allen wrench, reattach the Generation 1 lower upright pulley, bracket, and spacer using 1 hex screw and 1
lock washer. Using an allen wrench, reattach the Generation 2 upright pulley using 1 hex screw and 1 lock washer.
Using retaining ring pliers, reattach the clevis pin and 2 retaining rings onto the Generation 2 pulley housing.
14
13
12
10
4
15 16
5
6
Generation
1
Generation
2
