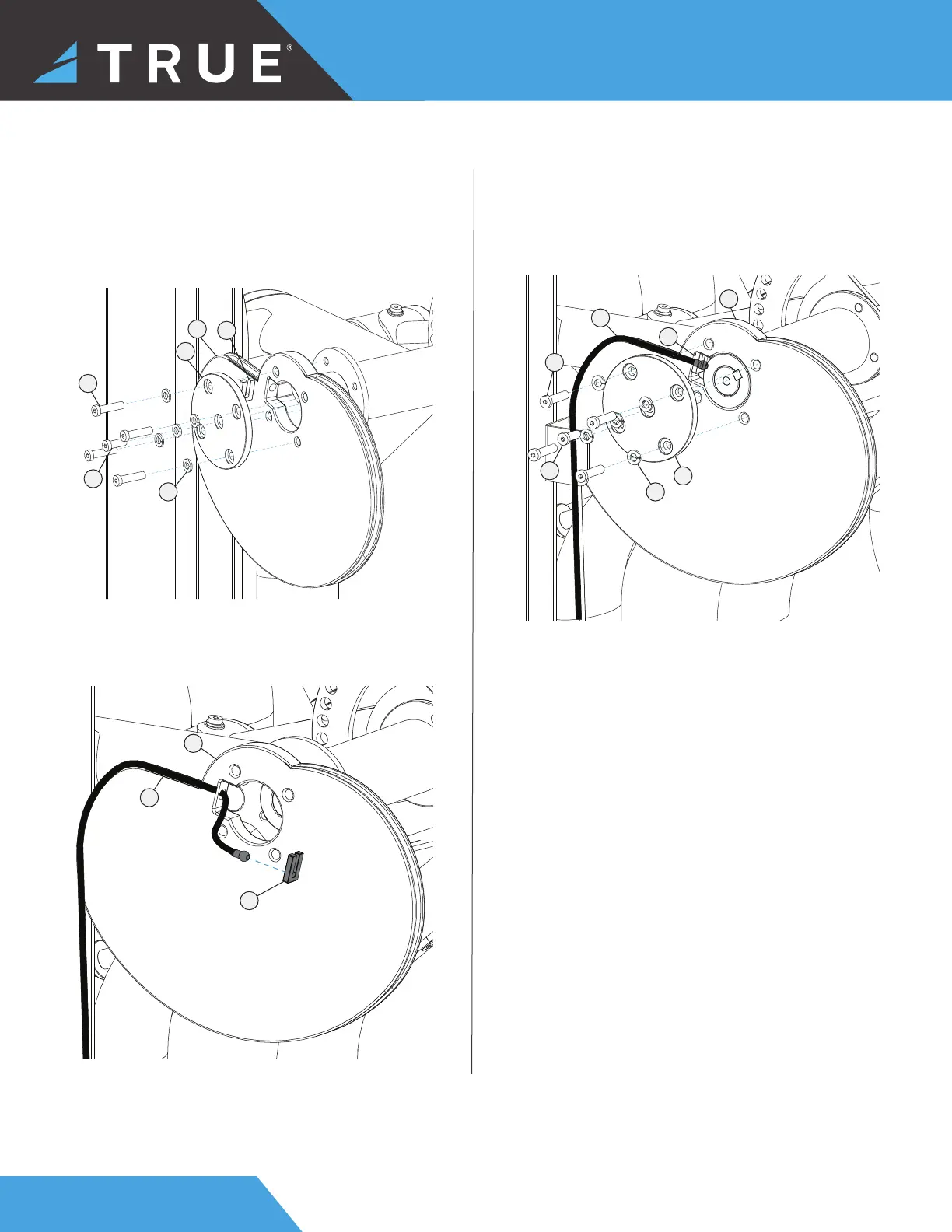

STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED
g. Using an allen wrench, remove and set aside
the cam assembly and cable block using 4
hex screws, 5 lock washers, and 1 shorter hex
screw.
8
9
16
17
18
18
17
8
16
9
h. Route the cable around and through the cam
assembly and secure it to the cable block.
i. Using an allen wrench, reattach the cam
assembly using 4 hex screws, 5 lock washers,
and 1 shorter hex screw.
8
10
11
11
10
11
