True TWT-48F User Manual

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl. Fax# (001)636-272-7546 • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

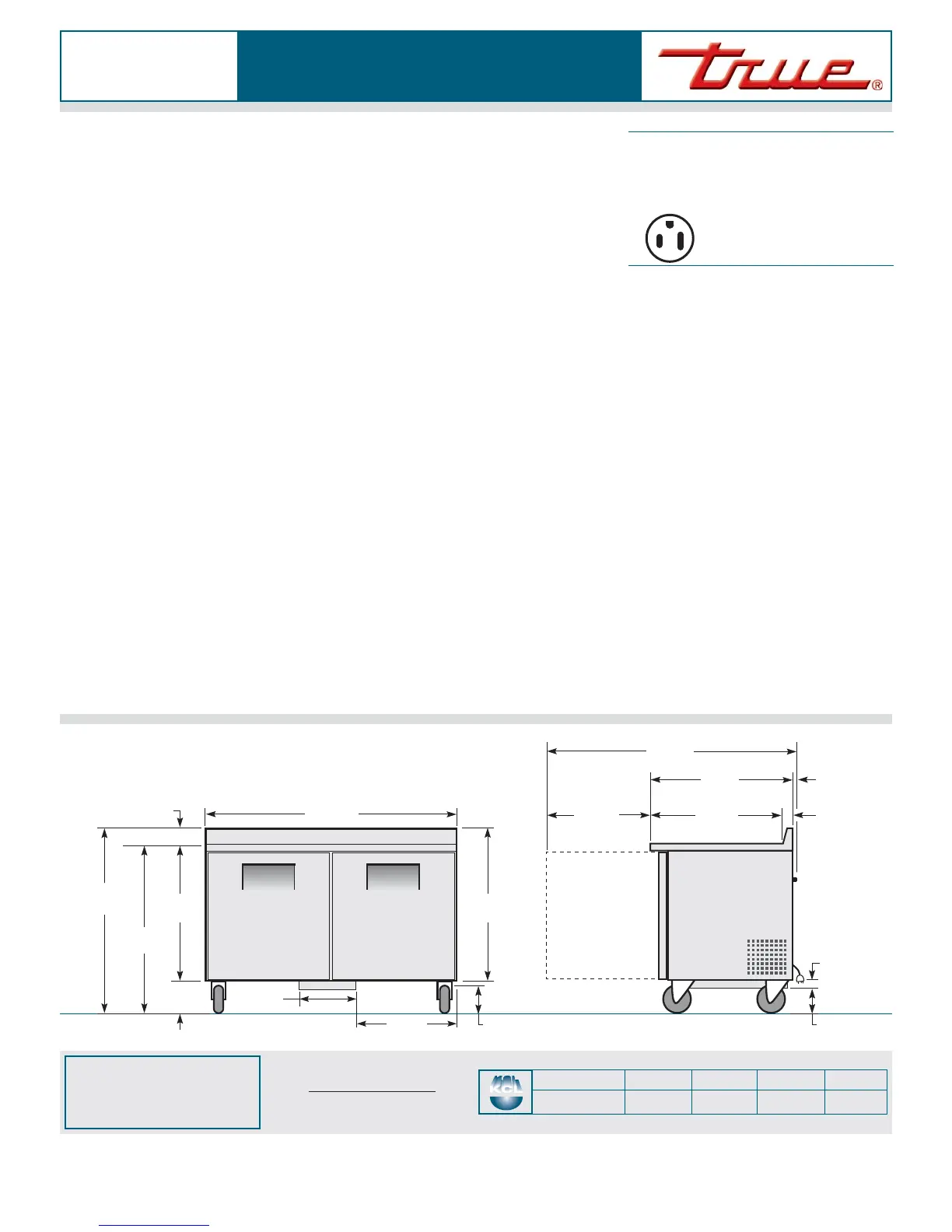

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TWT-48F TFPY02E TFPY02S TFPY02P TFPY023
TWT-48F
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user with
colder product temperatures, lower utility
costs, exceptional food safety and the best
value in today’s food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using environmentally
friendly (CFC free) R404A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airfl ow to provide
uniform product temperatures.
• Extra large evaporator coil balanced
with higher horsepower compressor and
large condenser; maintains -10°F
(-23.3°C). Ideal for both frozen foods
and ice cream.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True worktop units a more
effi cient low velocity, high volume
airfl ow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food
service environments.
• Condensing unit access in back of
cabinet, slides out for easy maintenance.
• Automatic defrost system time-initiated,
time-terminated.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
ends. Matching aluminum fi nished
back. Top and backsplash are one piece
formed construction.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless fl oor
with coved corners.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• 5" (127 mm) diameter stem castors -
locks provided on front set. 36"
(915 mm) work surface height.
DOORS
• Stainless steel exterior with white
aluminum liner to match cabinet interior.
• Positive seal self-closing doors with 90°
stay open feature. Doors swing within
cabinet dimensions.
• Each door fi tted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty PVC
coated wire shelves 21
9
/16"L x 16"D
(548 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on
1
/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) siesmic/fl anged legs.
❒ 2
1
/2" (64 mm) diameter castors.
❒ Basic overshelf.
❒ Sandwich/salad service shelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 28
1
/4" (718 mm) deep,
1
/2" (13 mm)
thick, white polyethylene cutting board.
Requires “L” brackets.
❒ 28
1
/4" (718 mm) deep,
1
/2" (13 mm)
thick, composite cutting board.
Requires “L” brackets.
❒ Additional shelves.
❒ Heavy duty, 16 gauge tops.
❒ Exterior rectangular digital temperature
display (factory installed).
❒ ADA compliant models with 34"
(864 mm) work surface height.
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant). Consult
factory technical service department for
BTU information.
115/60/1
NEMA-5-15R
ELEVATION
RIGHT VIEW
Worktop:
Solid Door Freezer
3
9
/16"
(91 mm)
12
5
/8"
(321 mm)
19
5
/8"
(499 mm)
48
5
/16"
(1228 mm)
29
3
/4"
(756 mm)
39
1
/2"
(1004 mm)
6
3
/16"
(158 mm)
35
15
/16"
(913 mm)
30
1
/16"
(764 mm)
52
17
/32"
(1335 mm)
2
5
/16"
(59 mm)
21
15
/32"
(546 mm)
28
3
/32"
(714 mm)
1"
(26 mm)
3
7
/8"
(99 mm)
33
5
/16"
(847 mm)
5"
(127 mm)
1
31
/32"
(50 mm)

True TWT-48F Specifications

General

Brand	True
Model	TWT-48F
Category	Freezer
Language	English
