Trueway TX1000 Series - Specification; Ordering Part Numbers

W
G

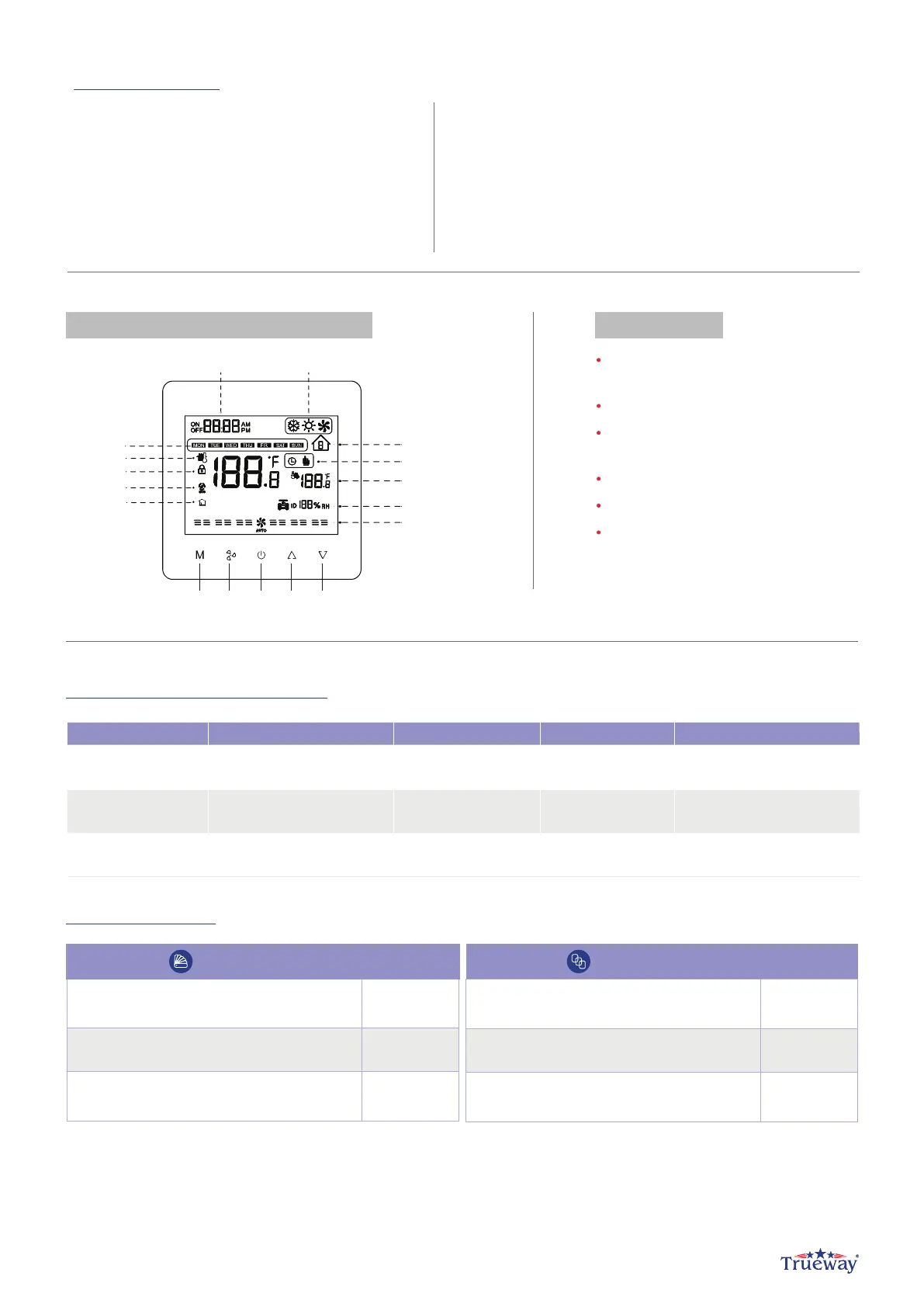

CAPACITIVE TOUCH SERIES
LCD DISPLAY & KEYS DESCRIPTION
FUNCTION
2-pipe FCU cooling&heating,
Simple on-o output.
3 Speed Fan + Auto Fan Control
Energy Save Mode and
Comfort Mode Settings
7 Days 6 Periods Programmable Function
Key Pad Lock
Both Room and Set-Point Display
SPECIFICATION
♦ Power Supply: 85-240VAC / 24VAC• Frequency: 50~60Hz
♦ Function: Cooling/Heating
♦ Relay Life: 220±10% VAC, 3(5)A, 100,000 times
♦ Wiring Max: 16AWG
♦ Sensing Element: 10K(@25°C) NTC
♦ Display Accuracy: 1°C, Set-point accuracy: 1°C/step
♦ Set-point range: 10-32°C(50-90°F) • Display range: 0-50°C
♦ Protection Glass: IP 20 • Operation Temperature: -18~49°C
♦ Shipping Temperature: -35~65°C • Suitable System: 2-pipe
FCU cooling&heating, simple on-o valve or compressor.
♦ Suitable Valve: 2-line/3-line valve • Relative Humidity: 10~90%
♦ Installed on 75mm x 75mm box
ORDERING PART NUMBERS
TX1000 OF220-V21CE 85-240VAC 2-PIPE/ SINGLE STAGE
2-PIPE/ SINGLE STAGE
2-PIPE/ SINGLE STAGE
ON-OFF VALVE /
COMPRESSOR
ON-OFF VALVE /
COMPRESSOR
ON-OFF VALVE /
COMPRESSOR
EXTERNAL SENSOR
TX1000 OF220-V21CK 85-240VAC HOTEL KEYCARD
TX1000OF024-V2 1C
-
24VAC N/A
PART NUMBERS OPERATING VOLTAGES APPLICATIONS VALVE TYPE ADDON FUNCTIONS
ABBREVIATION
CASING/COVER COLOR
BACKLIGHT COLOR
WHITE
GREY
BLACK B
*ordering example TX1000OF024--V21C-WSB
BW
WB
Sky Blue backlight + Black letters(TN LCD)
Black backlight + White letters (VA LCD)
White backlight + black letters (HTN
LCD)
SB
2
Mode Fan Power Up Down
Real Time Clock Cooling Heating & Ventilation
Periods
Room Temp.
Key lock
Weekdays
Program/Manual Mode
Set - point
Valve Open/Modbus ID
Fan Speed
Key Card
Occ upied
Energy Saving
Mode
