1 sensitivity control
sensitive setting for low density materials
(turn-on for fluffy / low density materials etc.)
(keep turned-off for normal density materials)
2 “dry” (or uncovered) delay (5 second delay) setting
(turn-on when 5 second more time is needed for
rod out of material confirmation)
3 “wet” (or covered) delay (5 second delay) setting
(turn-on when 5 second more time is needed for
rod dipped in the material confirmation)
4 minimum failsafe select
Failsafe means alarm is same as power failure.
Turn on for underflow detection (min. failsafe)
Keep turned off for overflow detection (max. failsafe)
configuration switches
OFF Position
ON Position
Example of Switch in On and Off Positions
1 (+) of DC Supply input
2 (-) of DC Supply input
DC Supply: 12 to 60VDC
3 Earth terminal for safety
4,5,6,7,8,9 Not used

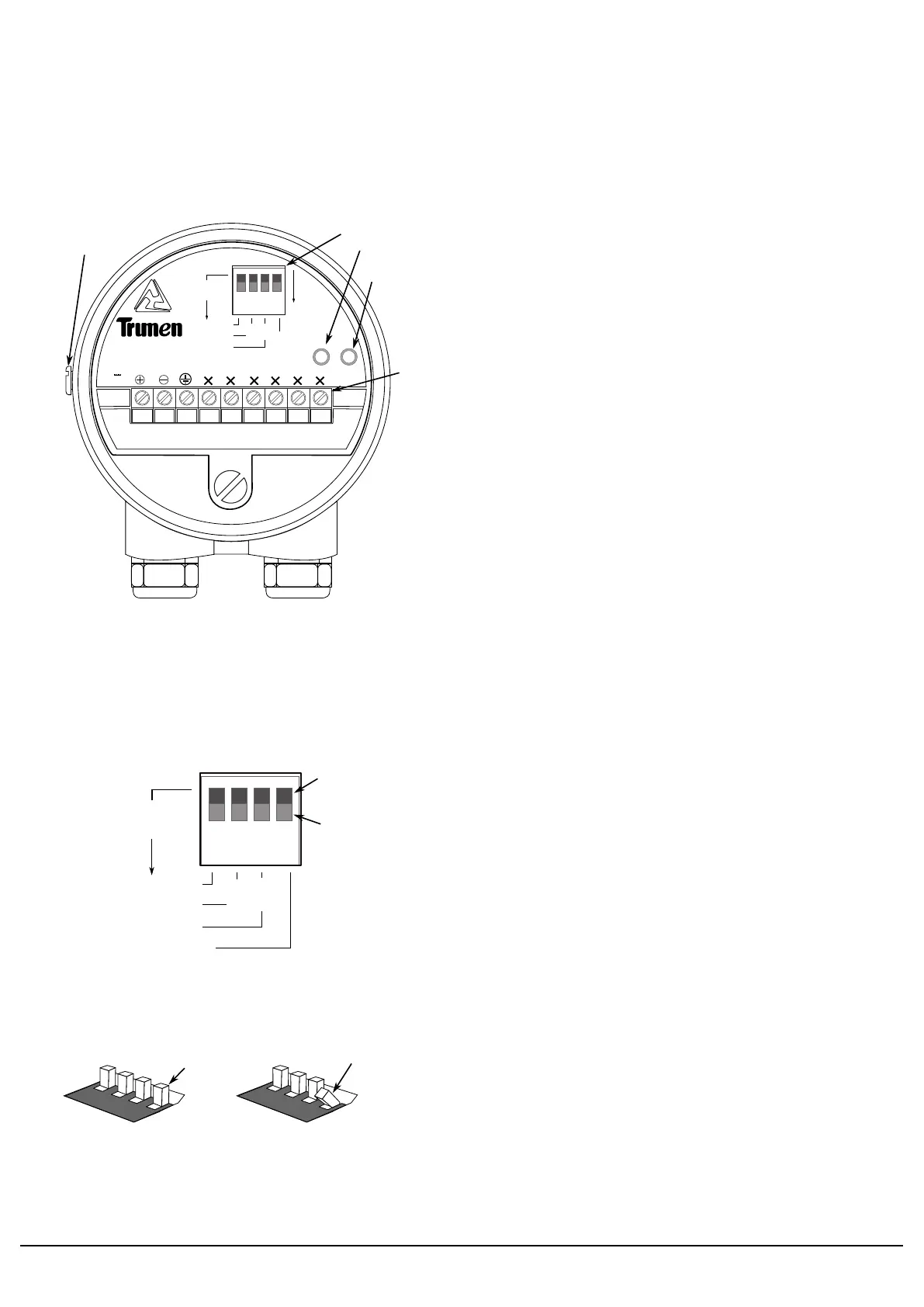

A Alarm Indicating LED
B Configuration Switches
C Power ON LED Indicator
D Connecting Terminals
E External Earthing Terminal
controls & indicators
connection terminals
sensitive
dry delay
wet delay
min failsafe
to set
turn-on
LSVR-DL-8/16
5 sec
ON Position
OFF Position
lsvr-manual-annexure-5 www.trumen.in
Annexure-5
Introduction - LSVR-DL (EIDL)
8/16 mA Output
Page 1
sensitive
dry delay
wet delay
min
failsafe
to set
turn-on
LSVR-DL-8/16
5 sec
alarm
power
U
12 to 60V DC
1 2 3 4 5 6 7 8 9
D
B
C
A
E
ON
Loop powered
8mA ± 1mA (alarm)
16mA ± 1mA (normal)
