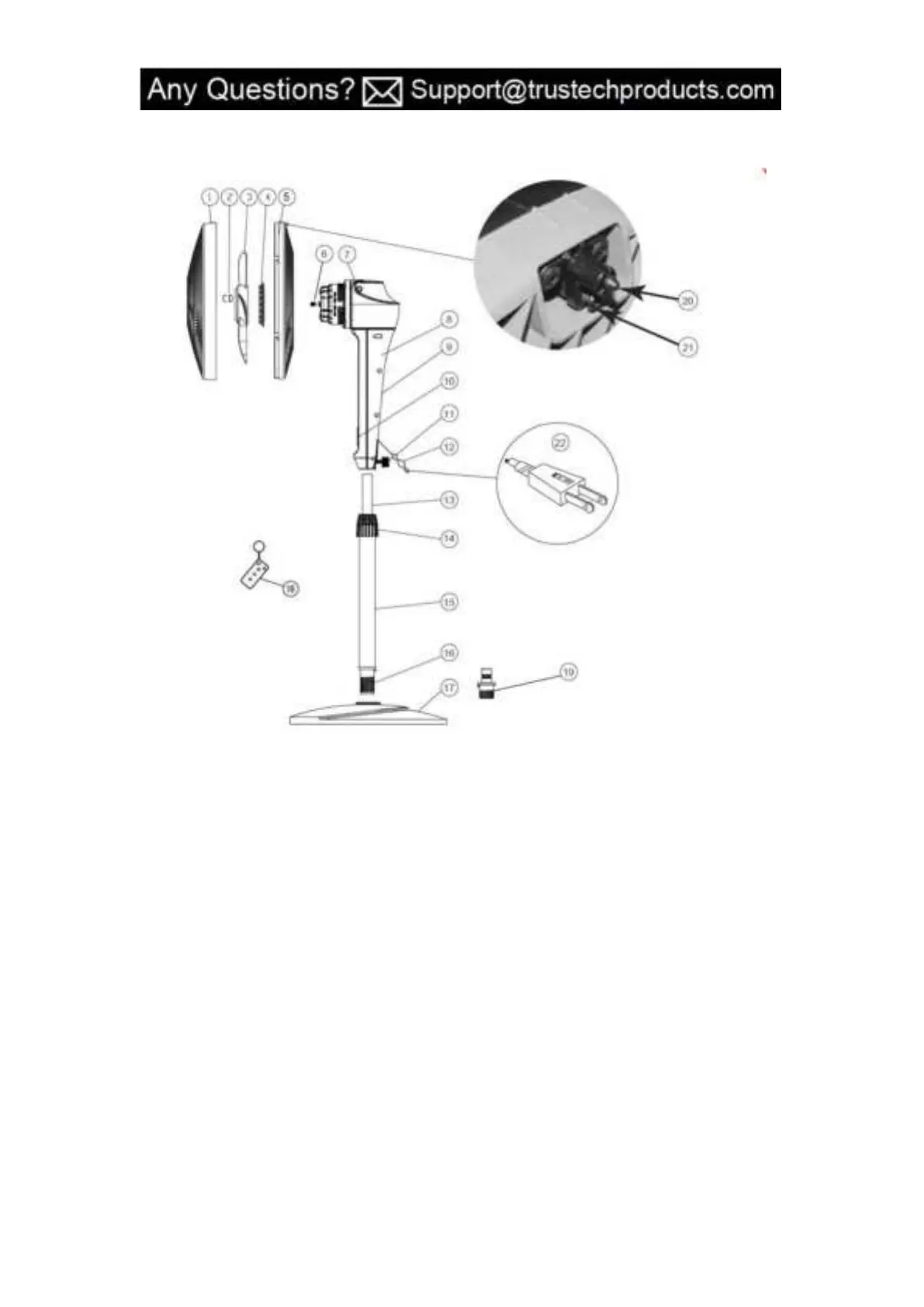

Fig.1
1. Front grille
2. Metal nut
3. Fan blade
4. Plastic nut
5. Rear grille with handle
6. motor shaft
7. Motor housing
8. Upper column
9. Remote holder
10. Control panel
11. Upper column knob
12. Power cord
13. Adjustable column (for pedestal fan)
14. Height adjustment locking nut (for pedestal fan)
15. Lower column (for pedestal fan)
16. Adapter
