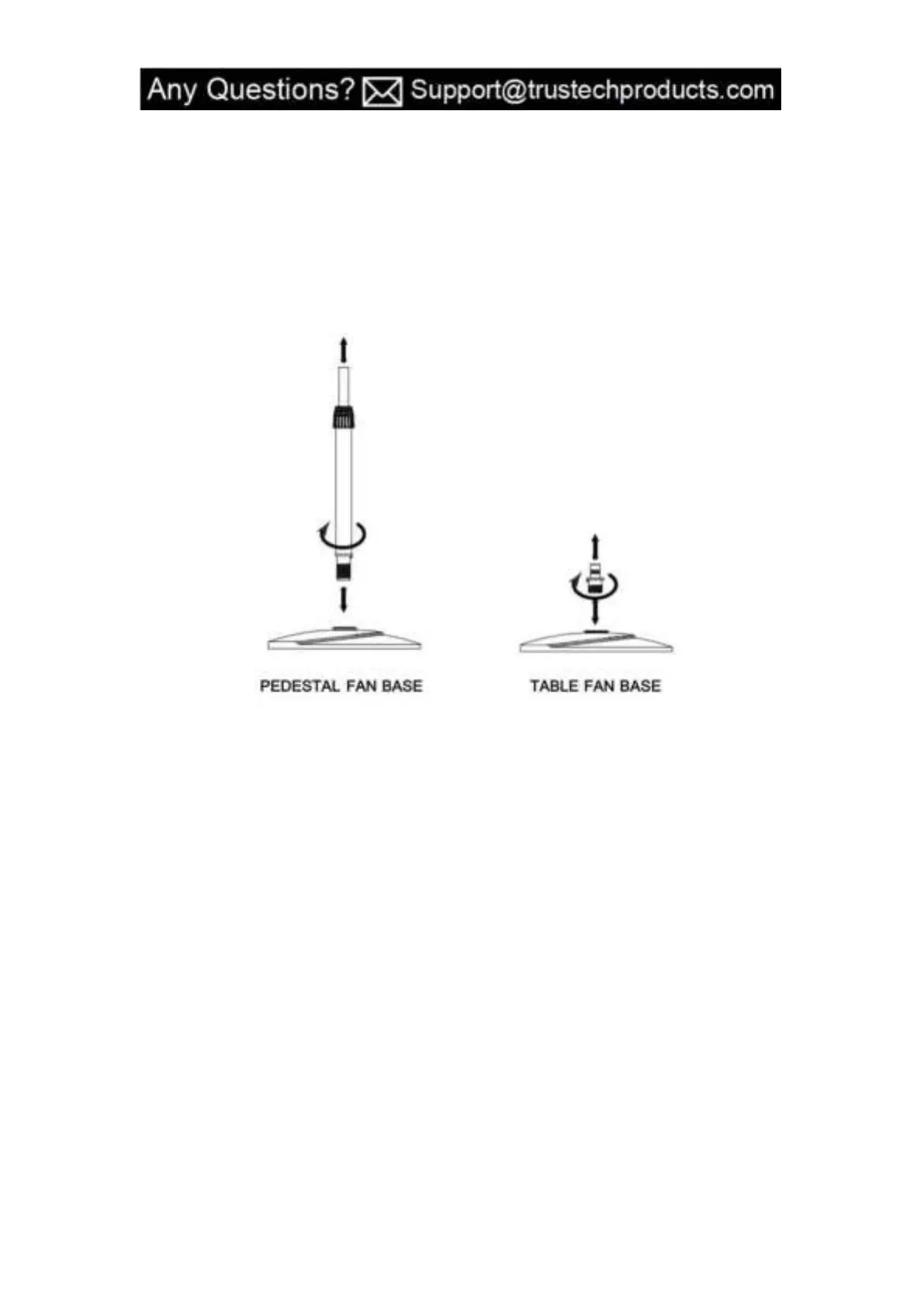

ASSEMBLY OF BASE（Parts #8.#11.#13-17）
For Pedestal Fan
1. Remove parts from packaging. Set the fan base (#17) on the floor. Insert lower column
with adaptor (#16) into the base and secure them by turning the lower column clockwise.
2. Loosen the height adjustment locking nut (#14) and pull up the adjustable column (#13);
to the desired height and re-tighten the height adjustment locking nut (#14).
3. Place the upper column (#8) on top of the adjustable column (#13). Tighten the upper
column knob (#11).
For Table Fan
1. Set the fan base (#17) on the table, insert the connecting adapter (#19) into the base and
secure them by turning the connecting adapter (#19) clockwise.
2. Place the upper column (#8) on top of the connecting adapter (#19). Tighten the upper
column knob (#11).
